Akai AX60 Service Manual

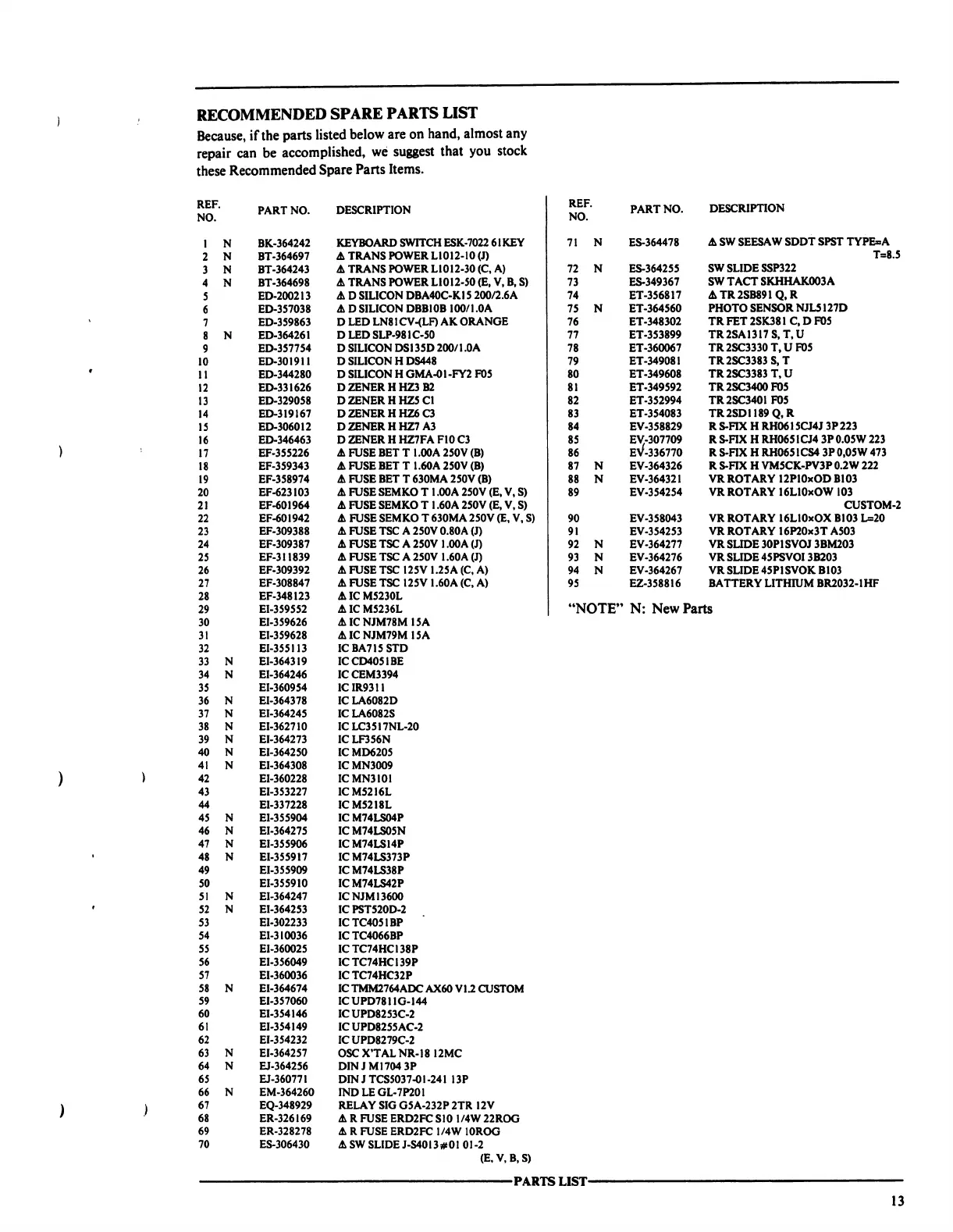

RECOMMENDED SPARE PARTS LIST
Because, if the parts listed below are on hand, almost any
repair can be accomplished, we suggest that you stock
these Recommended Spare Parts Items.
N
N
N
N
REF.
NO.
1
2
3
4
5
6
7
8 N
9
10
11
12
13
14
IS
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33 N
34 N
35
36 N
37 N
38 N
39 N
40 N
41 N
42
43
44
45 N
46 N
47 N
48 N
49
50
51 N
52 N
53
54
55
56
57
58 N
59
60
61
62
63 N
64 N
65
66 N
67
68
69
70
PART NO. DESCRIPTION
BK-364242 KEYBOARD SWITCH ESK-7022 61KEY
BT-364697 A TRANS POWER L1012-10 (J)
BT-364243 A TRANS POWER L1012-30 (C, A)
BT-364698 A TRANS POWER L1O12-5O (E, V, B, S)
ED-200213 AD SILICON DBA40C-K15 200/2.6A
ED-357038 A D SILICON DBB10B 100/1.0A
ED-359863 D LED LN81 CV-(LF) AK ORANGE
ED-364261 D LED SLP-981C-50
ED-357754 D SILICON DS135D 200/1.0A
ED-301911 D SILICON H DS448
ED-344280 D SILICON H GMA-01-FY2 F05
ED-331626 D ZENER H HZ3 B2
ED-329058 D ZENER H HZ5 Cl
ED-319167 D ZENER HHZ6C3
ED-306012 D ZENER HHZ7 A3
ED-346463 D ZENER H HZ7FA F10 C3
EF-355226 A FUSE BET T 1.00A 250V (B)
EF-359343 A FUSE BET T 1.60A 250V (B)
EF-358974 A FUSE BET T 630MA 250V (B)
EF-623103 A FUSE SEMKO T 1.00A 250V (E, V, S)
EF-601964 A FUSE SEMKO T 1.60A 250V (E, V, S)
EF-601942 A FUSE SEMKO T 630MA 250V (E, V, S)
EF-309388 A FUSE TSC A 250V 0.80A (J)
EF-309387 A FUSE TSC A 250V 1.00A (J)
EF-311839 A FUSE TSC A 250V 1.60A (J)
EF-309392 A FUSE TSC 125V 1.25A (C, A)
EF-308847 A FUSE TSC 125V 1.60A (C, A)
EF-348123 AICM523OL
EI-359552 AIC M5236L
EI-359626 A IC NJM78M 15A
EI-359628 A IC NJM79M 15A
EI-355113 ICBA715STD
EI-364319 ICCD4051BE
EI-364246 ICCEM3394
EI-360954 1C1R9311
EI-364378 IC LA6082D
EI-364245 IC LA6082S
EI-362710 ICLC3517NL-20
EI-364273 IC LF356N
EI-364250 ICMD6205
EI-364308 IC MN3009
EI-360228 ICMN3101
EI-353227 ICM5216L
EI-337228 ICM5218L
El-355904 IC M74LS04P
EI-364275 ICM74LS05N
EI-355906 ICM74LS14P
EI-355917 ICM74LS373P
EI-355909 ICM74LS38P
EI-3559I0 ICM74LS42P
EI-364247 ICNJM13600
EI-364253 ICPST520D-2
EI-302233 ICTC4051BP
EI-310036 ICTC4066BP
EI-360025 IC TC74HC138P
EI-356049 IC TC74HC139P
EI-360036 ICTC74HC32P
EI-364674 IC TMM2764ADC AX60 V1.2 CUSTOM
EI-357060 ICUPD7811G-144
EI-354146 IC UPD8253C-2
EI-354149 IC UPD8255AC-2
EI-354232 ICUPD8279C-2
EI-364257 OSC X'TAL NR-18 12MC
EJ-364256 DINJM1704 3P
EJ-360771 DIN J TCS5O37-OI -241 13P
EM-364260 IND LE GL-7P201
EQ-348929 RELAY SIG G5A-232P 2TR 12V
ER-326169 A R FUSE ERD2FC S10 1/4W 22ROG
ER-328278 A R FUSE ERD2FC 1/4W 10ROG
ES-306430 A SW SLIDE J-S4OI3#O1 01-2
(E,V,B,S)
"NOTE" N: New Parts
-PARTS LIST-
13
