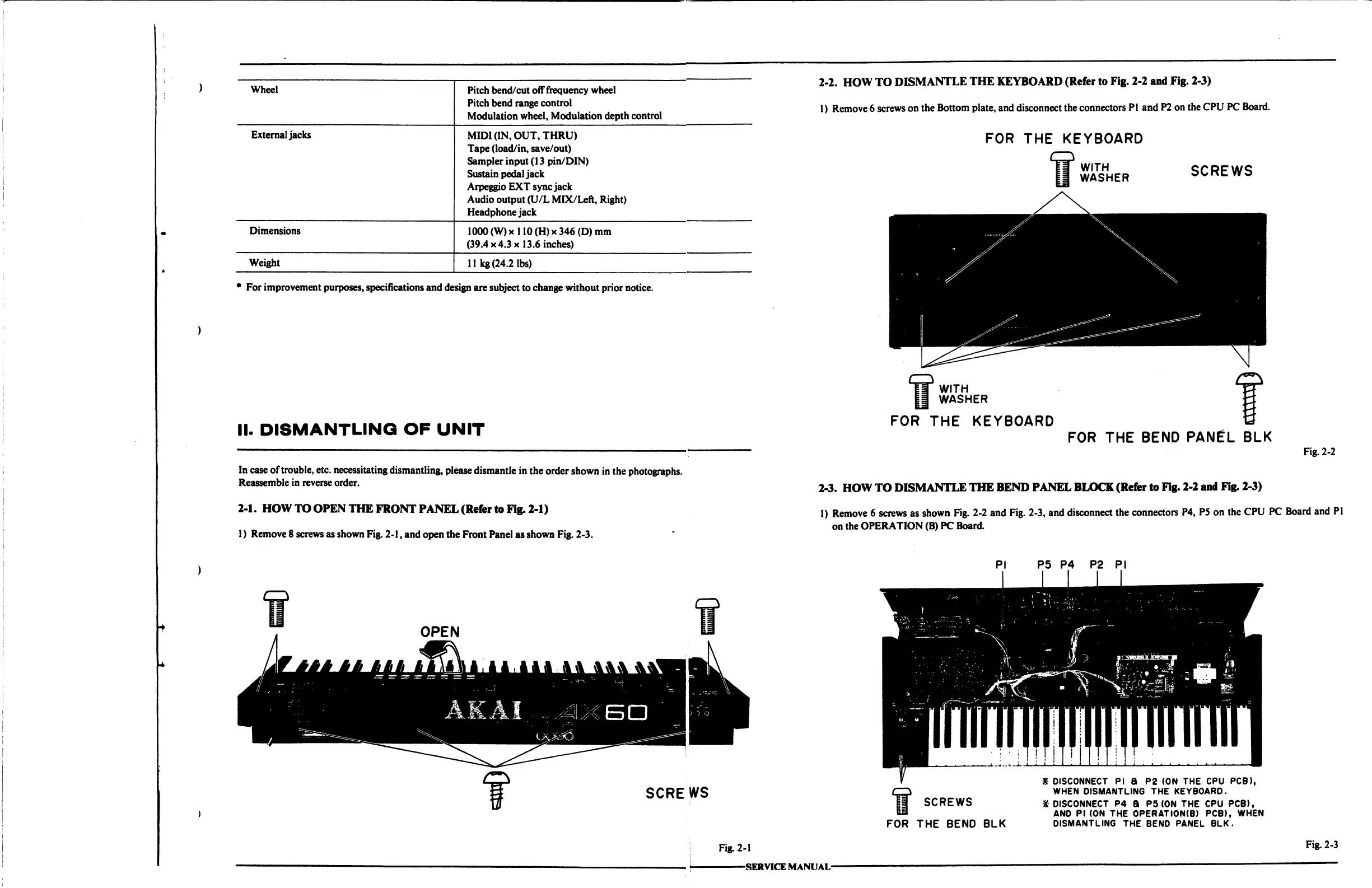

2-2.
HOW
TO
DISMANTLE
THE
KEYBOARD
(Refer
to
Fig.
2-2
and
Fig.
2-3)
1)
Remove
6
screws
on
the
Bottom
plate,
and
disconnect
the
connectors
PI
and
P2
on
the
CPU
PC
Board.
FOR
THE
KEYBOARD
SCREWS
*
For
improvement
purposes,
specifications
and
design
are
subject to
change
without
prior
notice.
II.
DISMANTLING
OF
UNIT
FOR
THE
KEYBOARD
FOR
THE
BEND
PANEL
BLK
In
case
of
trouble,
etc.
necessitating
dismantling,
please
dismantle
in
the
order
shown
in
the
photographs.
Reassemble
in
reverse
order.
2-1.
HOW
TO
OPEN
THE
FRONT
PANEL
(Refer
to Fig.
2-1)
1)
Remove
8 screws
as
shown
Fig.
2-1,
and
open
the
Front
Panel
as
shown
Fig.
2-3.
Fig.
2-2
2-3.
HOW
TO
DISMANTLE
THE
BEND
PANEL
BLOCK
(Refer
to
Fig.
2-2
and
Fig.
2-3)
1)
Remove
6
screws
as
shown
Fig.
2-2
and
Fig.
2-3,
and
disconnect
the
connectors
P4,
P5
on
the
CPU
PC
Board
and
PI
on
the
OPERATION
(B)
PC
Board.
PI
P5
P4
P2
PI
SCREWS
SCREWS
FOR
THE
BEND
BLK
DISCONNECT
PI
8
P2
(ON
THE
CPU
PCB),
WHEN
DISMANTLING
THE
KEYBOARD.
DISCONNECT
P4
8
P5
(ON
THE CPU
PCB),
AND
PI
(ON
THE
OPERATION(B)
PCB),
WHEN
DISMANTLING
THE
BEND
PANEL
BLK.
Fig.
2-1
SERVICE
MANUAL-
Fig.
2-3
