Akai AX80 Operator's Manual

ET

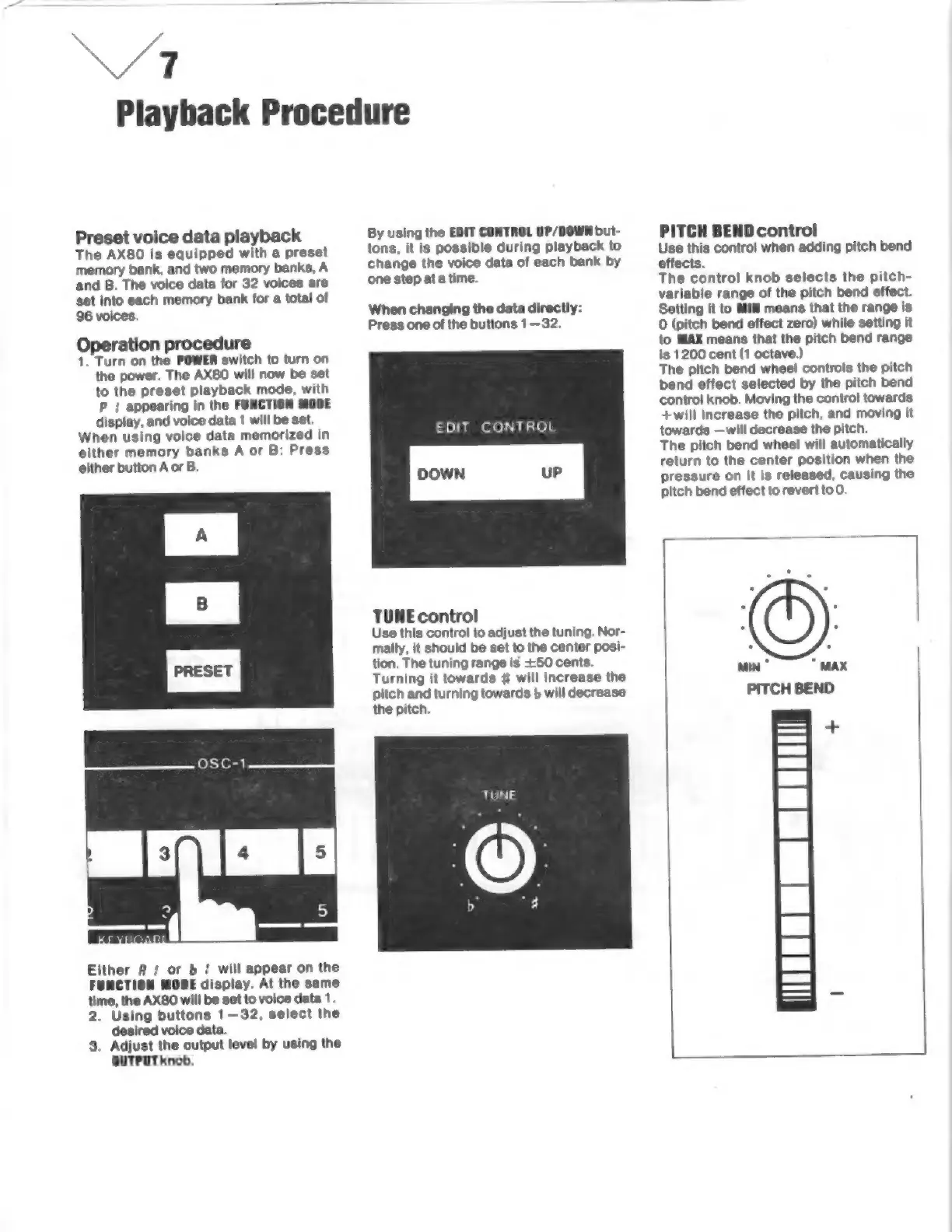

Playback Procedure
Preset voice data playback
The AX80 is equipped with a preset
memory bank, and two memory banks, A
and
B.
The
voice
data
for
32
voices
are
set
into
each
memory
bank
for
a
total
of
96 voices.
Operation procedure
1.
Turn
on
the
POWER
switch
to
turn
on
the
power.
The
AX80
will
now
be
set
to
the
preset
playback
mode,
with
P
|
appearing
in
the
FUNCTION
MODE
display,
and
voice
data
1
will
be
set.
When using voice data memorized in
either
memory
banks
A
or
B:
Press
either button A or B.
Either A ! or b ! will appear on the
FUNCTION
MODE
display.
At
the
same
time,
the
AX80
will
be
set
to
voice
data
1.
2.
Using
buttons
1—32,
select
the
desired
voice
data.
3.
Adjust
the
output
level
by
using
the
OUTPUT
knob.
By using the EDIT CONTROL UP/DOWN but-
tons, it is possible during playback to
change the voice data of each bank by
one step at a time.
When changing the data directly:
Press one of the buttons 1 —32.
EDIT CONTROL
TUNE control
Use this control to adjust the tuning. Nor-
mally, it should be set to the center posi-
tion. The tuning range is +50 cents.
Turning it towards £ will increase the
pitch and turning towards b will decrease
the pitch.
TUNE
PITCH BEND control
Use this control when adding pitch bend
effects.
The control knob selects the pitch-
variable range of the pitch bend effect.
Setting it to MIN means that the range is
О (pitch bend effect zero) while setting it
to MAX means that the pitch bend range
is 1200 cent (1 octave.)
The pitch bend wheel controls the pitch
bend effect selected by the pitch bend
control knob. Moving the control towards
+will increase the pitch, and moving it
towards —will decrease the pitch.
The pitch bend wheel will automatically
return to the center position when the
pressure on it is released, causing the
pitch bend effect to revert to O.
