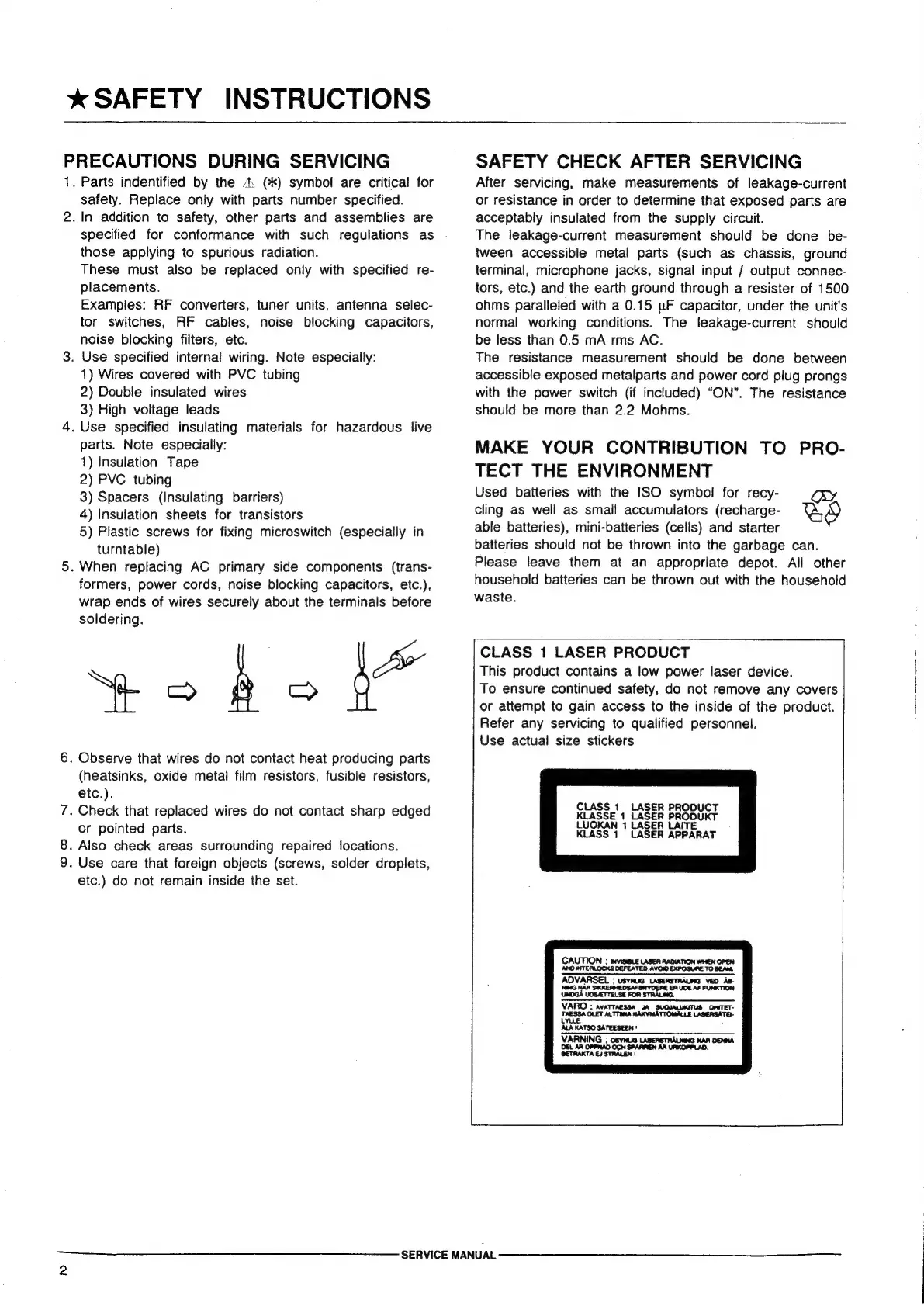

SAFETY
INSTRUCTIONS
PRECAUTIONS
DURING
SERVICING
1.
Parts
indentified
by
the
“\
()
symbol
are
critical
for
safety.
Replace
only
with
parts
number
specified.
2.
In
addition
to
safety,
other
parts
and
assemblies
are
specified
for
conformance
with
such
regulations
as
those
applying
to
spurious
radiation.
These
must
also
be
replaced
only
with
specified
re-
placements.
Examples:
RF
converters,
tuner
units,
antenna
selec-
tor
switches,
RF
cables,
noise
blocking
capacitors,
noise
blocking
filters,
etc.
3.
Use
specified
internal
wiring.
Note
especially:
1)
Wires
covered
with
PVC
tubing
2)
Double
insulated
wires
3)
High
voltage
leads
4.
Use
specified
insulating
materials
for
hazardous
live
parts.
Note
especially:
1)
Insulation
Tape
2)
PVC
tubing
3)
Spacers
(Insulating
barriers)
4)
Insulation
sheets
for
transistors
5)
Plastic
screws
for
fixing
microswitch
(especially
in
turntable)
5.
When
replacing
AC
primary
side
components
(trans-
formers,
power
cords,
noise
blocking
capacitors,
etc.),
wrap
ends
of
wires
securely
about
the
terminals
before
soldering.
‘to
ho
i*
6.
Observe
that
wires
do
not
contact
heat
producing
parts
(heatsinks,
oxide
metal
film
resistors,
fusible
resistors,
etc.).
7.
Check
that
replaced
wires
do
not
contact
sharp
edged
or
pointed
parts.
.
Also
check
areas
surrounding
repaired
locations.
9.
Use
care
that
foreign
objects
(screws,
solder
droplets,
etc.)
do
not
remain
inside
the
set.
fee)
nn
ennnnne——
SERVICE
MANUAL
SAFETY
CHECK
AFTER
SERVICING
After
servicing,
make
measurements
of
leakage-current
or
resistance
in
order
to
determine
that
exposed
parts
are
acceptably
insulated
from
the
supply
circuit.
The
leakage-current
measurement
should
be
done
be-
tween
accessible
metal
parts
(such
as
chassis,
ground
terminal,
microphone
jacks,
signal
input
/
output
connec-
tors,
etc.)
and
the
earth
ground
through
a
resister
of
1500
ohms
paralleled
with
a
0.15
uF
capacitor,
under
the
unit's
normal
working
conditions.
The
leakage-current
should
be
less
than
0.5
mA
rms
AC.
The
resistance
measurement
should
be
done
between
accessible
exposed
metalparts
and
power
cord
plug
prongs
with
the
power
switch
(if
included)
“ON”.
The
resistance
should
be
more
than
2.2
Mohms.
MAKE
YOUR
CONTRIBUTION
TO
PRO-
TECT
THE
ENVIRONMENT
Used
batteries
with
the
ISO
symbol
for
recy-
cling
as
well
as
small
accumulators
(recharge-
&&
able
batteries),
mini-batteries
(cells)
and
starter
batteries
should
not
be
thrown
into
the
garbage
can.
Please
leave
them
at
an
appropriate
depot.
All
other
household
batteries
can
be
thrown
out
with
the
household
waste.
CLASS
1
LASER
PRODUCT
This
product
contains
a
low
power
laser
device.
To
ensure
continued
safety,
do
not
remove
any
covers
or
attempt
to
gain
access
to
the
inside
of
the
product.
Refer
any
servicing
to
qualified
personnel.
Use
actual
size
stickers
CLASS
1.
LASER
PRODUCT
KLASSE
1
LASER
PRODUKT
LUOKAN
1
LASER
LAITE
KLASS
1
LASER
APPARAT
CAUTION
;
srvigss
LASER
RADIATION
WHEN
OPEN
ANO
INTERLOCXS
DEFEATED
AVOIO
EXPOSURE
TO
BEAM,
ADVARSEL
;
usynuG
LASERSTRAUNG
VED
AB
NING
NAR
SIKKERHEDSAFBRYDERE
ER
UDE
AF
FUNKTION
UNDGA
U0G/ETTELSE
FOR
STRALING.
VARO
|;
AVATTAESSA
JA
SUQJALLAUTUS
_OHNTET-
TAESSA
OLET
ALTTWNA
MAKYMATTOMALLE
LASERSATED
LYLLE.
ALA
KATSO
SATEESEEN
!
VARNING
,
osynua
A
MAR
DENMA
LASERSTRALIONG
DEL
AR
OPPMAD
OCH
SPAREN
AR
URKOPPLAD.
GETRAKTA
EJ
STRALEN
!
