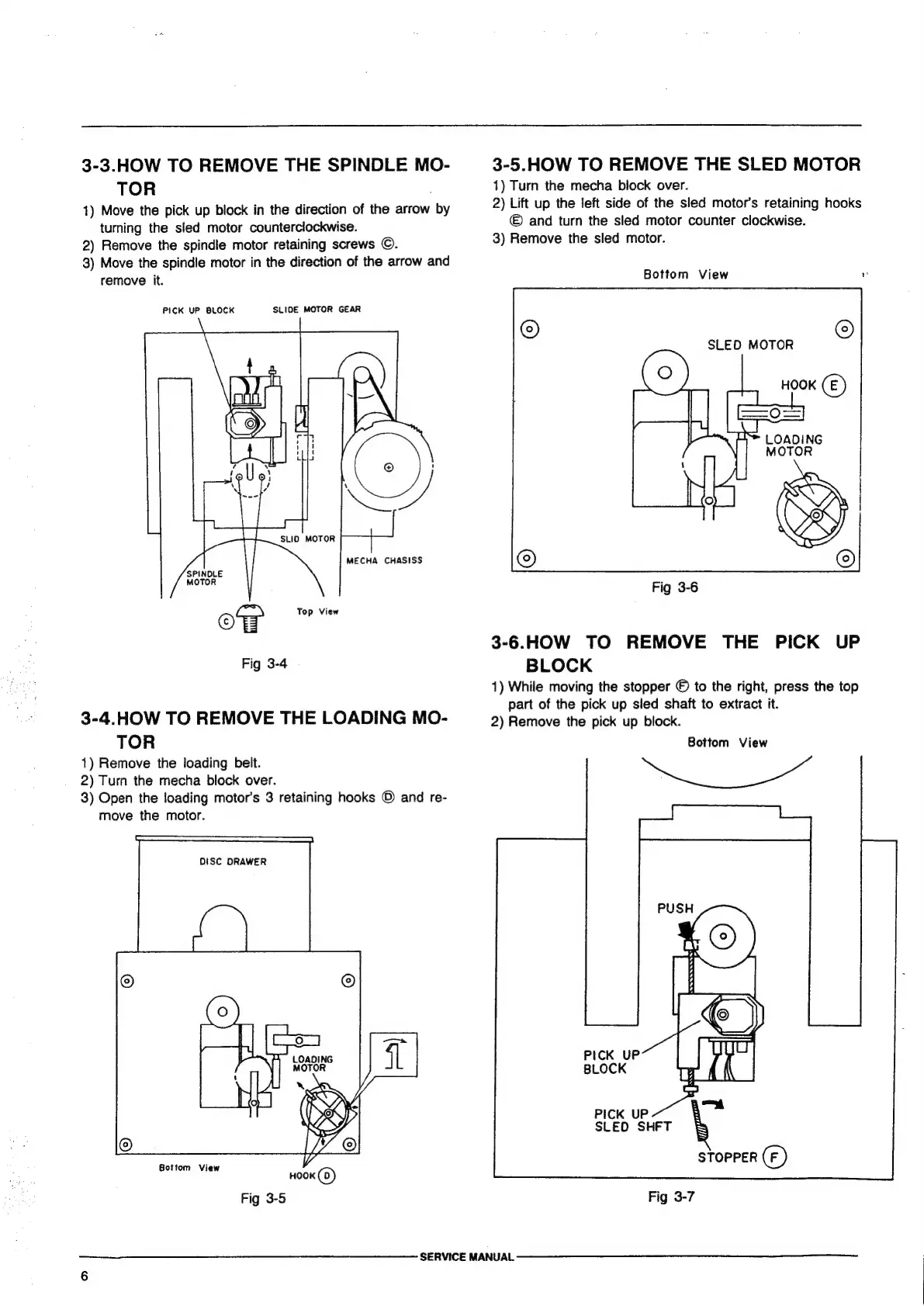

3-3.HOW TO REMOVE THE SPINDLE MO-
TOR
1) Move the pick up block in the direction of the arrow by
turning the sled motor counterclockwise.
2) Remove the spindle motor retaining screws ©.
3) Move the spindie motor in the direction of the arrow and
remove it.
SLIDE MOTOR GEAR
PICK UP BLOCK
MECHA CHASISS
Top View
on
Fig 3-4
3-4.HOW TO REMOVE THE LOADING MO-
TOR
1) Remove the loading belt.
2) Turn the mecha block over.
3) Open the loading motor’s 3 retaining hooks © and re-
move the motor.
OISC DRAWER
Bottom View
SERVICE MANUAL
3-5.HOW TO REMOVE THE SLED MOTOR
1) Turn the mecha block over.
2) Lift up the left side of the sled motor’s retaining hooks
© and turn the sled motor counter clockwise.
3) Remove the sled motor.
Bottom View
SLED MOTOR
Fig 3-6
3-6.HOW TO REMOVE THE PICK UP
BLOCK
1) While moving the stopper © to the right, press the top
part of the pick up sled shaft to extract it.
2) Remove the pick up block.
Bottom View
Fig 3-7
