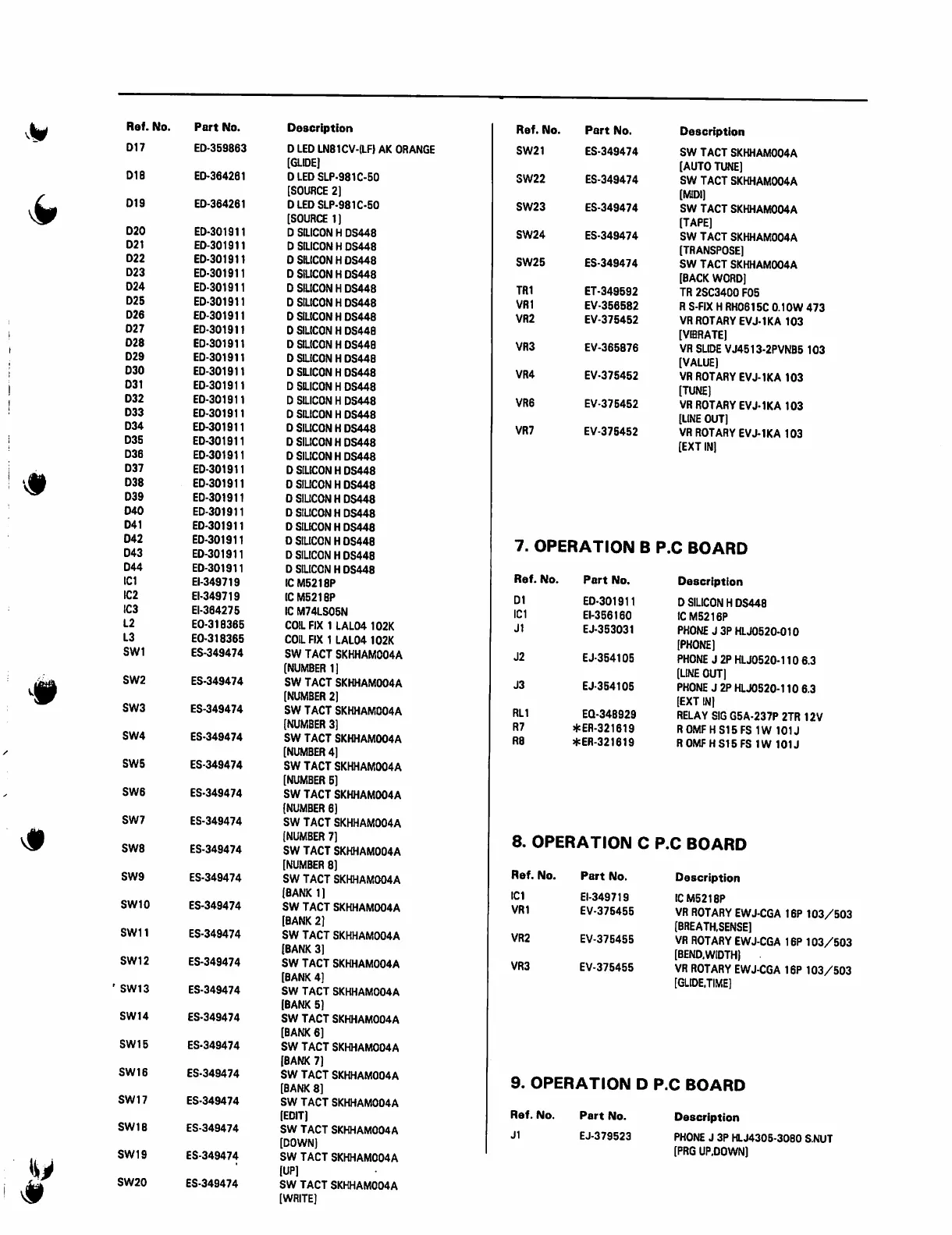

7. OPERATION B P.C BOARD
Ref. No. Part No.
D1
IC1
J1
J2
J3
RL1
R7
R8
ED-301911
EI-356160
EJ-353031
EJ-354105
EJ-354105
EQ-34B929
*ER-321619
*ER-321619
Description
D SILICON H DS448
ICM5216P
PHONE J3PHLJ0520-010
[PHONE]
PHONE J2PHLJ0520-110 6.3
(LINE OUT]
PHONE J2PHLJ0520-110 6.3
[EXT IN]
RELAY SIG G5A-237P 2TR 12V
R0MFHS15FS 1W 101J
R0MFHS15FS1W101J
8. OPERATION C P.C BOARD
Ref. No. Part No. Description
IC1 EI-349719 ICM5218P
VR1 EV-375455 VR ROTARY EWJ-CGA 16P 103/503
[BREATH.SENSE]
VR2 EV-375455 VR ROTARY EWJ-CGA 16P 103/503
[BENO.WIDTH]
VR3 EV-375455 VR ROTARY EWJ-CGA 16P 103/503
[GUDE.TIME]
9. OPERATION D P.C BOARD
Ref. No. Part No. Description
J1 EJ-379523 PHONE J 3P HLJ4305-3080 SJJUT
[PRG UP.O0WN]
