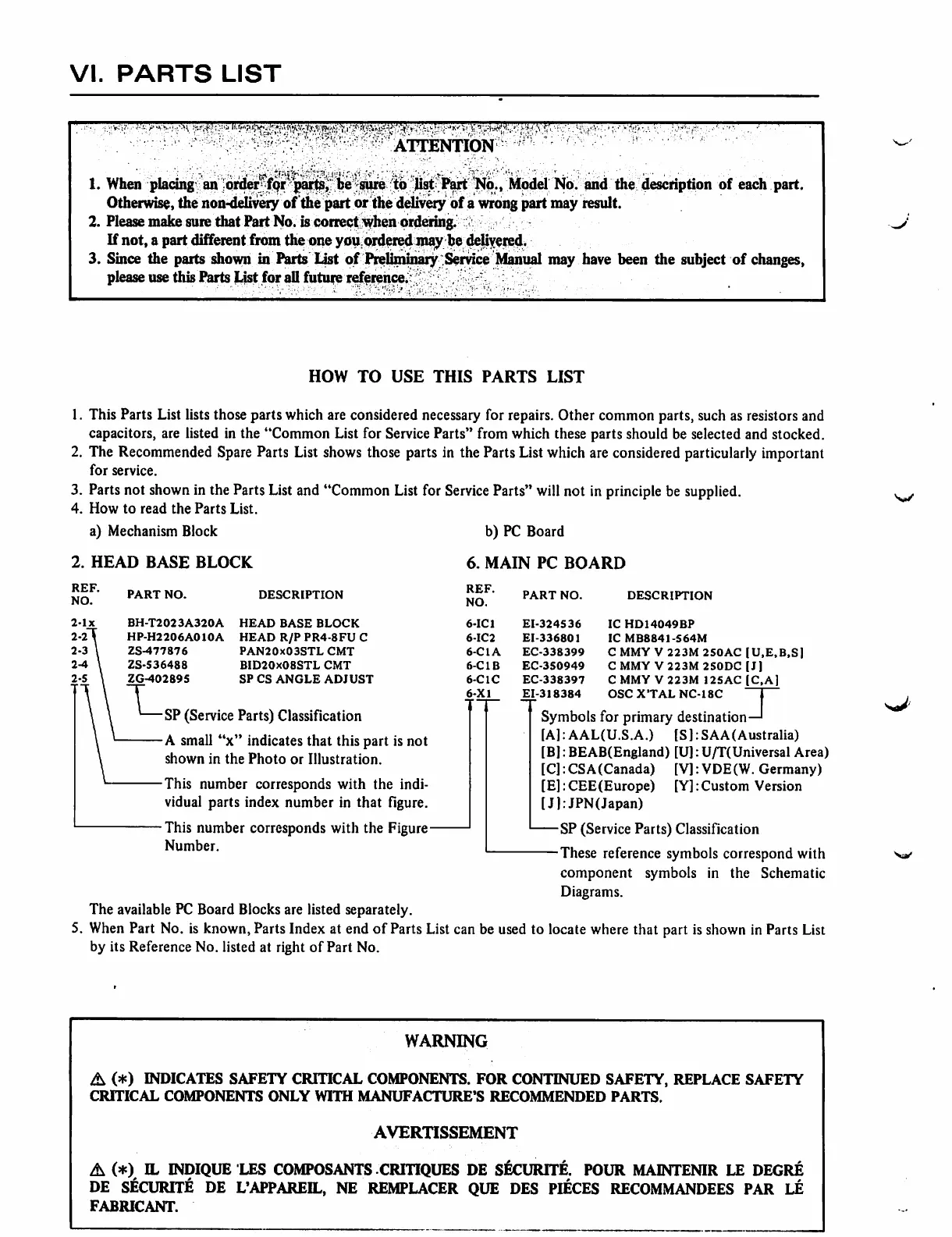

VI. PARTS LIST
ATTENTION
1. When placing an order*f<jr parts, be sure to list Part No., Model No. and the description of each part.
Otherwise, the non-delivery of the part or the delivery of a wrong part may result.
2. Please make sure that Part No. is correct when ordering.
If not, a part different from the one you ordered may be delivered.
3. Since the parts shown in Parts list of Preliminary Service Manual may have been the subject of changes,
please use this Parts List for all future reference.
HOW TO USE THIS PARTS LIST
1. This Parts List lists those parts which are considered necessary for repairs. Other common parts, such as resistors and
capacitors, are listed in the "Common List for Service Parts" from which these parts should be selected and stocked.
2. The Recommended Spare Parts List shows those parts in the Parts List which are considered particularly important
for service.
3. Parts not shown in the Parts List and "Common List for Service Parts" will not in principle be supplied.
4. How to read the Parts List.
a) Mechanism Block b) PC Board
2. HEAD BASE BLOCK
6. MAIN PC BOARD
REF.
NO.
PART NO.
BH-T2023A320A
HP-H2206A010A
ZS-477876
ZS-S36488
ZG-402895
DESCRIPTION
HEAD BASE BLOCK
HEAD R/P PR4-8FU C
PAN20X03STL CMT
BID2OXO8STL CMT
SP CS ANGLE ADJUST
SP (Service Parts) Classification
A small "x" indicates that this part is not
shown in the Photo or Illustration.
This number corresponds with the indi
vidual parts index number in that figure.
This number corresponds with the Figure-
Number.
Symbols for primary destination—'
IA]:AAL(U.S.A.) [S]:SAA (Australia)
[B]: BEAB(England) [U]: U/T(Universal Area)
[C]: CS A (Canada) [V]: VDE(W. Germany)
[E]: CEE(Europe) [Y]: Custom Version
[J):JPN( Japan)
' SP (Service Parts) Classification
—These reference symbols correspond with
component symbols in the Schematic
Diagrams.
The available PC Board Blocks are listed separately.
5. When Part No. is known, Parts Index at end of Parts List can be used to locate where that part is shown in Parts List
by its Reference No. listed at right of Part No.
s-/
WARNING
A (*) INDICATES SAFETY CRITICAL COMPONENTS. FOR CONTINUED SAFETY, REPLACE SAFETY
CRITICAL COMPONENTS ONLY WITH MANUFACTURE'S RECOMMENDED PARTS.
AVERTISSEMENT
A (*) IL INDIQUE LES COMPOSANTS CRITIQUES DE SECURITE. POUR MADMTENIR LE DEGRE
DE SECURITE DE L'APPAREBL, NE REMPLACER QUE DES PIECES RECOMMANDEES PAR LE
FABRICANT.
