MODEL: EWV2000

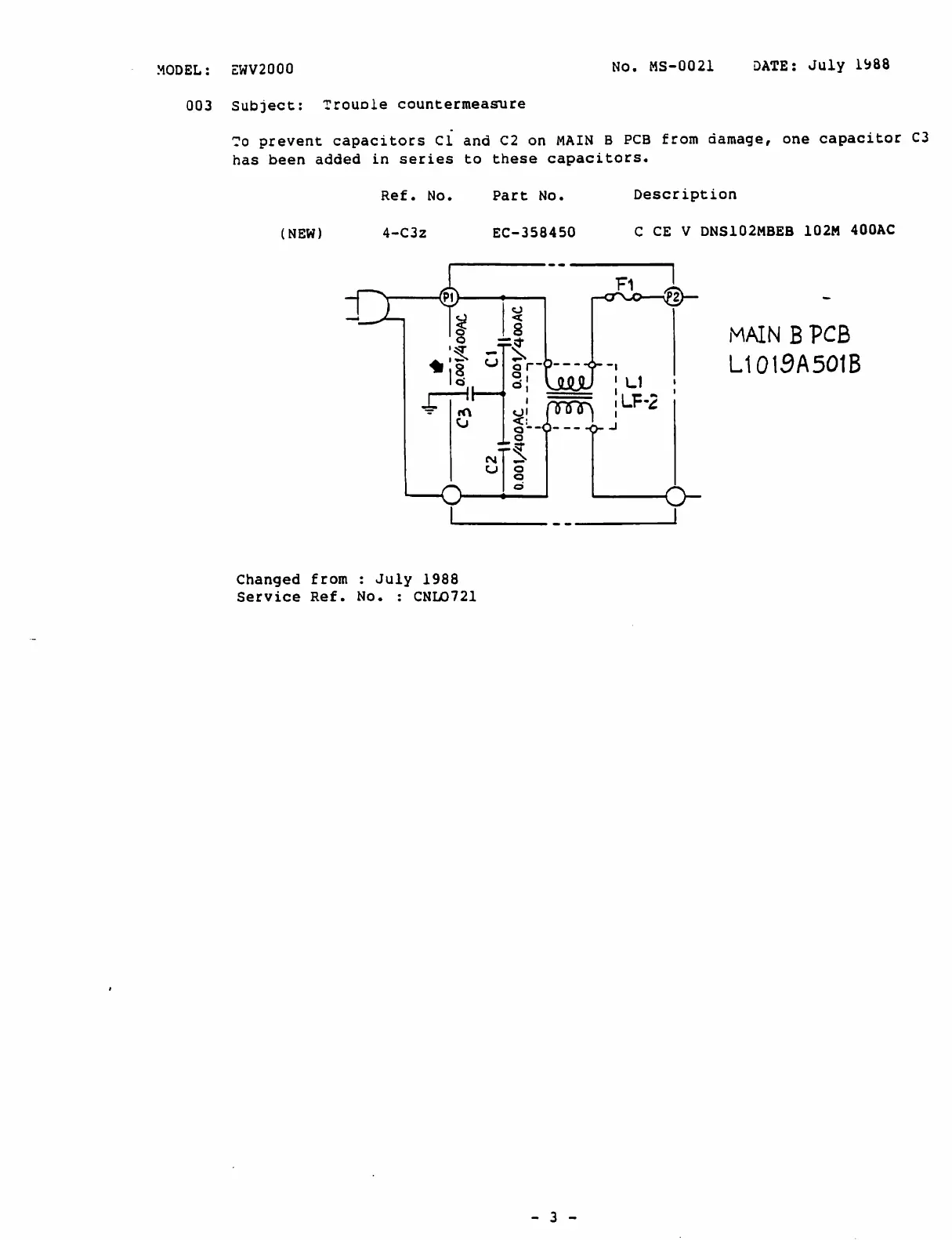

003 Subject: TrouDle countermeas"ure
No. MS-0021 DATE: July 1*88
?o prevent capacitors Cl and C2 on MAIN B PCB from damage, one capacitor C3
has been added in series to these capacitors.
(NEW)
Ref. No. Part No. Description
4-C32 EC-358450 C CE V DNS102MBEB 102M 400AC
MAIN B PCB
L1019A501B
Changed from : July 1988
Service Ref. No. : CNLO721
- 3 -
