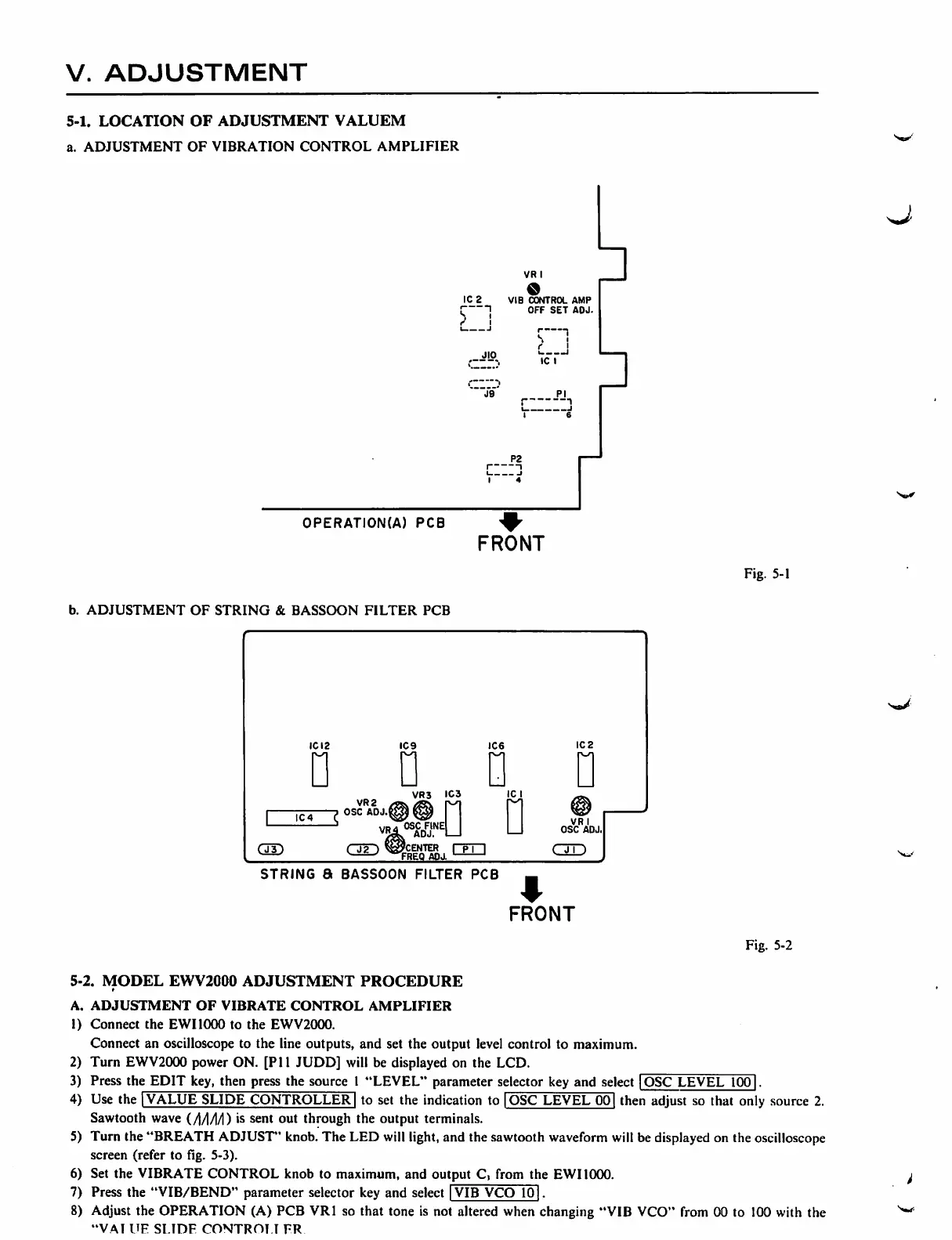

V.
ADJUSTMENT
5-1.
LOCATION
OF
ADJUSTMENT
VALUEM
a.
ADJUSTMENT
OF
VIBRATION
CONTROL
AMPLIFIER
OPERATION(A)
PCB
b.
ADJUSTMENT
OF
STRING
&
BASSOON
FILTER
PCB
FRONT
Fig. 5-1
STRING
8
BASSOON
FILTER
PCB
FRONT
Fig.
5-2
5-2.
MODEL
EWV2000
ADJUSTMENT
PROCEDURE
A.
ADJUSTMENT
OF
VIBRATE
CONTROL
AMPLIFIER
1)
Connect
the
EWI1000
to
the
EWV2000.
Connect
an
oscilloscope
to
the
line
outputs,
and
set
the
output
level
control
to
maximum.
2)
Turn
EWV20O0
power
ON.
[Pll
JUDD]
will
be
displayed
on
the
LCD.
3)
Press
the
EDIT
key,
then
press
the
source
1
"LEVEL"
parameter
selector
key
and
select
|QSC
LEVEL
1001.
4)
Use
the
1
VALUE
SLIDE
CONTROLLER
|
to
set
the
indication
to
|
OSC
LEVElTOOl
then
adjust
so
that
only
source
2.
Sawtooth
wave
(/I/I/I/I)
is
sent
out
through
the
output
terminals.
5)
Turn
the
"BREATH
ADJUST"
knob.
The
LED
will
light,
and
the
sawtooth
waveform
will
be
displayed
on
the
oscilloscope
screen
(refer
to
fig.
5-3).
6)
Set
the
VIBRATE
CONTROL
knob
to
maximum,
and
output
C,
from
the
EWI1000.
7)
Press
the
"VIB/BEND"
parameter
selector
key
and
select
|
VIB
VCO
10~|.
8)
Adjust
the
OPERATION
(A)
PCB
VRI
so
that
tone
is
not
altered
when
changing
"VIB
VCO"
from
00
to
100
with
the
"VAT
UE
SLTDF
CONTROT.T
FR
