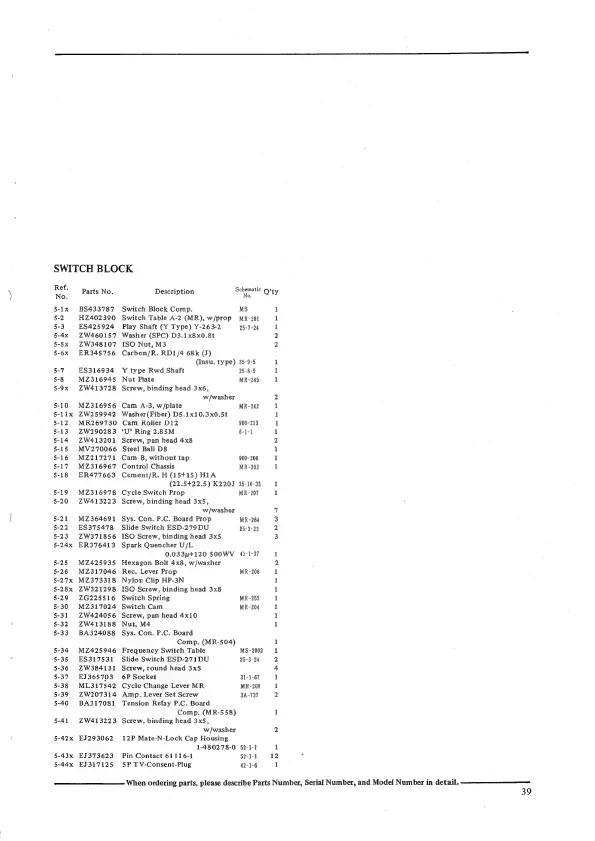

SWITCH BLOCK
at Parts No. Description Sta Q’ty
5-1x BS433787 Switch Block Comp. MS 1
5-2 HZ402390 Switch Table A-2 (MR), w/prop MR-201 1
5-3 ES425924 Play Shaft (Y Type) Y-263-2 25-17-24 1
5-4x ZW460157 Washer (SPC) D3.1x8x0.8t 2
§-5x ZW348107 ISO Nut, M3 2
5-6x ER345756 Carbon/R. RD1/4 68k (J)
(Insu. type) 35-9-5 1
5-7 ES316934 Y type Rwd Shaft 25-8-5 1
5-8 MZ316945 Nut Plate MR-245 1
5-9x ZW413728 Screw, binding head 3x6,
w/washer 2
5-10 MZ316956 Cam A-3, w/plate MR-242 1
5-11x ZW259942 Washer(Fiber) D5.1x10.3x0.5t 1
5-12. MR269730 Cam Roller D12 900-213 i
5-13 ZW290283 ‘U’ Ring 2.85M 6-1-1 1
5-14 ZW413201 Screw, pan head 4x8 2
5-15 MV270066 Steel Ball D8 1
5-16 MZ217271 Cam B, without tap 900-206 1
5-17 MZ316967 Control Chassis MR-202 1
5-18 ER477663 Cement/R. H (15+15) HI1A
(22.5+22.5) K220J 35-16-33 1
5-19 MZ316978 Cycle Switch Prop MR-207 1
5-20 ZW413223 Screw, binding head 3x5,
w/washer 7
§-21 MZ364691 Sys. Con. P.C. Board Prop MR-264 3
§-22 ES375478 Slide Switch ESD-279DU 25-3-23 2
5-23. ZW371856 ISO Screw, binding head 3x5 3
§-24x ER376413 Spark Quencher U/L
0.033u+120 SOOWV 41-1-37 1
§-25 MZ425935 Hexagon Bolt 4x8, w/washer 2
5-26 MZ317046 Rec. Lever Prop MR-206 1
$-27x MZ373318 Nylon Clip HP-3N i
5-28x ZW321298 ISO Screw, binding head 3x8 1
§-29 2ZG225516 Switch Spring MR~-255 1
5-30 MZ317024 Switch Cam MR-204 1
5-31 ZW424056 Screw, pan head 4x10 1
5-32 ZW413188 Nut, M4 1
5-33 BA324088 Sys. Con. P.C. Board
Comp. (MR-504) 1
5-34 MZ425946 Frequency Switch Table MS-2002
§-35 ES317531 Slide Switch ESD-271DU 25-3-24 2
§-36 ZW384131 Screw, round head 3x5 4
5-37 EJ365703 6P Socket 31-1-67 1
§-38 ML317542 Cycle Change Lever MR MR-209 I
5-39 ZW207314 Amp. Lever Set Screw 3A-737 2
5-40 BA317081 Tension Relay P.C. Board
Comp. (MR-558) 1
5-41 ZW413223 Screw, binding head 3x5,
w/washer 2
5-42x EJ293062 12P Mate-N-Lock Cap Housing
1-480278-0 52-1-1 1
§-43x EJ373623 Pin Contact 61116-1 52-1-1 12 y
5-44x EJ317125 5P TV-Consent-Plug 42-1-6 1
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail. ——-—————-—-
39
