Ref.

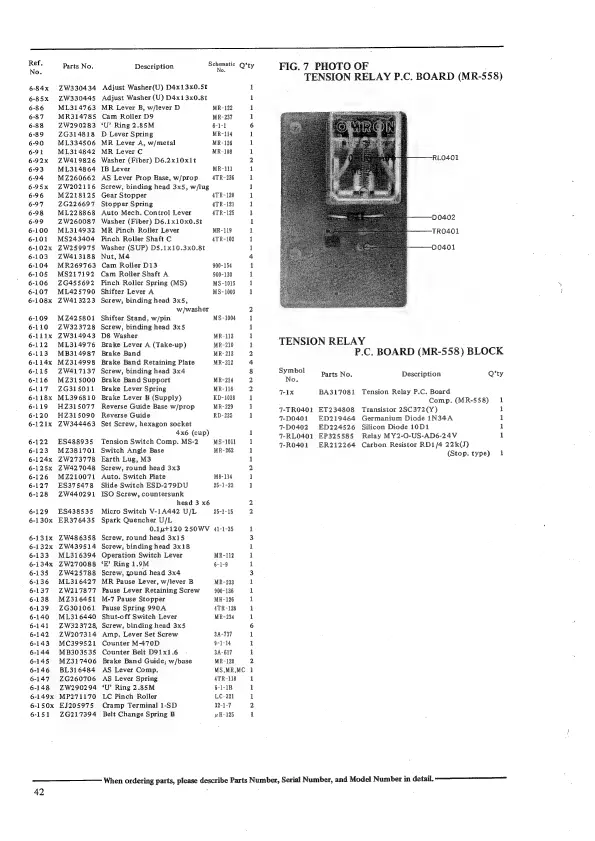

i Parts No. Description chenalle Q’ty FIG. 7 PHOTO OF
0. is
TENSION RELAY P.C. BOARD (MR-558)
6-84x ZW330434 Adjust Washer(U) D4x13x0.5t 1
6-85x ZW330445 Adjust Washer (U) D4x13x0.8t 1
6-86 ML314763 MR Lever B, w/lever D MR-122 1
6-87 MR314785 Cam Roller D9 MR-237 1
6-88 ZW290283 ‘U’ Ring 2.85M 6-1-1 6
6-89 ZG314818 D Lever Spring MR-114 1
6-90 ML334506 MR Lever A, w/metal MR-126 1
6-91 ML314842 MR Lever C MR-108 1
6-92x ZW419826 Washer (Fiber) D6.2x10xit 2 RLO401
6-93 ML314864 IB Lever MR-111 1
6-94 MZ260662 AS Lever Prop Base, w/prop 4TR-236 1
6-95x ZW202116 Screw, binding head 3x5, w/lug 1
6-96 MZ218125 Gear Stopper 4TR-120 1
6-97 ZG226697 Stopper Spring 4TR-121 1
6-98 ML228868 Auto Mech. Control Lever 4TR-125 1
6-99 ZW260087 Washer (Fiber) D6.1x10x0.5t 1 00402
6-100 ML314932 MR Pinch Roller Lever MR-119 1 TRO401
6-101 MS243404 Pinch Roller Shaft C 4TR-102 1
6-102x ZW259975 Washer (SUP) DS.1x10.3x0.8t 1 DO401
6-103 ZW413188 Nut, M4 4
6-104 MR269763 Cam Roller D13 900-154 1
6-105 MS217192 Cam Roller Shaft A 900-130 1
6-106 ZG455692 Pinch Roller Spring (MS) MS-1015 1
6-107 ML425790 Shifter Lever A MS-1003 1
6-108x ZW413223 Screw, binding head 3x5,
w/washer 2
6-109 MZ425801 Shifter Stand, w/pin MS-1004 1
6-110 ZW323728 Screw, binding head 3x5 1
6-111x ZW314943 D8 Washer MR-113 1
6-112 ML314976 Brake Lever A (Take-up) MR-210 1 TENSION RELAY
6-113 MB314987 Brake Band MR-213 2 P.C. BOARD (MR-558) BLOCK
6-114x MZ314998 Brake Band Retaining Plate MR-212 4
6-115 ZW417137 Screw, binding head 3x4 8 Symbol ae ;
6-116 MZ315000 Brake Band Support MR-214 2 No. Pee Pecepnen Ls
6-117 ZG315011 Brake Lever Spring MR-116 2 4 .
6-118x ML396810 Brake Lever B (Supply) KD-1038 1 ea Delta er eeaer nari ges aa (un-sss) 1
6-119 HZ315077 Reverse Guide Base w/prop MR-229 1 7-TR0401 ET234808 Transistor 2SC372(Y) 1
OLA Hee T9020 «Reverse Guide AO od 7-D0401 ED219464 Germanium Diode 1N34A 1
6-121x ZW344463 Set Screw, hexagon socket 7-D0402 ED224526 Silicon Diode 10D1 1
4x6 (cup) 7-RL0401 EP325585 Relay MY2-O-US-AD6-24V 1
6-122 ES488935 Tension Switch Comp. MS-2 MS-1011 1 7-RO401 ER212264 Carbon Resistor RD1/4 22k(J)
6-123 MZ381701 Switch Angle Base MR-262 1 (Stop. type) 1
6-124x ZW273778 Earth Lug, M3 1
6-125x ZW427048 Screw, round head 3x3 2
6-126 MZ210071 Auto. Switch Plate M8-114 1
6-127 ES375478 Slide Switch ESD-279DU 25-1-23 1
6-128 ZW440291 ISO Screw, countersunk
; head 3 x6 2
6-129 ES438535 Micro Switch V-1A442 U/L 25-1-15 2
6-130x ER376435 Spark Quencher U/L
O.1ut120 250WV 41-1-35 1
6-131x ZW486358 Screw, round head 3x15 3
6-132x ZW439514 Screw, binding head 3x18 1
6-133 ML316394 Operation Switch Lever MR-112 1
6-134x ZW270088 ‘E’ Ring 1 -9M 6-1-9 1
6-135 ZW425788 Screw, pound head 3x4 3
6-136 ML316427 MR Pause Lever, w/lever B MR-233 1
6-137 ZW217877 Pause Lever Retaining Screw 900-136 1
6-138 MZ316451 M-7 Pause Stopper MH-126 1
6-139 ZG301061 Pause Spring 990A 4TR-128 i
6-140 ML316440 Shut-off Switch Lever MR-234 i
6-141 ZW323728 Screw, binding head 3x5 6
6-142 ZW207314 Amp. Lever Set Screw 3A-737 1
6-143 MC399521 Counter M-470D 9-1-14 1
6-144 MB303535 Counter Belt D91x1.6 . 3A-617 1
6-145 MZ317406 Brake Band Guide; w/base MR-120 2
6-146 BL316484 AS Lever Comp. MS,MR,MC 1
6-147 ZG260706 AS Lever Spring 4TR-118 1
6-148 ZW290294 ‘U’ Ring 2.85M 6-1-1B 1
6-149x MP271170 LC Pinch Roller LC-321 1
6-150x EJ205975 Cramp Terminal 1-SD 32-1-7 2
6-151 ZG217394 Belt Change Spring B wH-125 i
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
42
