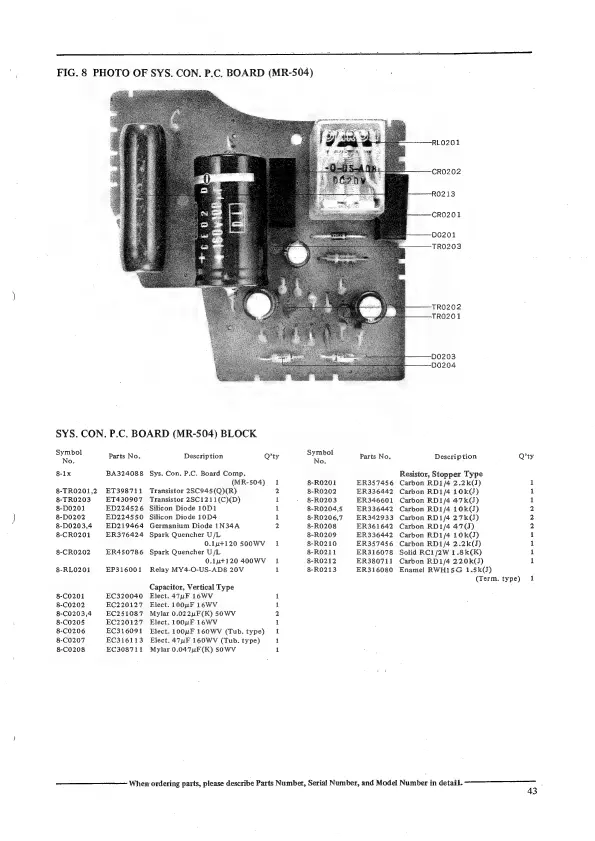

FIG. 8 PHOTO OF SYS. CON. P.C. BOARD (MR-504)
SYS. CON. P.C. BOARD (MR-504) BLOCK
Symbol
No.
8-1x
8-TRO201,2
8-TRO203
8-D0201
8-D0202
8-D0203,4
8-CRO201
8-CRO202
8-RLO201
8-C0201
8-C0202
8-C0203,4
8-C0205
8-C0206
8-C0207
8-C0208
Parts No.
BA324088
ET398711
ET430907
ED224526
ED224550
ED219464
ER376424
ER450786
EP316001
EC320040
EC220127
EC251087
EC220127
EC316091
EC316113
EC308711
Description Q
Sys. Con. P.C. Board Comp.
(MR-504)
Transistor 2SC945(Q)(R)
Transistor 2SC1211(C)(D)
Silicon Diode 10Di
Silicon Diode 10D4
Germanium Diode 1N34A
Spark Quencher U/L
0.1u+120 500WV
Spark Quencher U/L
0.1u+120 400WV
Relay MY4-0-US-AD8 20V
Capacitor, Vertical Type
Elect. 47uF 16WV
Elect. 100uF 16WV
Mylar 0.022yF(K) 50WV
Elect. 100uF 16WV
Elect. 100uF 160WV (Tub. type)
Elect. 47uF 160WV (Tub. type)
Mylar 0.047yuF(K) 5OWV
=
= ee Ne et
Symbol
No.
8-RO201
8-RO202
8-RO0203
8-R0204,5
8-RO206,7
8-R0208
8-RO209
8-RO210
8-RO211
8-RO212
8-RO213
Parts No,
ER357456
ER336442
ER346601
ER336442
ER342933
ER361642
ER336442
ER357456
ER316078
ER380711
ER316080
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
RLO201
CRO202
RO213
CRO201
D0201
TRO203
TRO202
TRO2O01
Description Q’ty
Resistor, Stopper Type
Carbon RD1/4 2.2k(J)
Carbon RD1/4 10k(J)
Carbon RD1/4 47k(J)
Carbon RD1/4 10k(J)
Carbon RD1/4 27k(J)
Carbon RD1/4 47(5)
Carbon RD1/4 10k(J)
Carbon RD1/4 2.2k(J)
Solid RC1/2W 1.8k(K)
Carbon RD1/4 220k(J)
Enamel RWH15G 1.5k(J)
(Term. type) 1
Be Re NYDN eee
43
