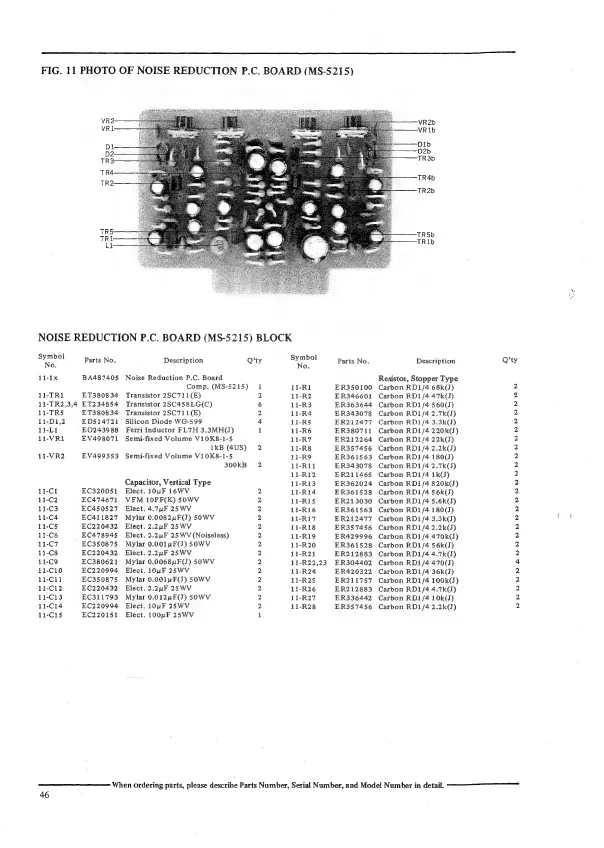

FIG. 11 PHOTO OF NOISE REDUCTION P.C. BOARD (MS-5215)
TRS
TRI
Li-
NOISE REDUCTION P.C. BOARD (MS-5215) BLOCK
Symbol
No,
11-1x
11-TR1
11-TR2,3,4
11-TRS
11-D1,2
11-L1
11-VR1
11-VR2
11-Ci
11-C2
11-C3
11-C4
11-C5
11-C6
11-C7
11-C8
11-C9
11-C10
11-Cil
11-C12
11-C13
11-C14
11-C15
46
Parts No,
BA487405
ET3808 34
ET234854
ET380834
ED514721
E0243988
EV498071
EV499353
EC320051
EC474671
EC450527
EC411827
EC220432
EC478945
EC350875
EC220432
EC380621
EC220994
EC350875
EC220432
EC311793
EC220994
EC220151
Description Q’ty
Noise Reduction P.C. Board
Comp. (MS-5215)
Transistor 2SC711(E)
Transistor 2SC458LG(C)
Transistor 2SC711(E)
Silicon Diode WG-599
Ferri Inductor FL7H 3.3MH(J)
Semi-fixed Volume V10K8-1-5
1kB (4US)
Semi-fixed Volume V10K8-1-5
300kB
Capacitor, Vertical Type
Elect. 10uF 16WV
VFM 10PF(K) 50WV
Elect. 4.7uF 25WV
Mylar 0.0082uF(J) SOWV
Elect. 2.2uF 25WV
Elect. 2.2uF 25 WV (Noiseless)
Mylar 0.001yF(J) SOWV
Elect. 2.2uF 25WV
Mylar 0.0068yF(J) 50WV
Elect. 10uF 25WV
Mylar 0.001uF(J) 5OWV
Elect. 2.2uF 25WV
Mylar 0.012uF(J) SOWV
Elect. 10uF 25WV
Elect. 100uF 25WV
ep bun AY
iS]
MP NNNNNNNNNNNNN YD
Symbol
No.
11-R1
11-R2
11-R3
11-R4
11-R5
11-R6
11-R7
11-R8
11-R9
11-R11
11-R12
11-R13
11-R14
11-R15
11-R16
11-R17
11-R18
11-R19
11-R20
11-R21
11-R22,23
11-R24
11-R25
11-R26
11-R27
11-R28
Parts No.
ER350100
ER346601
ER363644
ER343078
ER212477
ER380711
ER212264
ER357456
ER361563
ER343078
ER211465
ER362024
ER361528
ER213030
ER361563
ER212477
ER357456
ER429996
ER361528
ER212883
ER304402
ER420322
ER211757
ER212883
ER336442
ER357456
VR2b
VRIb
Dib
D2b
TR3b
TR4b
TR2b
TR5b
TR1b
Description
Resistor, Stopper Type
Carbon RD1/4 68k(J)
Carbon RD1/4 47k(J)
Carbon RD1/4 560(J)
Carbon RD1/4 2.7k(J)
Carbon RD1/4 3.3k(J)
Carbon RD1/4 220k(J)
Carbon RD1/4 22k(J)
Carbon RDI /4 2.2k(Q)
Carbon RD1/4 180(3)
Carbon RD1/4 2.7k(J)
Carbon RD1/4 1k(J)
Carbon RD1/4 820k(J)
Carbon RD1/4 56k(J)
Carbon RD1/4'5.6k(J)
Carbon RD1/4 180(J)
Carbon RD1/4 3.3k(J)
Carbon RD1/4 2.2k(J)
Carbon RD1/4 470k(J)
Carbon RD1/4 56k(J)
Carbon RD1/4 4.7k(J)
Carbon RD1/4 470(5)
Carbon RD1/4 36k(J)
Carbon RD1/4 100k(J)
Carbon RD1/4 4.7k(J)
Carbon RD1/4 10k(J)
Carbon RD1/4 2.2k(J)
Q'ty
VWNYNNNANNNNNNNNNNNNNNNNNNNYNN
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail. ———————"———
