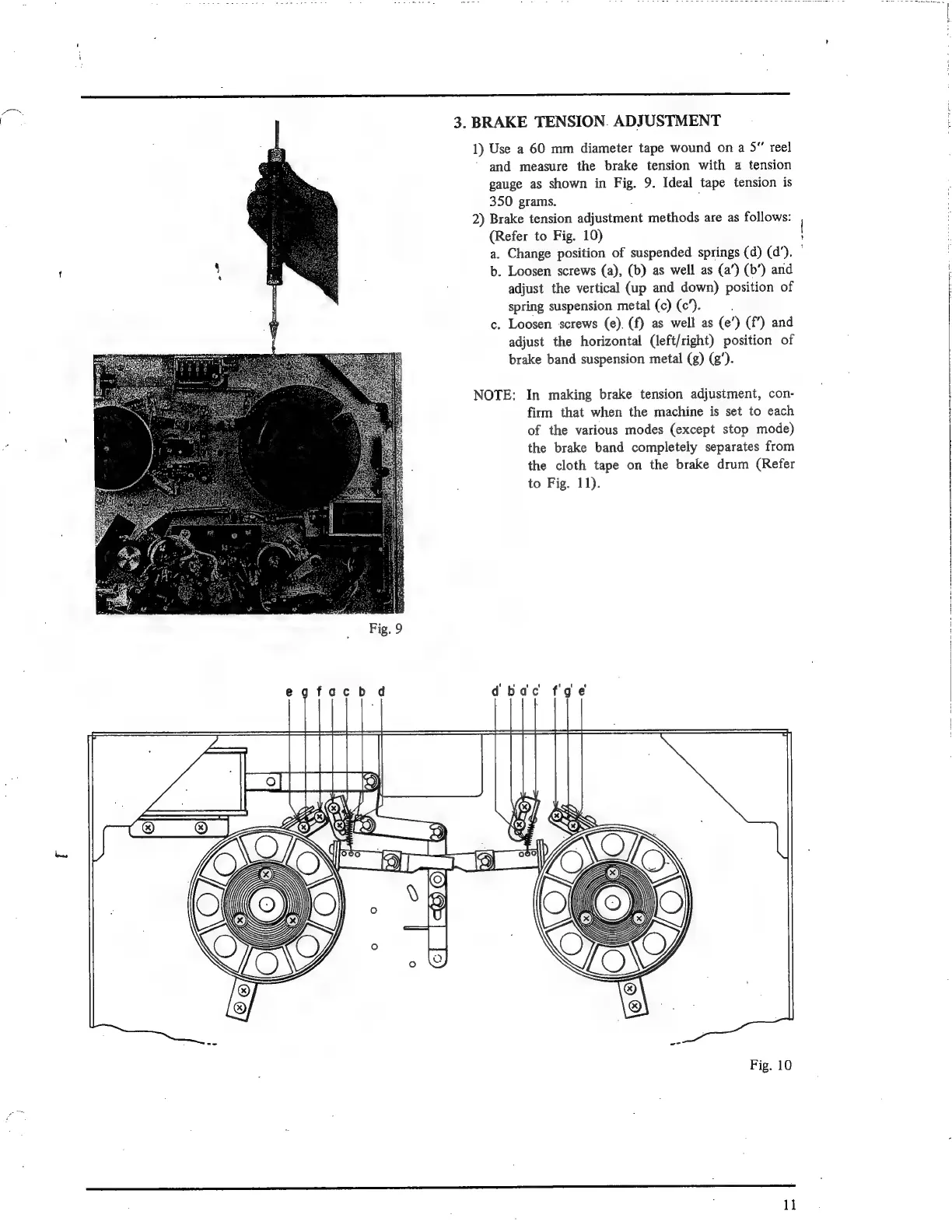

3.
BRAKE
TENSION.
ADJUSTMENT
1)
Use
a
60
mm
diameter
tape
wound
on
a
5”
reel
and
measure
the
brake
tension
with
a
tension
gauge
as
shown
in
Fig.
9.
Ideal
tape
tension
is
350
grams.
: ,
2)
Brake
tension
adjustment
methods
are
as
follows:
(Refer
to
Fig.
10)
a.
Change
position
of
suspended
springs
(d)
(d’).
b.
Loosen
screws
(a),
(b)
as
well
as
(a’)
(b’)
and
adjust
the
vertical
(up
and
down)
position
of
spring
suspension
metal
(c)
(c’).
c.
Loosen
screws
(e).
(f)
as
well
as
(e’)
(f’)
and
adjust
the
horizontal
(left/right)
position
of
brake
band
suspension
metal
(g)
(g’).
NOTE:
In
making
brake
tension
adjustment,
con-
firm
that
when
the
machine
is
set
to
each
of
the
various
modes
(except
stop
mode)
the
brake
band
completely
separates
from
the
cloth
tape
on
the
brake
drum
(Refer
to
Fig.
11).
dbac
fge
ee
Se
ce
Pott
Tt
11
