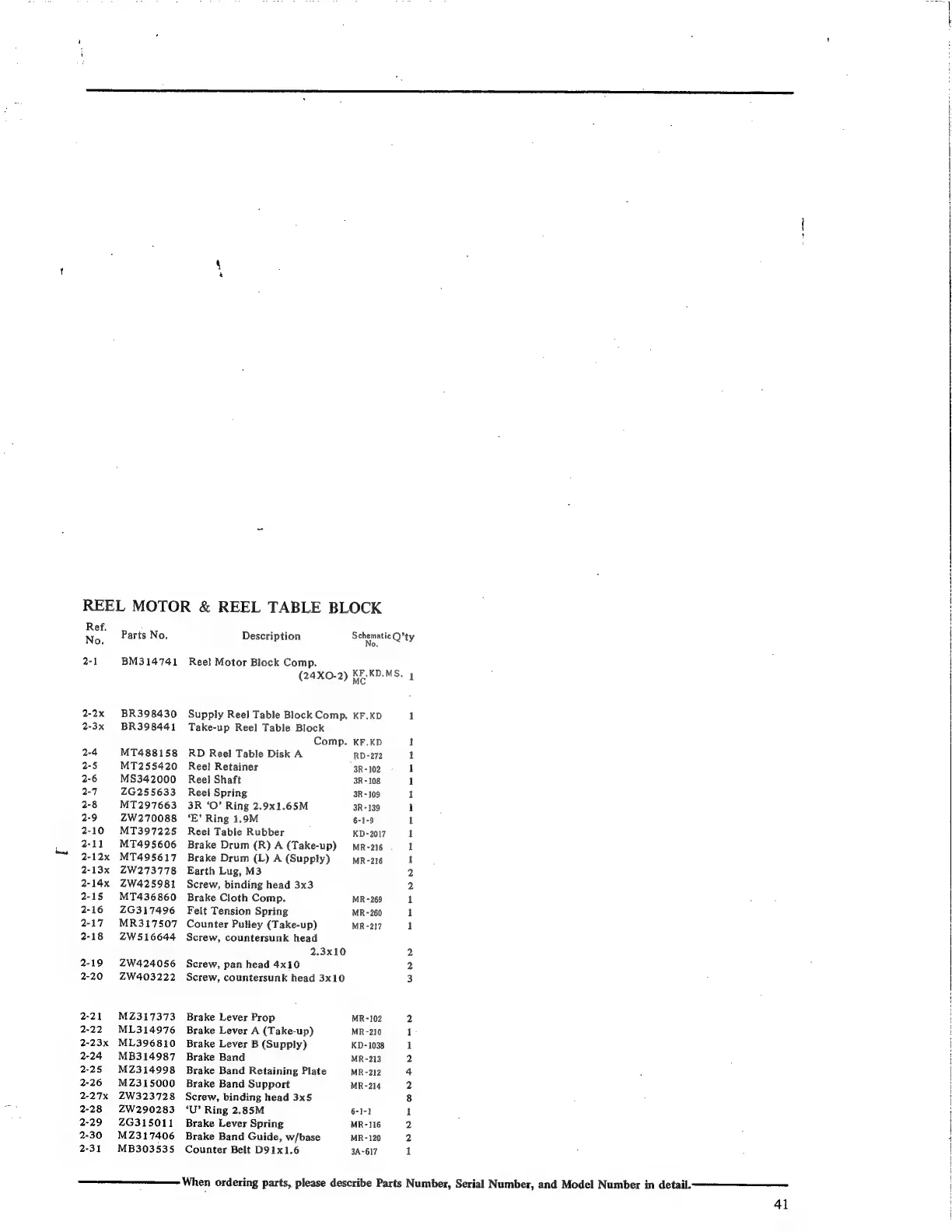

REEL MOTOR & REEL TABLE BLOCK
ce Parts No. Description emus Q’ty
2-1 BM314741 Reel Motor Block Comp.
(24X0.-2) KEKD.MS. 4
2-2x BR398430 Supply Reel Table Block Comp. KF.KD 1
2-3x BR398441 Take-up Reel Table Block
Comp. KF.KD 1
2-4
MT488158
RD
Reel
Table
Disk
A
RD-272
1
2-5
MT255420
Reel
Retainer
3R-102
1
2-6 MS342000 Reel Shaft 3R - 108 1
2-7 ZG255633 Reel Spring 3R-109 1
2-8
MT297663
3R
‘O’
Ring
2.9x1.65M
3R-139
i
2-9 ZW270088 ‘E’ Ring 1,9M 6-1-9 1
2-10
MT397225
Reet
Table
Rubber
KD-2017
1
2-11 MT495606 Brake Drum(R)A(Take-up) wr-216. 1
2-12x MT495617 Brake Drum (L) A (Supply) MR-216 1
2-13x Z2W273778 Earth Lug, M3 2
2-14x ZW425981 Screw, binding head 3x3 2
2-15 MT436860 Brake Cloth Comp. MR -269 1
2-16
2ZG3i7496
Felt
Tension
Spring
MR-260
1
2-17 MR317507 Counter Pulley (Take-up) MR-217 1
2-18 ZW516644 Screw, countersunk head
2.3x10 2
2-19 ZW424056 Screw, pan head 4x10 2
2-20 ZW403222 Screw, countersunk head 3x10 3
2-21 MZ31i7373 Brake Lever Prop MR-102 2
2-22 ML314976 Brake Lever A (Take-up) MR-210 1-
2-23x ML396810 Brake Lever B (Supply) KD- 1038 1
2-24 MB314987 Brake Band MR-213 2
2-25
MZ314998
Brake
Band
Retaining
Plate
MR-212
4
2-26 MZ315000 Brake Band Support MR-214 2
2-27x ZW323728 Screw, binding head 3x5 8
2-28 ZW290283 ‘U’ Ring 2.85M 6-1-1 i
2-29 ZG315011 Brake Lever Spring MR-116 2
2-30 MZ317406 Brake Band Guide, w/base MR-120 2
2-31
MB303535
Counter
Belt
D91x1.6
3A-617
1
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
