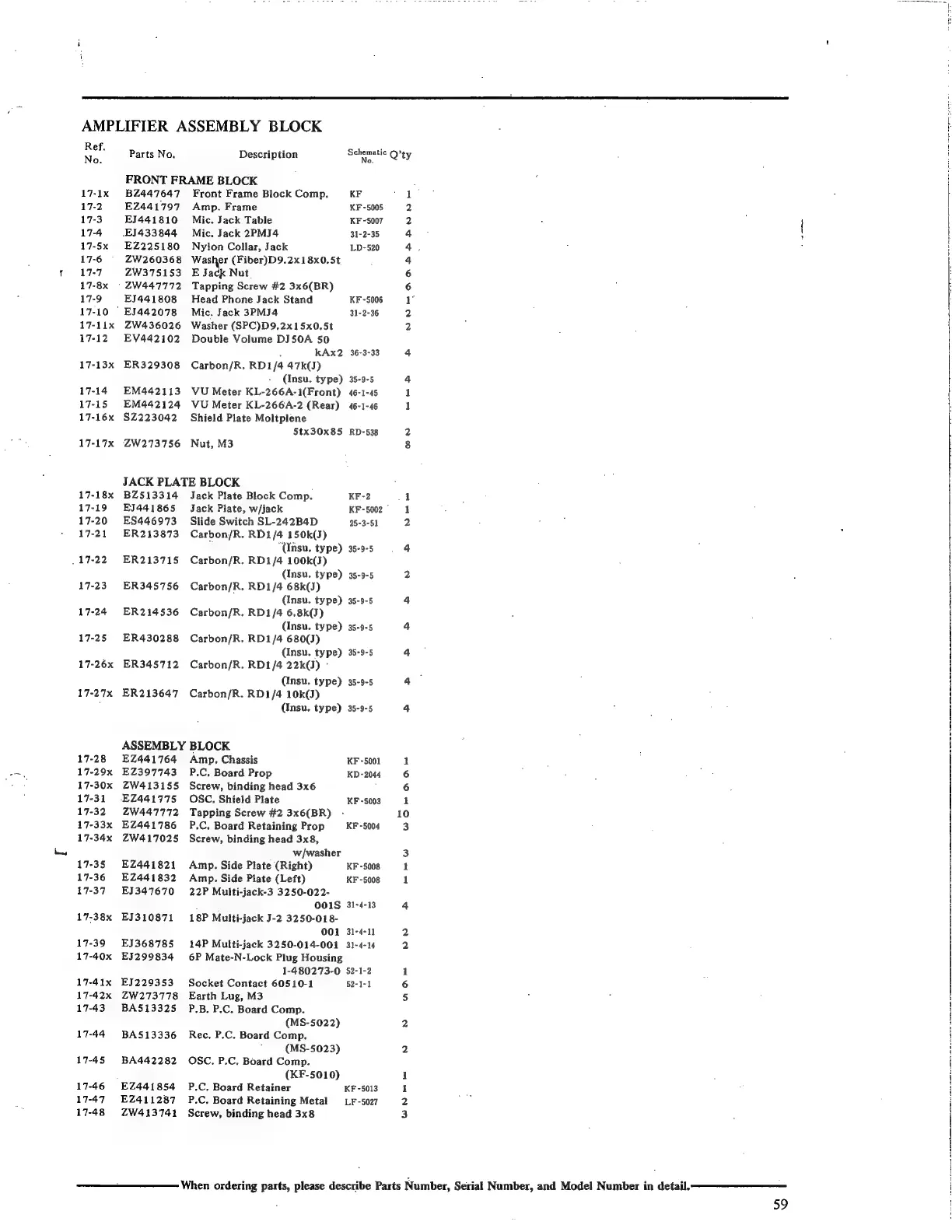

AMPLIFIER ASSEMBLY BLOCK
ce Parts No. Description Schematic Q’ty
FRONT FRAME BLOCK ;
17-1x BZ447647 Front Frame Block Comp, KF 10
17-2 EZ441797_ Amp. Frame KF-5005 2
17-3 EJ441810 Mic. Jack Table KF-5007 2: {
17-4 -EJ433844 Mic. Jack 2PMJ4 31-2-35 4 }
17-5x EZ225180 Nyton Collar, Jack LD-520 4.
17-6 © ZW260368 Washer (Fiber)D9.2x18x0.5t 4
17-7 Z2W375153 EJa «Nut. 6
17-8x —ZW447772 Tapping Screw #2 3x6(BR) 6
17-9 EJ441808 Head Phone Jack Stand KF-5006 V
17-10 ' EJ442078 Mic. Jack 3PMJ4 31-2-36 2
17-11x ZW436026 Washer (SPC)D9,2x15x0.5t 2
17-12, EV442102 Double Volume DJS50A 50
; kAx2 36-3-33
17-13x ER329308 Carbon/R. RD1/4 47k(J)
(Insu. type) 35-9-5
17-14 EM442113 VU Meter KL-266A-1(Front) 46-1-45 1
17-15 EM442124 VU Meter KL-266A-2 (Rear) 46-1-46 1
17-16x SZ223042 Shield Plate Moltplene
§tx30x85 RD-538 2
psy
17-17x ZW273756 Nut, M3 8
JACK PLATE BLOCK
17-18x BZS513314 Jack Plate Block Comp. KF-2 1
17-19 EJ441865 Jack Plate, w/jack KF-5002 1
17-20 ES446973 Slide Switch SL-242B4D 25-3-51
17-21 ER213873 Carbon/R. RD1/4 150k(3)
“insu, type) 359-5 4
.17-22 ER213715 Carbon/R. RD1/4 100k(J)
(Insu. type) 35-9-5 2
17-23, ER345756 Carbon/R. RD1/4 68k(J)
(Insu. type) 35-9-5 4
17-24 ER214536 Carbon/R. RD1/4 6.8k(J)
(Insu. type) 3-9-5 4
17-25 ER430288 Carbon/R. RD1/4 680(J)
(Insu. type) 35-9-5 4
17-26x ER345712 Carbon/R. RD1/4 22k(J) -
(Insu. type) 35-9-5 4
17-27x ER213647 Carbon/R. RD1/4 10k(J)
: (Insu, type) 35-9-5 4
ASSEMBLY BLOCK
17-28 EZ441764 Amp, Chassis KF-5001 1
17-29x E2Z397743_ P.C. Board Prop KD-2044 6
17-30x ZW413155 Screw, binding head 3x6 6
17-31 EZ441775 OSC, Shield Plate KF-5003 1
17-32. ZW447772 Tapping Screw #2 3x6(BR) 10
17-33x EZ441786 P.C, Board Retaining Prop KF-5004 3
17-34x ZW417025 Screw, binding head 3x8,
w/washer 3
17-35 EZ441821 Amp. Side Plate (Right) KF -5008 1
17-36 EZ441832 Amp. Side Plate (Left) KF-5008 1
17-37 EJ347670 22P Multi-jack-3 3250-022-
: 001S 31-4-13 4
17-38x EJ310871 18P Multi-jack J-2 3250-018-
001 31-4-11 2
17-39 EJ368785 14P Multi-jack 3250-014-001 31-4-14 2
17-40x EJ299834 6P Mate-N-Lock Plug Housing
1-480273-0 52-1-2 1
17-41x EJ229353 Socket Contact 60510-1 52-11
17-42x ZW273778 Earth Lug, M3 5
17-43, BA513325 P.B. P.C. Board Comp.
(MS-5022) 2
17-44 BAS13336 Rec, P.C. Board Comp.
" (MS-5023) 2
17-45 BA442282 OSC. P.C, Board Comp.
(KF-5010) 1
17-46 EZ441854 P.C. Board Retainer KF-5013 1
17-47 EZ411287 P.C. Board Retaining Metal LF-5027 2
17-48 ZW413741 Screw, binding head 3x8 3
When ordering parts, please describe Parts Number, Serial Number, and Model Number in detail.
