Akai GX-2800D-SS User Manual

PINCH WHEEL
PRESSURE SPRING Ce) ag
AP PLUNGER SOLENOID
ci
PINCH WHEEL ARM
a
r/ ©
CAPSTAN oO
PINCH WHEEL
—--————--— INDICATES "“STOP', "F.FWD.’ AND "RWD,’ MODE

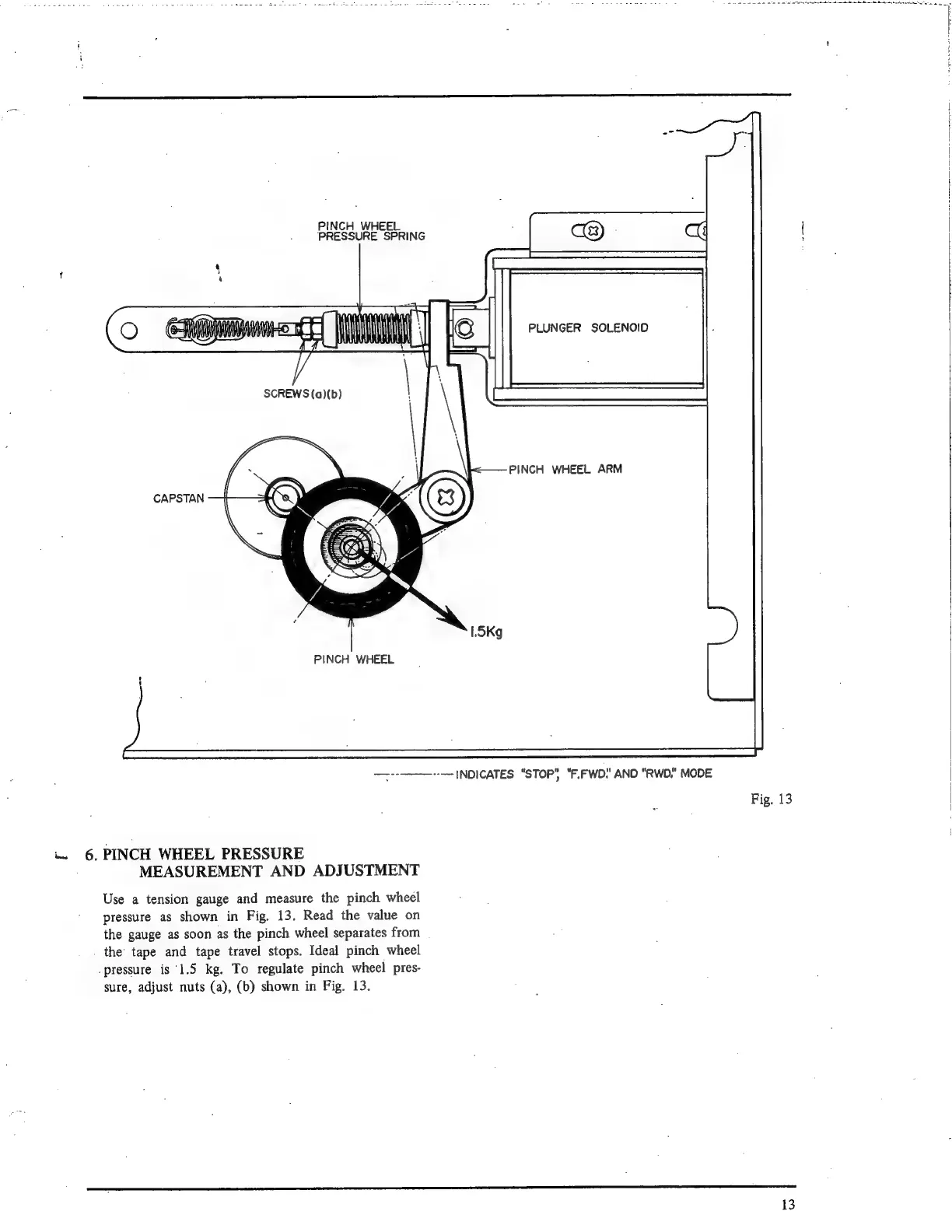

« 6, PINCH WHEEL PRESSURE
MEASUREMENT AND ADJUSTMENT
Use a tension gauge and measure the pinch wheel
pressure as shown in Fig. 13. Read the value on
the gauge as soon as the pinch wheel separates from
the tape and tape travel stops. Ideal pinch wheel
pressure is 1.5 kg. To regulate pinch wheel pres-
sure, adjust nuts (a), (b) shown in Fig. 13.
Fig. 13
13
