Akai GX-4000D

vil.

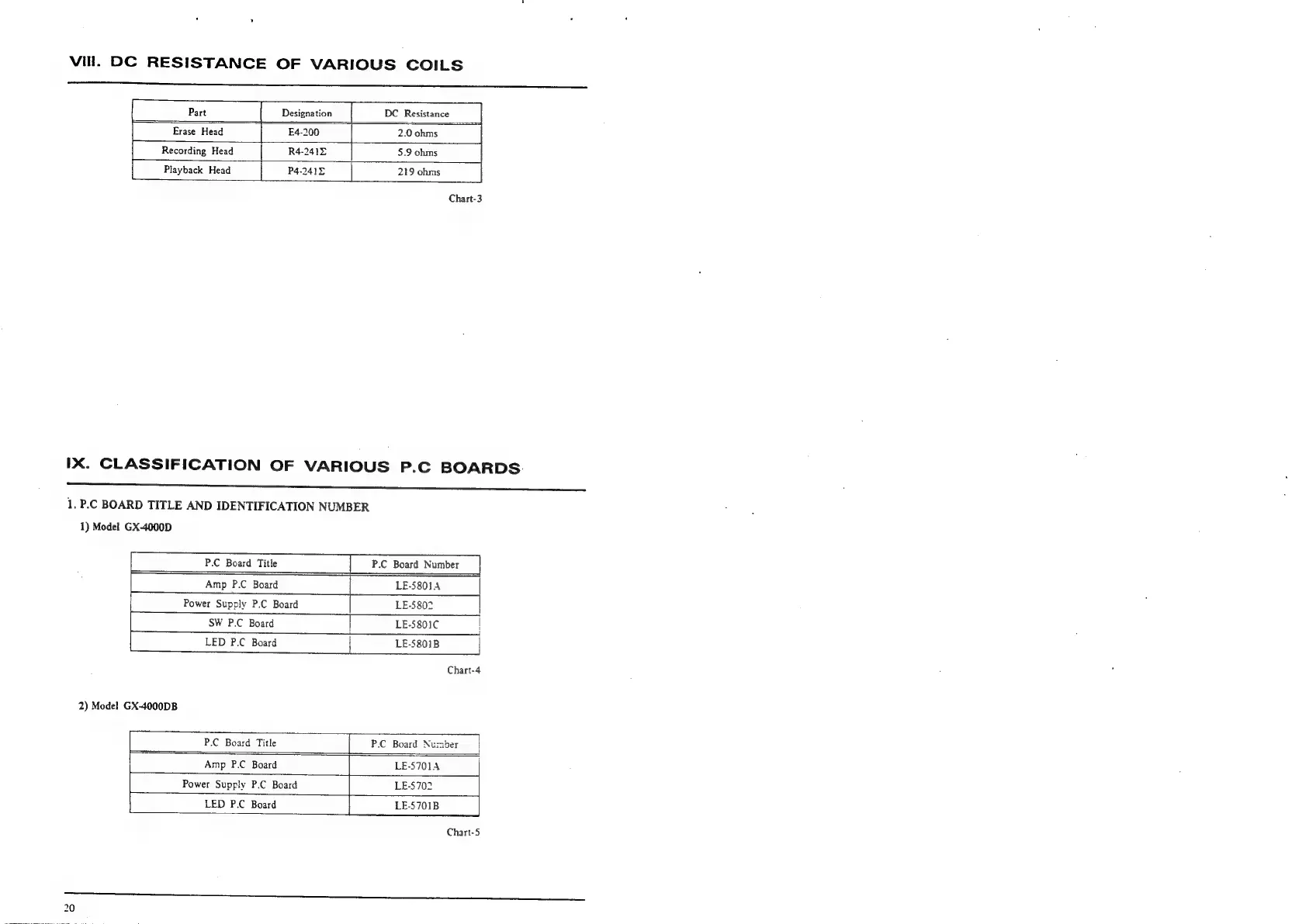

DC
RESISTANCE
OF
VARIOUS
COILS
Part Designation [| DC Resistance
Erase Head E4-200 | 2.0 ohms
Recording Head R42415 | 5.9 ohms
Playback Head P4241 219 ohms
Chart-3
IX.
CLASSIFICATION
OF
VARIOUS
P.C
BOARDS
1.
P.C
BOARD
TITLE
AND
IDENTIFICATION
NUMBER
1)
Model
GX-4000D
P.C Board Title P.C Board Number
Amp P.C Board | LE-58014 |
Power Supply P.C Board | LE-5802 |
|
SW
P.C
Board
|
LE-5801C
|
ae & ————————
|
LED
P.C
Board
|
LE-5801B
|
Chart-4
2) Model GX-4000DB
P.C Board Title P.C Board Number |
Amp P.C Board LE-S701A4 |
Power Supply P.C Board LE-5702 |
LED P.C Board LE-5701B
Chart-5
