Akai GX-4000D Service Manual

Hl. CONTROLS
@eeeeeeeees
Seaeeoeseeoense
eevseeseosr
eeeccece
st Oh OUR NS
PINCH ROLLER
CAPSTAN
REEL RETAINER (Left)
SUPPLY REEL TABLE
HEAD COVER
TAPE GUIDE
INDEX COUNTER & RESET BUTTON
TRACK SELECTOR
VU METERS (Left & Right)
OUTPUT VOLUME
. HEADPHONE JACK
RECORDING INDICATOR LAMP
. RECORDING SAFETY BUTTON
. AUTOMATIC STOP LEVER
REEL RETAINER (Right)
. TAKE-UP REEL TABLE
. RECORDING/PLAYBACK LEVER
18,
19.
20,
21.
22.
23.
24,
25.
26.
27.
28.
29.
30.
31.
32.
33.
34,

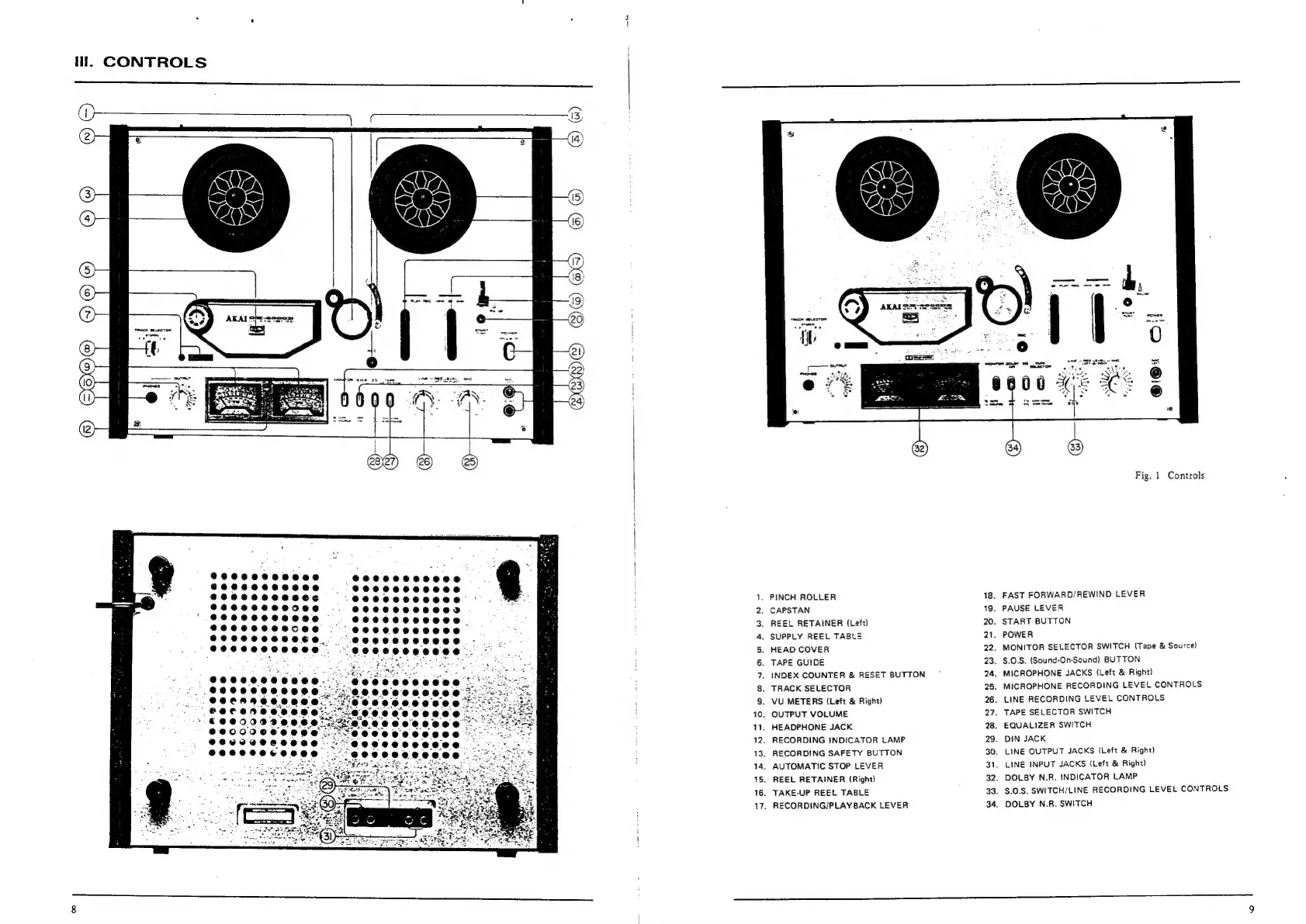

Fig. 1 Controls
FAST FORWARD/REWIND LEVER
PAUSE LEVER
START BUTTON
POWER
MONITOR SELECTOR SWITCH (Tape & Source)
$.0.S. (Sound-On-Sound) BUTTON
MICROPHONE JACKS (Left & Right)
MICROPHONE RECORDING LEVEL CONTROLS
LINE RECORDING LEVEL CONTROLS
TAPE SELECTOR SWITCH
EQUALIZER SWITCH
DIN JACK
LINE OUTPUT JACKS (Left & Right)
LINE INPUT JACKS (Left & Right)
DOLBY N.R. INDICATOR LAMP
$.0.S. SWITCH/LINE RECORDING LEVEL CONTROLS
DOLBY N.R. SWITCH

Akai GX-4000D Specifications

General

Track System	4-track, 2-channel, stereo/monaural system
Reel Size	Up to 7 inch reel
Tape Speeds	3 3⁄4 7 1⁄2 ips
Frequency Response	30Hz to 24kHz (7 1⁄2 ips)
Type	Reel to Reel
Heads	1 x erase
Motor	1 x capstan, 1 x reel
Wow and Flutter	0.08% (7.5 ips)
Output	0.775V (line)
Input	70mV (line)
Inputs	Line
Outputs	Line
