Akai GX-4000D Service Manual

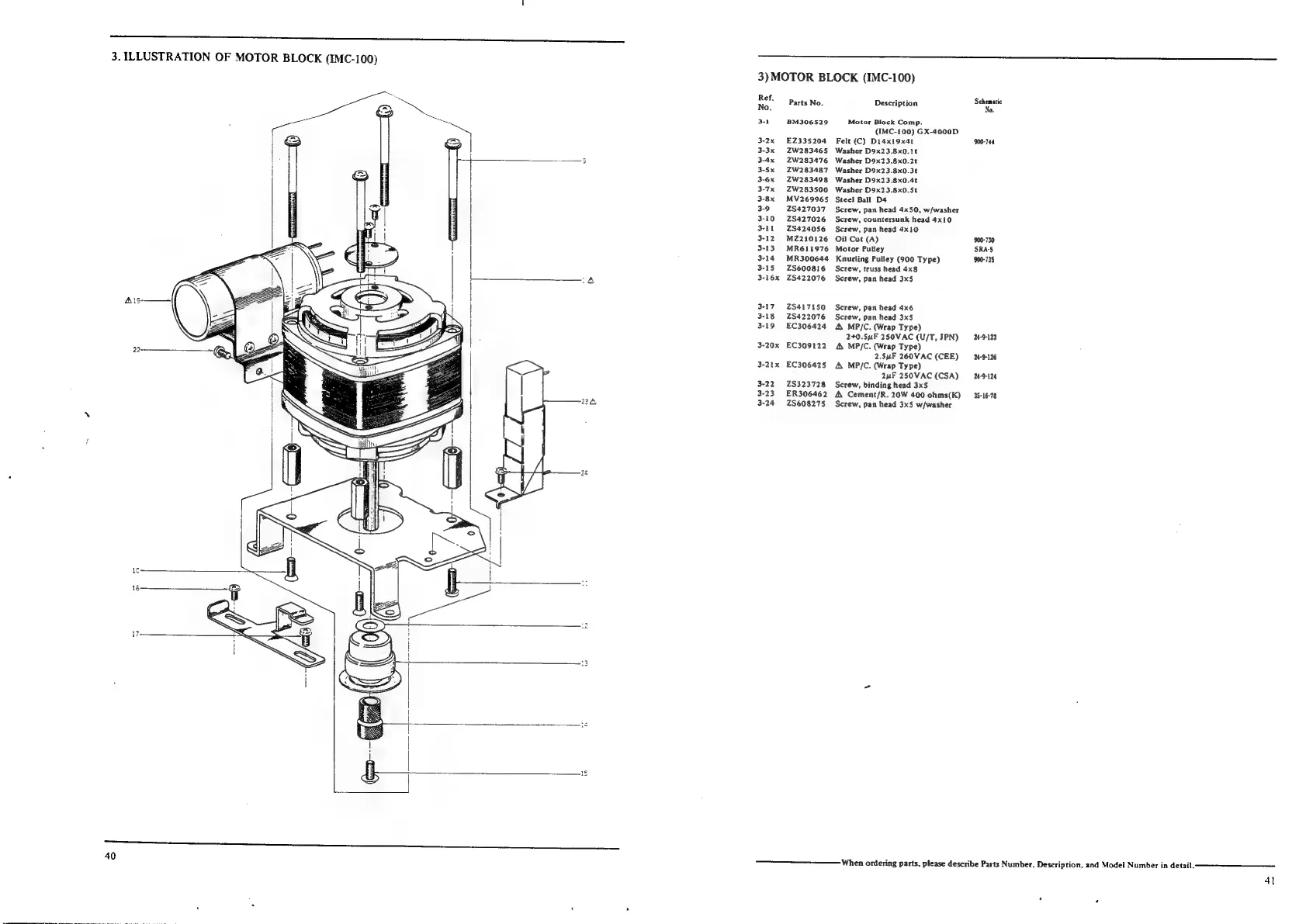

3. ILLUSTRATION OF MOTOR BLOCK (IMC-100)
3) MOTOR BLOCK (IMC-100)
nee Parts No. Description Saco
3-1 BM306529 Motor Block Comp.
{IMC-100) GX-4000D
3-2x EZ335204 Felt (C) D14x19x4t 900-744
3-3x ZW283465 Washer D9x23.8x0.1t
3-4x 2W283476 Washer D9x23.8x0.2t
3-Sx ZW283487 Washer D9x23.8x0.3t
3-6x ZW283498 Washer D9x23.8x0.4t
3-7x ZW283500 Washer D9x23.8x0.St
3-8x MV269965 Steel Ball D4
3-9 ZS427037 Screw, pan head 4x50, w/washer
3-10 ZS427026 Screw, countersunk head 4x10
3-11 ZS424056 Screw, pan head 4x10
3-12 MZ2i0126 Oi} Cut (A) 900-730
3-13. MR611976 Motor Pulley SRAS
3-14 MR300644 Knurling Pulley (900 Type) 900-735
3-18 ZS600816 Screw, truss head 4x8
3-16x ZS422076 Screw, pan head 3x$
3-17 ZS417150 Screw, pan head 4x6
3-18 ZS422076 Screw, pan head 3x5
3-19 EC306424 A MP/C. (Wrap Type)
2+0.5uF 250VAC (U/T, JPN) 24-9-123
3-20x EC309122 A MP/C. (Wrap Type)
2.5uF 260VAC (CEE) 24-126
3-2tx EC306425 A MP/C. (Wrap Type)
2uF 250VAC (CSA) 24-9124
3-22 ZS323728 Screw, binding head 3x5
3-23 ER306462 A Cement/R. 20W 400 ohms(K) 35-16-78
3-24 ZS608275 Screw, pan head 3x5 w/washer
When ordering parts, please describe Parts Number, Description, and Model Number in detail.
41

Akai GX-4000D Specifications

General

Track System	4-track, 2-channel, stereo/monaural system
Reel Size	Up to 7 inch reel
Tape Speeds	3 3⁄4 7 1⁄2 ips
Frequency Response	30Hz to 24kHz (7 1⁄2 ips)
Type	Reel to Reel
Heads	1 x erase
Motor	1 x capstan, 1 x reel
Wow and Flutter	0.08% (7.5 ips)
Output	0.775V (line)
Input	70mV (line)
Inputs	Line
Outputs	Line
