Akai GX-4000D

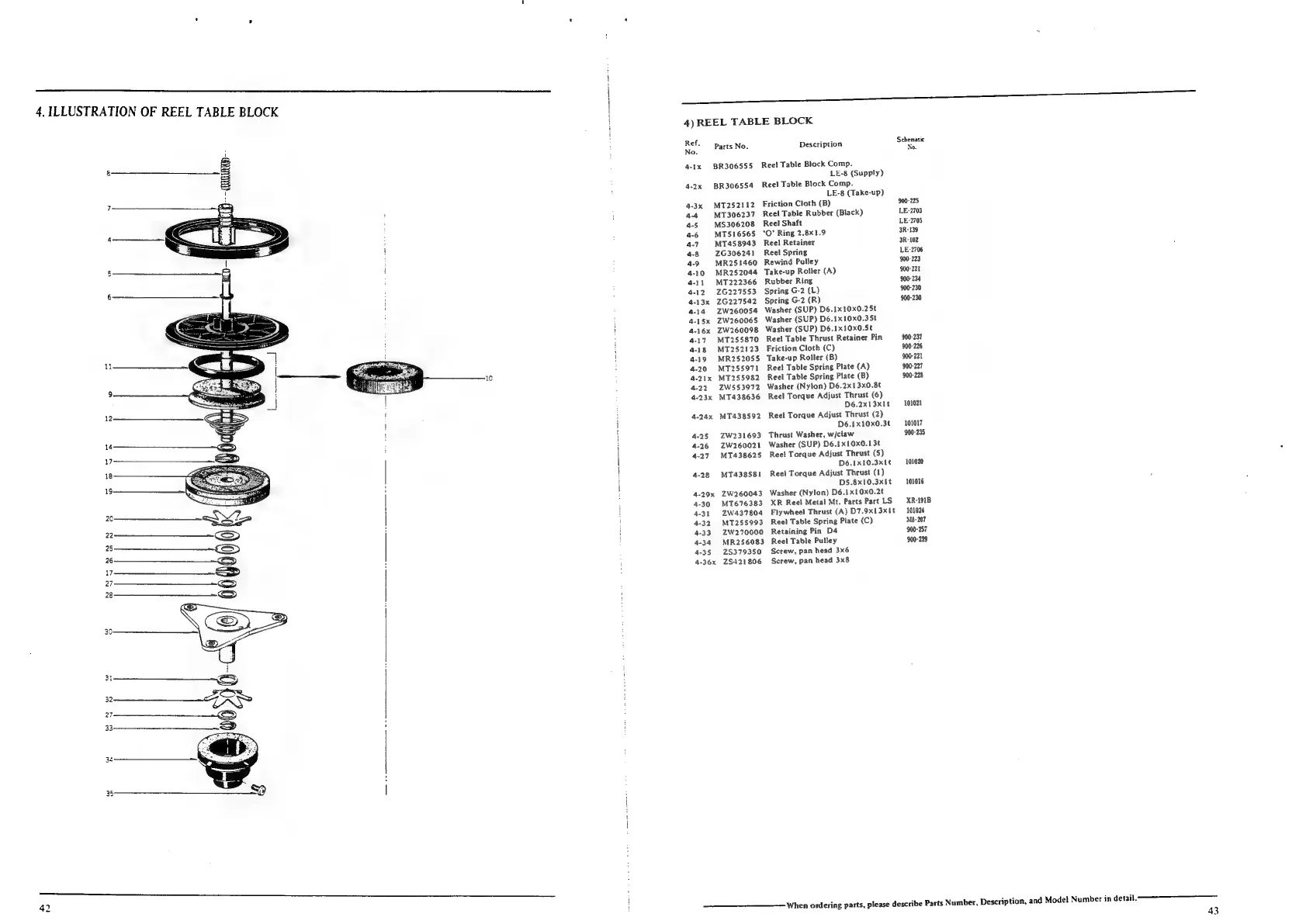

4, ILLUSTRATION OF REEL TABLE BLOCK
|
|
|
ee
4) REEL TABLE BLOCK
Ref.
No.
4-Ix
4-2x
4-3x
44
4-5
4-6
4-7
4-8
4-10
4-11
4-12
4-13x
4-14
4-15x
4-16x
4:17
4-18
4-19
4-20
4-21x
4-22
4-23x
4-24x
4-25
4-26
4-27
4-28
4-29K
4-30
4-31
4-32
4-33
4-34
4-35
4-36x
Parts No.
BR306555
BR306554
MT252112
MT306237
MS306208
MT516565
MT458943
ZG306241
MR251460
MR252044
MT222366
2G227583
2G227542
ZW260054
ZW260065
ZW260098
MT2S$5870
MT252123
MR252055
MT255971
MT255982
ZW5$3972
MT438636
MT438592
ZW231693
ZW260021
MT438625
MT438581
ZW260043
MT676383
ZW437804
MT255993
ZW270000
MR2S6083
ZS379350
ZS421806
Description
Ree! Table Block Comp.
LE-8 (Supply)
Reel Table Block Comp.
LE-8 (Take-up)
Friction Cloth (B)
Reel Table Rubber (Black)
Reel Shaft
‘O’ Ring 2.8x1.9
Reel Retainer
Reel Spring
Rewind Pulley
Take-up Roller (A)
Rubber Ring
Spring G-2 (L)
Spring G-2 (R)
Washer (SUP) D6.1x10x0.25t
Washer (SUP) D6.1x10x0.35t
Washer (SUP) D6.1x10x0.St
Reel Table Thrust Retainer Pin
Friction Cloth (C)
Take-up Roller (B)
Reet Table Spring Plate (A)
Reel Table Spring Plate (B)
Washer (Nylon) D6.2x13x0.8t
Reel Torque Adjust Thrust (6)
D6.2x13xIt
Reel Torque Adjust Thrust (2)
D6.1x10x0.3t
Thrust Washer, w/claw
Washer (SUP) D6.1x10x0.13t
Reel Torque Adjust Thrust (5)
D6.1x10.3x1t
Reel Torque Adjust Thrust (1)
DS5.8x10.3x1t
Washer (Nylon) D6.1x10x0.2t
XR Reel Metal Mt. Parts Part LS
Flywheel Thrust (A) D7.9x13xIt
Reel Table Spring Plate (C)
Retaining Pin D4
Reel Table Pulley
Screw, pan head 3x6
Screw, pan head 3x8
Schematic
No.
900-225
LE-2703
LE-2705
3R-139
3R-102
LE-2706
900-223
900-221
900-234
900-230
900-230
900-237
900-226
900-221
900-227
900-228
191021
101017
900-235
101020
101016
XR-191B
101024
8-207
900-257
900-239
When
ordering
parts,
please
describe
Parts
Number,
Description,
and
Modet
Number
in
detail.
—=————~~
43
