Akai GX-635D Service Manual

SYSTEM CONTROL P.C
EOARD TH-IOIs
UTLÉ9S OÍHEilISE SPECIFIED
[L RE9rSrcË rt OH6 r/4ÍrJ'
aLL CÀPAC|mS
tN
!F
5OWV(J)
POWEF
TRÀNSrcilER
IS DIFFftNTrcCORDIÈG ÍO
AREA
(+J
M^iK
lrcrdTS Not &LÁR CAFÁCIÍdS
i9
tií1l:,J1
:::i;:il:

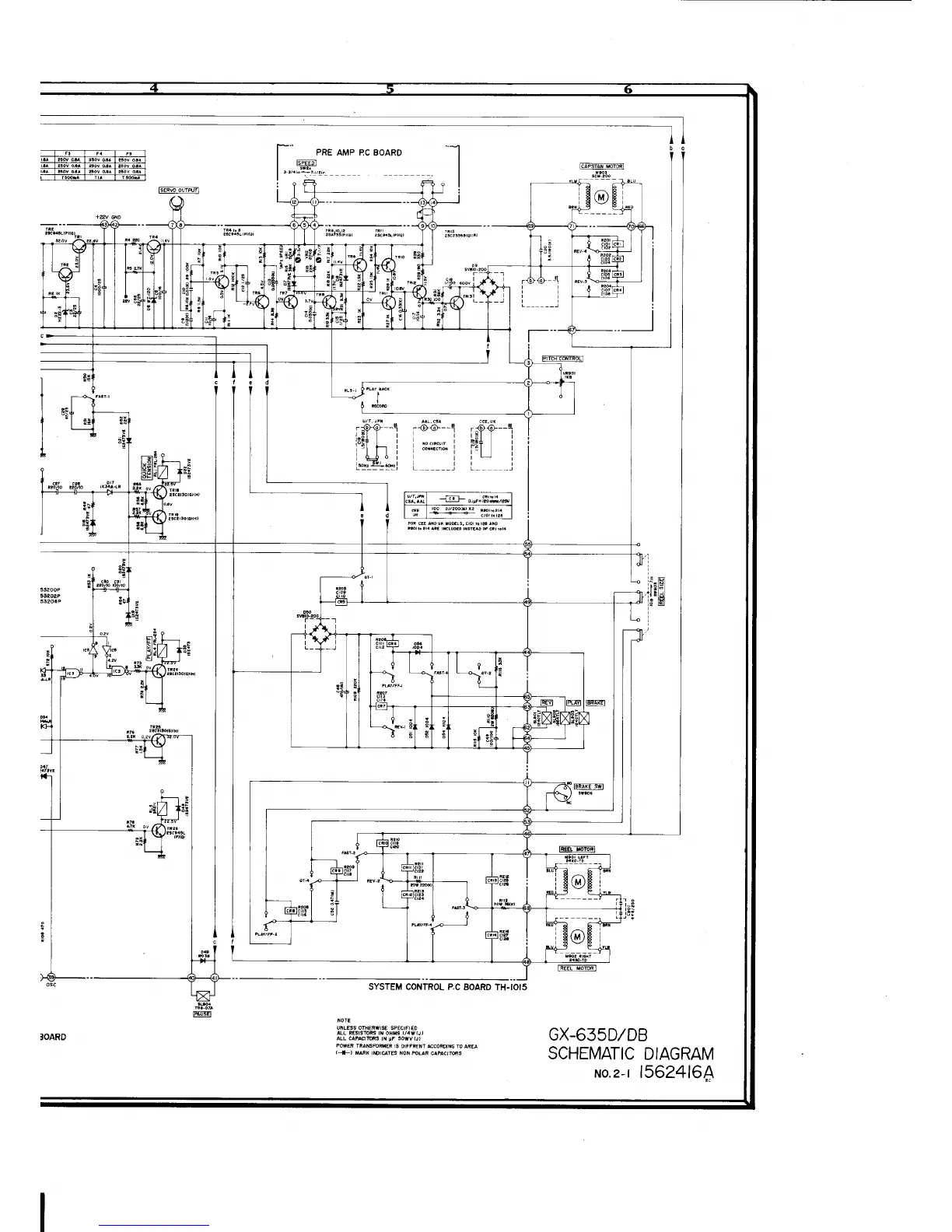

GX-635D/DB
SCHEMATIC
DIAGRAM
No.2-r
1562416A

Akai GX-635D Specifications

General

Track system	4-track, 2-channel stereo
Total Harmonic Distortion	0.8%
Outputs	0.775V (line)
Type	Reel to Reel
Heads	3 heads
Motor	2 x reel, 1 x capstan
Reel size	up to 10.5 inch reel
Wow and flutter	0.06% (7 1⁄2 ips)
Frequency response	30Hz to 26kHz (7 1/2 ips)
Signal to Noise Ratio	62dB
Dimensions	440 x 440 x 240 mm (17.3 x 17.3 x 9.4 inches)
Output Voltage	0.775V
Tape speeds	3 3/4 ips, 7 1/2 ips
