Akai GX-635D Service Manual

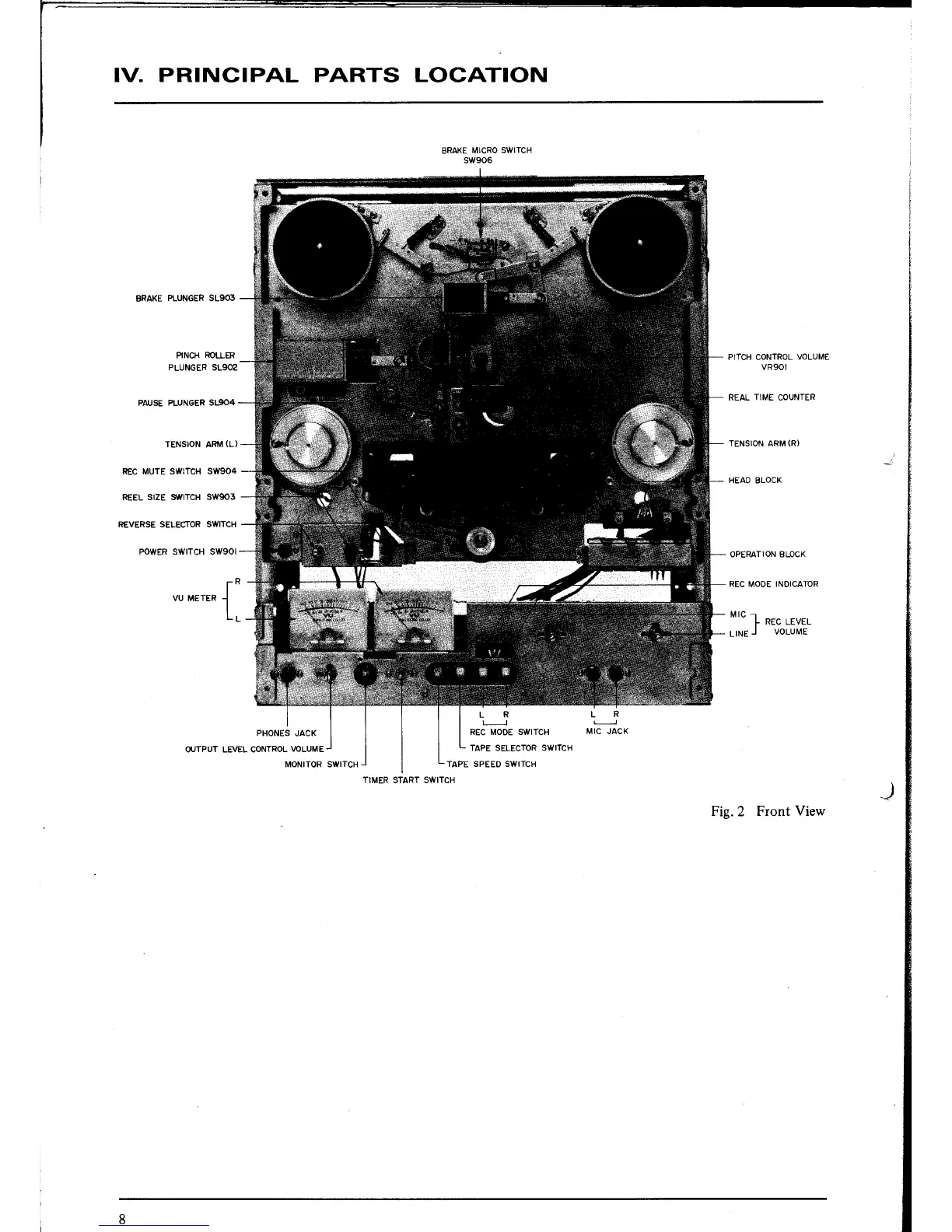

IV. PRINCIPAL PARTS LOCATION
BRAKE
MICRO
SWITCH
sw906
BRAKE
PLUNGER SL9O3
RNCH ROLLER
PLUNGER SL9O2
PAJSE
PLUNGER SL9O4
PIÍCH
CONTROL
VOLUME
VR9OI
REAL
TIME
COUNÍER
TENSION
ARM
(R)
HEAD
BLOCK
PHONES JACK
OIJTPUT LEVEL CONTROL
VOLUME
LR
REC MOOE SWITCH
TAPE SELECTOR SWITCH
OPERATION ELOCK
REC
MODE
INOICATOR
MIC
r
l-
RÊc
LEVEL
rrrup
J VOLUME
Fig.2 Front
View
MONITOR SWITCH
TAPE SPEED SWITCH
J
TENSION
ARM(L}
REC MUTE SWITCH
SW9O4
REEL SIZE S1,VITCH SW9O3
REVERSE SELECTOR SWITCH
POWER SWTTCH SW90l
",n,.**
{.
IIMER START SWITCH

Akai GX-635D Specifications

General

Track system	4-track, 2-channel stereo
Total Harmonic Distortion	0.8%
Outputs	0.775V (line)
Type	Reel to Reel
Heads	3 heads
Motor	2 x reel, 1 x capstan
Reel size	up to 10.5 inch reel
Wow and flutter	0.06% (7 1⁄2 ips)
Frequency response	30Hz to 26kHz (7 1/2 ips)
Signal to Noise Ratio	62dB
Dimensions	440 x 440 x 240 mm (17.3 x 17.3 x 9.4 inches)
Output Voltage	0.775V
Tape speeds	3 3/4 ips, 7 1/2 ips
