Akai GX-635D Service Manual

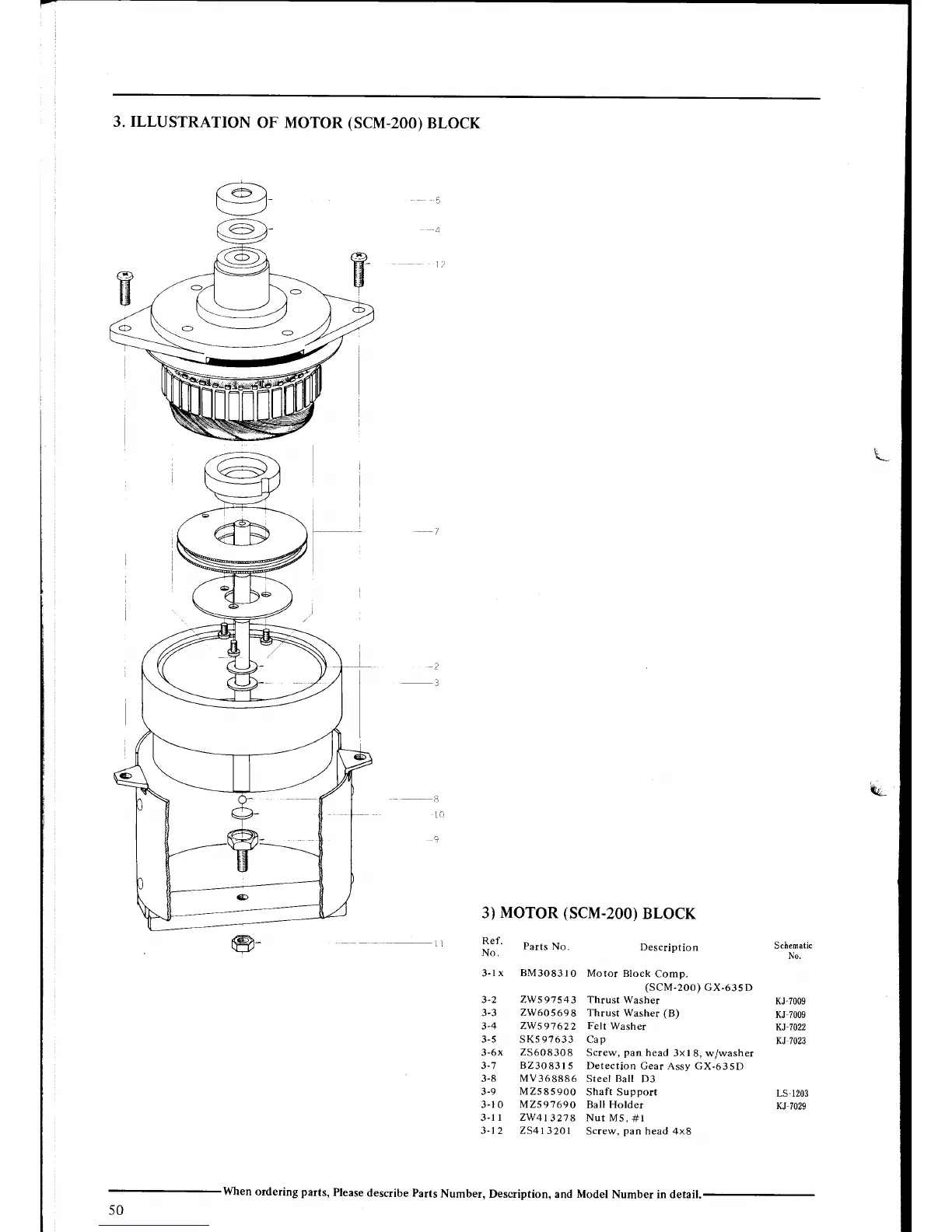

3. TLLUSTRATION
OF MOTOR
(SCM-200)
BLOCK
1
2
ii
10
9
@-
iL
Schenatic
No,
3)
MOTOR
(SCM.2OO)
BLOCK
Pef
1i;.
Parts
No.
Descripr
ion
3-1
x BM3O83l0
Motor
Block
Comp.
(scM-200)
GX-63s D
3-2 2W59"1543 Thrust
Washer
KJ-?009
3-3
2W6O5698
Thrust Washer
(B)
KJ 2009
3-4
2W597622
Felt
Washer
KJ.7022
3-5 SKs 97633
Cap
Kl ?023
3-6x
25608308
Screw,
pan
head
3xl
8, w/washer
3-7
82308315
Detection
Gear Assy GX-635D
3-8
MV368886
Steel Ball
D3
3-9
M2585900
Shaft Support
LS-1203
3-10
M259769O
Ball Holder
KJ
?029
3-1
1 2W4r3218
Nut
M5. #1
3-12 25413201
Screw,
pan
head 4x8
50
When
ordering parts,
Please
describe Parts
Number,
Description,
and
Model
Number in detail.

Akai GX-635D Specifications

General

Track system	4-track, 2-channel stereo
Total Harmonic Distortion	0.8%
Outputs	0.775V (line)
Type	Reel to Reel
Heads	3 heads
Motor	2 x reel, 1 x capstan
Reel size	up to 10.5 inch reel
Wow and flutter	0.06% (7 1⁄2 ips)
Frequency response	30Hz to 26kHz (7 1/2 ips)
Signal to Noise Ratio	62dB
Dimensions	440 x 440 x 240 mm (17.3 x 17.3 x 9.4 inches)
Output Voltage	0.775V
Tape speeds	3 3/4 ips, 7 1/2 ips
