Akai GX-635D Service Manual

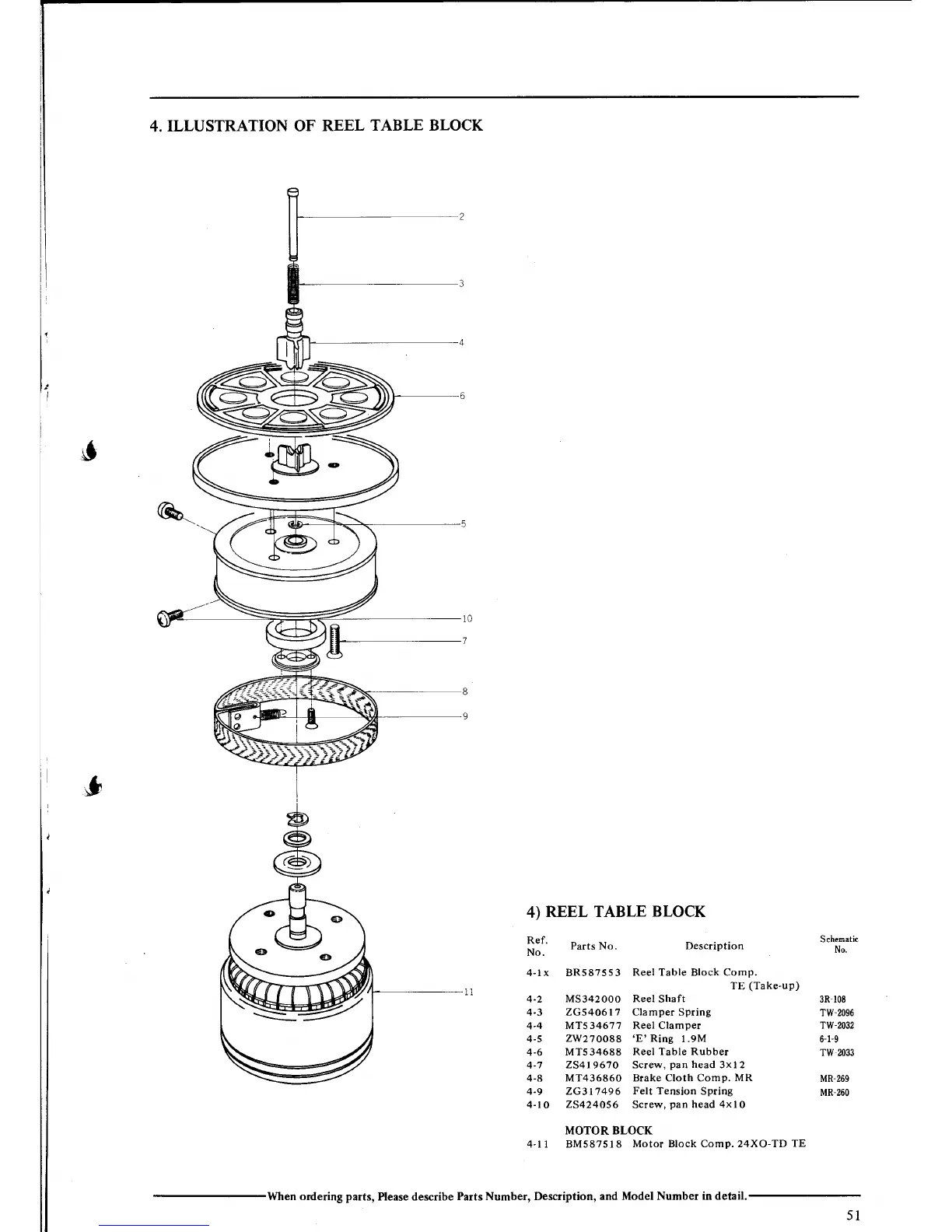

4. ILLUSTRATION OF
REEL
TABLE BLOCK
$
s
4)
REEL TABLE BLOCK
ft::
Parts No. DescÍiption
4-lx 8R587553
Reel Table Block Comp.
TE
(Take-uP)
4-2 MS34200o
Reel
Shaft
4-3
ZGS4O6|7 Clamper Spring
4-4
M't534611 Reel Clamper
4-S
ZW27OO88'E'Ring
1.9M
4-6
MTs34688
Reel Table Rubber
4-'l
ZS4l961O Screw,
pan
head
3x12
4-8 MT43ó86O
Brake Cloth Comp. MR
4-9 2G317496
Felt Tension
Spring
4-lO
25424056
Screw,
pan
head 4xl0
MOTOR BLOCK
4-11, 8M587518
Motor Block Comp.24XO-TD
TE
Schenatic
No.
3R 108
TW-2096
TW-2032
6-r-9
TW 2033
MR-269
MR-260
When ordering
parts,
Please describe
Parts Number, Description,
and Model Number in detail.
<1

Akai GX-635D Specifications

General

Track system	4-track, 2-channel stereo
Total Harmonic Distortion	0.8%
Outputs	0.775V (line)
Type	Reel to Reel
Heads	3 heads
Motor	2 x reel, 1 x capstan
Reel size	up to 10.5 inch reel
Wow and flutter	0.06% (7 1⁄2 ips)
Frequency response	30Hz to 26kHz (7 1/2 ips)
Signal to Noise Ratio	62dB
Dimensions	440 x 440 x 240 mm (17.3 x 17.3 x 9.4 inches)
Output Voltage	0.775V
Tape speeds	3 3/4 ips, 7 1/2 ips
