Akai HT014A-5086F User Manual

!

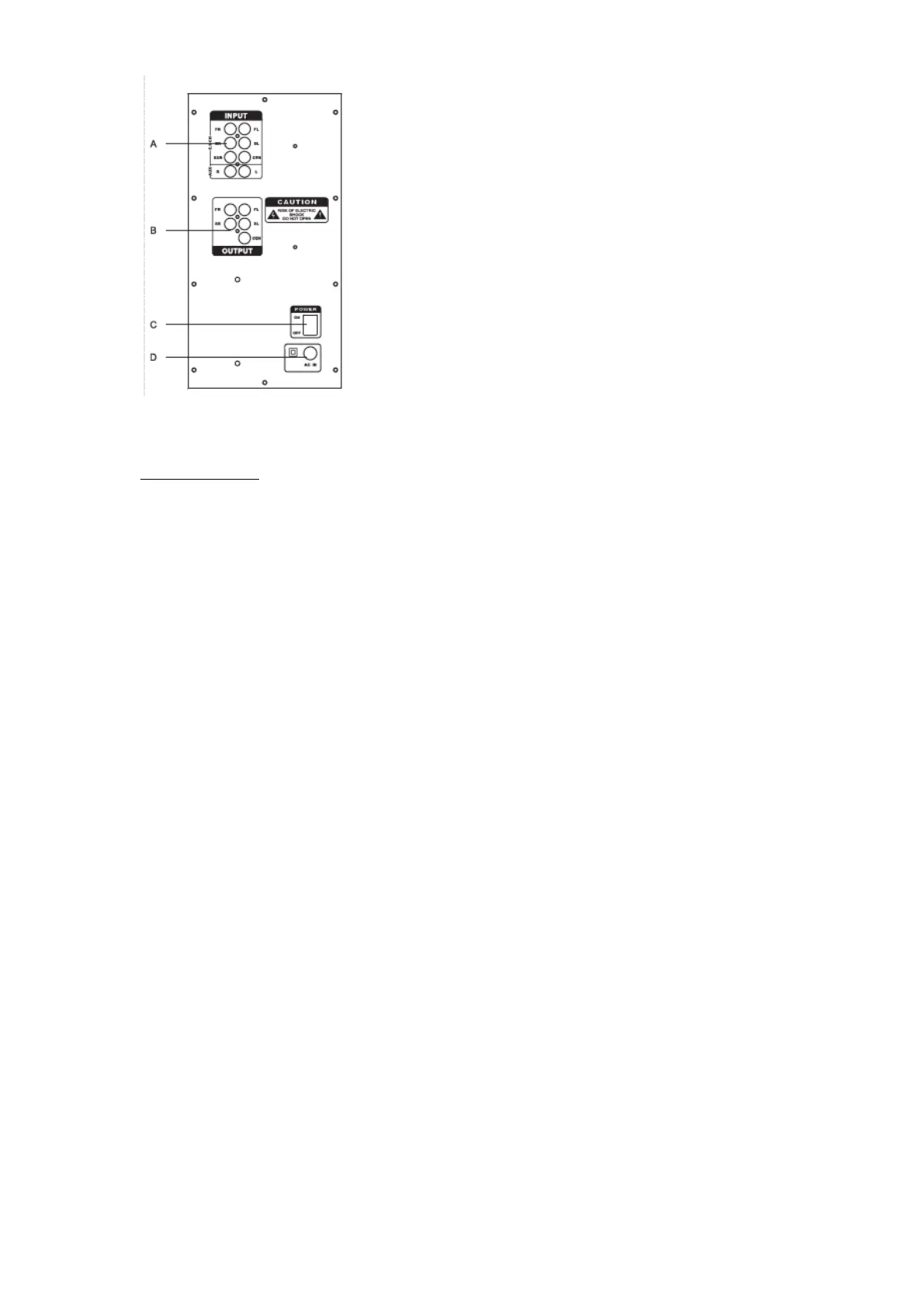

A.!STEREO!INPUT!
!!!RCA!Connectors!to!take!input!from!external!audio!source!
!
B.!AC!3!/5.1!OUTPUT!
!!Front!left,!front!right,!rear!left,!rear!right!&!center!
!
C.!POWER!ON/OFF!switch!
!
D.!POWER!INPUT!
!!AC220V!50Hz!
!
!
!
)
)
)
UNIT)OPERATION)
1) First! plug!the!cable!of!satellite!into!the!output! jack!on!rear!panel!of!woofer,! one!end!of!audio!
cable!connected!into!the!input!jack!on !rear!panel!of!woofer,!the !other!end!connected!into!the!
output!jack!of!the!computer!or!any!external!audio!source.!
2) Connect!the!AC!power!cord!with!power! socket!to! the!main,!press! ON/OFF! switch! on!the!rear!
panel!of!subwoofer,!LED!indicator!light!up!in!red!color,!the!units!enters!into!A UX !m od e.!
3) Press!“Volume!+! /!Volume! -!”!button!on! woofer!front!panel! or! remote!to!adjust! the!volume! in!
playback!mode.!Press!“BASS+/BASS-”!button!on!remote!to!adjust!the!bass.!
4) Press! ”Prev! /! N ext”! button! on! woofer! front! panel! or! remote! choose! previous/next! son g! in!
playback!mode.!
5) Press!”Play/Pause”!button!on! woofer!front!panel!or!remote! to!pause!the!music! in!playback!
mode.Press!again!to!resume!the!music.!
6) When!USB!or!SD!card!is!playing,!press!“input”!button!to!cycle!th rou gh !AU X/B T/U S B/S D.!
7) After!Stop!using!the!unit,!turn!off!the!power!switch,!unplug!the!power!cord.!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

Akai HT014A-5086F Specifications

Audio Specifications

output power	45W+12W×5
frequency response	40Hz~20KHz
impedance	Subwoofer 8 Ohm, Satellite 4 Ohm
S/N ratio	≥80dB
isolation sensitivity	≥45dB
distortion	≤0.3% at 1W output @1KHz
speaker	5.25’’+3’’

Power

power	AC220V 50Hz
