Akai MPK225

Technical Specification
Technical SpecificationTechnical Specification
Technical Specification

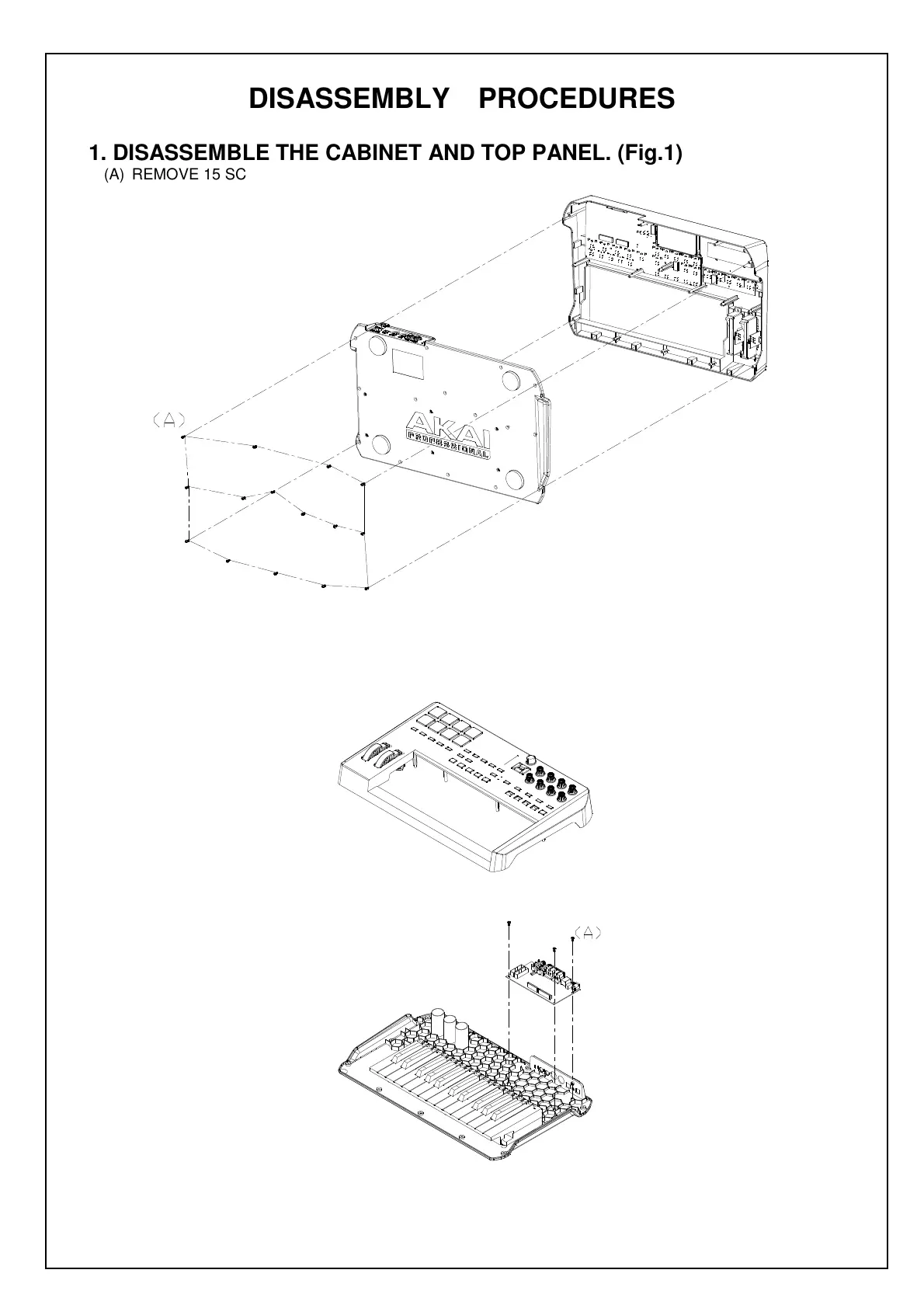

DISASSEMBLY PROCEDURES
1. DISASSEMBLE THE CABINET AND TOP PANEL. (Fig.1)
(A) REMOVE 15 SCREWS FROM BOTTOM PANEL.
(Fig.1)
2. DISASSEMBLE THE MAIN PCB ASS’Y. (Fig.2)
(A) REMOVE 3 SCREWS FROM THE MAIN PCB ASS’Y.
(Fig.2)
