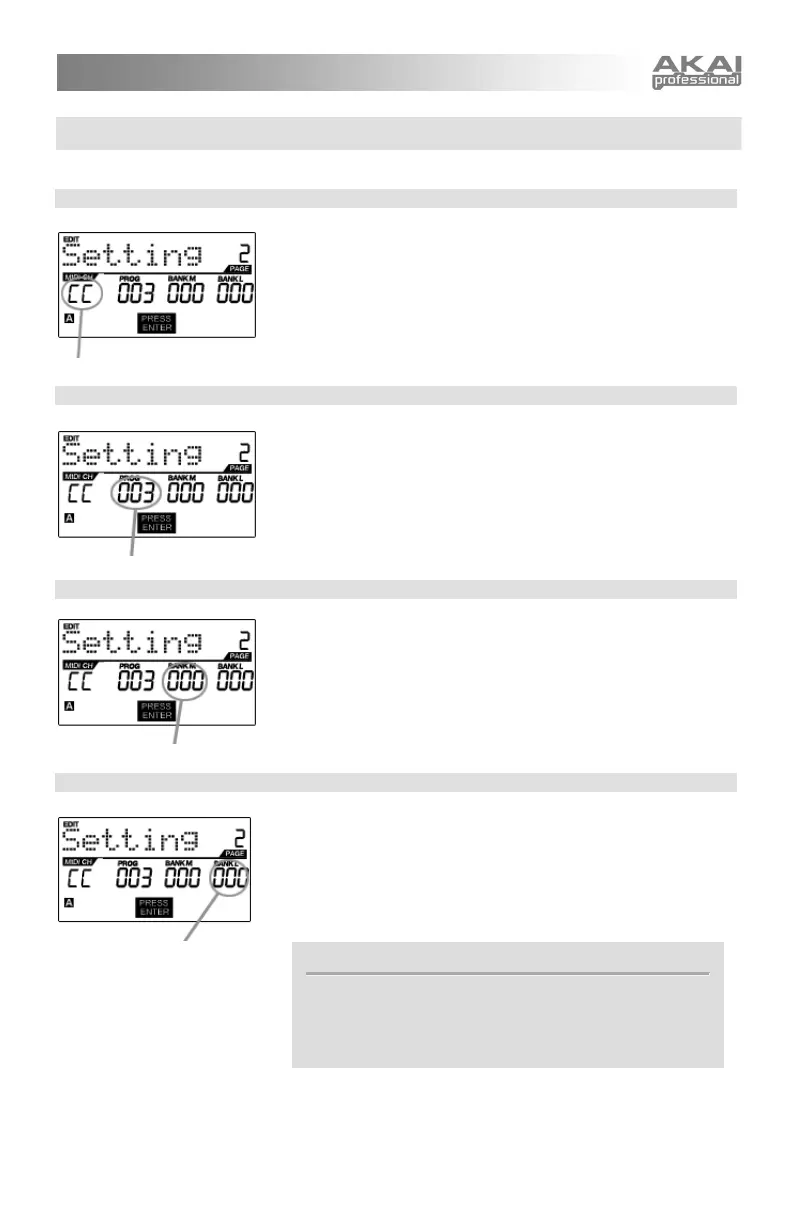

MIDI PORT/CHANNEL FIELD
PORGRAM CHANGE FIELD
BANK M FIELD
BANK L FIELD
Note:
You can also configure buttons to send Program Change messages
only, without specifying Bank M and Bank L. While editing Bank M
and Bank L fields of a button, use [VALUE] dial to set Bank M and
Bank L to ‘OFF’ (beyond 000). This will cause the button to transmit
only a Program Change message.
PROGRAM CHANGE PARAMETERS
The following list of parameters can be accessed if the button event type is set to “Program Change”.
MIDI CHANNEL FIELD
Program Change messages can be sent on one of two MIDI Ports, A or B, and
one of 16 MIDI Channels on each port (i.e. A7). You may also assign Program
Change to use the MIDI Common Channel.
1. Use the [<] button to select MIDI Port/Channel field.
2. While in MIDI Port/Channel field, use [VALUE] dial to select desired MIDI
Port and Channel.
3. Use the [>] button to select the next field.
PROGRAM CHANGE FIELD
In this field you can set which Program Change Number the button will transmit
when it is pressed.
1. Use [<] or [>] buttons to select Program Change field.
2. While in Program Change field, use [VALUE] dial to select desired Program
Change Number.
3. Use the [>] button to select the next field.
BANK M FIELD
Bank M describes the Most Significant Bit (MSB) of information.
1. Use [<] or [>] buttons to select Bank M field.
2. While in Bank M field, use [VALUE] dial to select desired value.
3. Use the [>] button to select the next field.
BANK L FIELD
Bank L describes the Least Significant Bit (MSB) of information.
1. Use the [<] or [>] buttons to select Bank L field.
2. While in Bank L field, use [VALUE] dial to select desired value.
