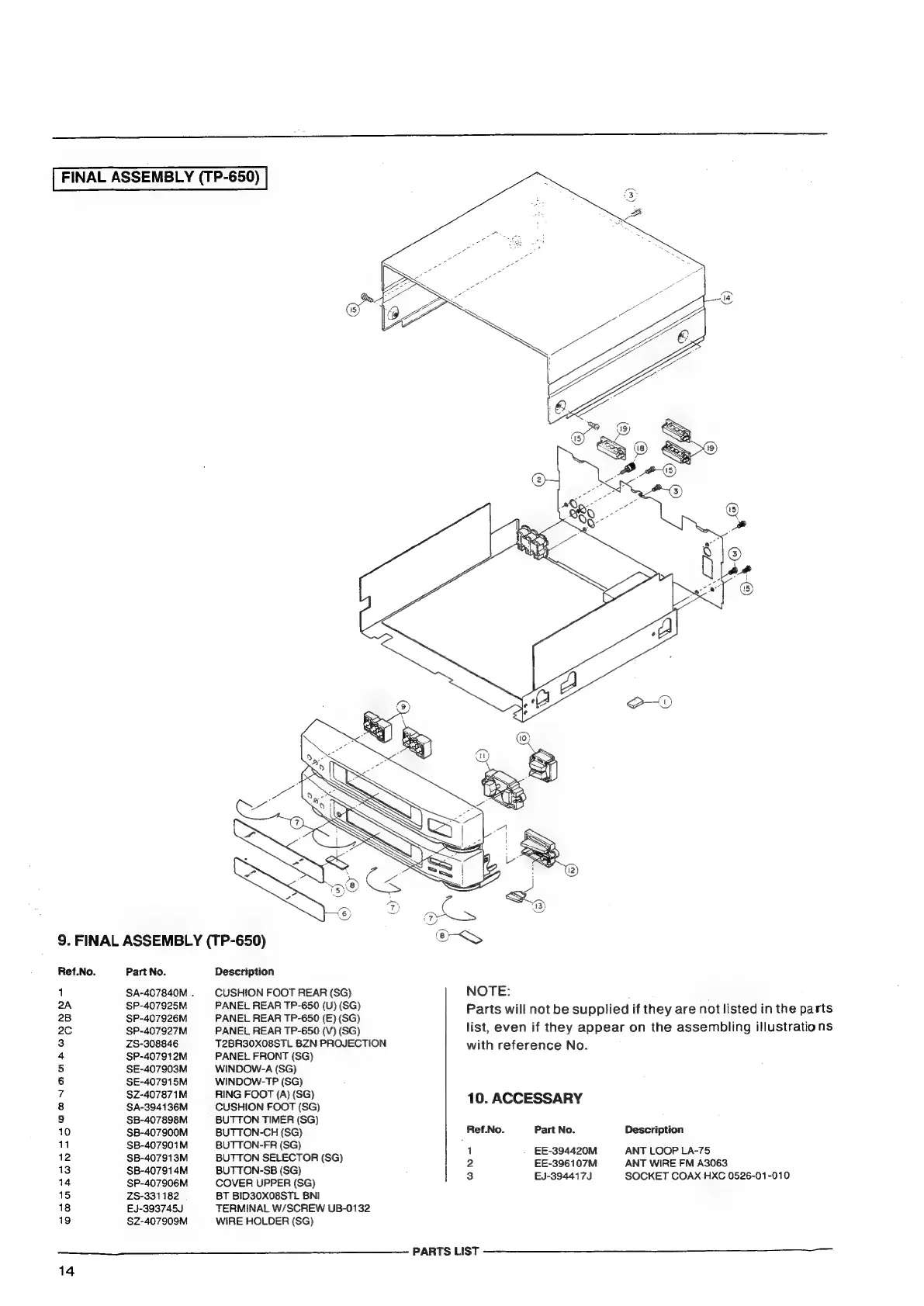

FINAL ASSEMBLY (TP-650)
Ref.No. Part No.
1 SA-407840M ..
2A SP-407925M
2B SP-407926M
2c SP-407927M
3 ZS-308846
4 SP-407912M
5 SE-407903M
6 SE-407915M
7 $2Z-407871M
8 SA-394136M
9 SB-407898M
10 SB-407900M
11 SB-407901M
12 SB-407913M
13 SB-407914M
14 SP-407906M
15 ZS-331182 .
18 EJ-393745J
19 $Z-407909M
Description
CUSHION FOOT REAR (SG)
PANEL REAR TP-650 (U) (SG)
PANEL REAR TP-650 (E) (SG)
PANEL REAR TP-650 (V) (SG)
T2BR30X08STL BZN PROJECTION
PANEL FRONT (SG)
WINDOW-A (SG)
WINDOW-TP (SG)
RING FOOT (A) (SG)
CUSHION FOOT (SG)
BUTTON TIMER (SG)
BUTTON-CH (SG)
BUTTON-FR (SG)
BUTTON SELECTOR (SG)
BUTTON-SB (SG)
COVER UPPER (SG)
BT BID3OX08STL BNI
TERMINAL W/SCREW UB-0132
WIRE HOLDER (SG)
NOTE:
Parts will not be supplied if they are not listed in the parts
list, even if they appear on the assembling illustrations
with reference No.
10. ACCESSARY
Ref.No. Part No. Description
1 EE-394420M ANT LOOP LA-75
a EE-396107M ANT WIRE FM A3063
3 EJ-394417J SOCKET COAX HXC 0526-01-010
