Akai MX-550

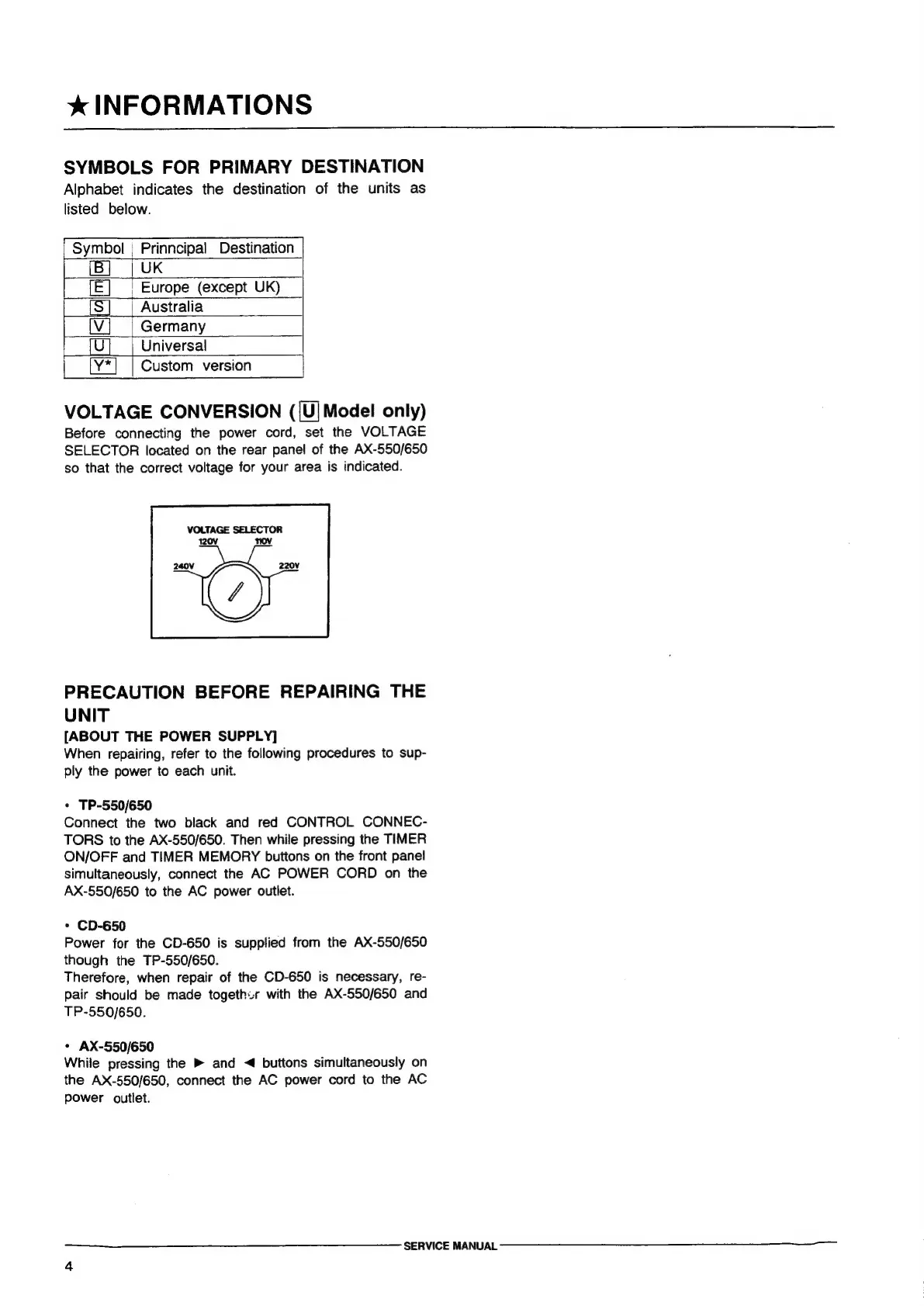

* INFORMATIONS
SYMBOLS FOR PRIMARY DESTINATION
Alphabet indicates the destination of the units as
listed below.
Symbol | Prinncipal Destination
(B] UK
| Europe (except UK)
[S]__| Australia
Germany
| Universal
Custom version
VOLTAGE CONVERSION ([U] Model only)
Before connecting the power cord, set the VOLTAGE
SELECTOR located on the rear panel of the AX-550/650
so that the correct voltage for your area is indicated.
VOLTAGE SELECTOR
RO
PRECAUTION BEFORE REPAIRING THE
UNIT
[ABOUT THE POWER SUPPLY]
When repairing, refer to the following procedures to sup-
ply the power to each unit.
* TP-550/650
Connect the two black and red CONTROL CONNEC-
TORS to the AX-550/650. Then while pressing the TIMER
ON/OFF and TIMER MEMORY buttons on the front panel
simultaneously, connect the AC POWER CORD on the
AX-550/650 to the AC power outlet.
* CD-650
Power for the CD-650 is supplied from the AX-550/650
though the TP-550/650.
Therefore, when repair of the CD-650 is necessary, re-
pair should be made togethir with the AX-550/650 and
TP-550/650.
« AX-550/650
While pressing the » and < buttons simultaneously on
the AX-550/650, connect the AC power cord to the AC
power outlet.
SERVICE MANJAL WH
