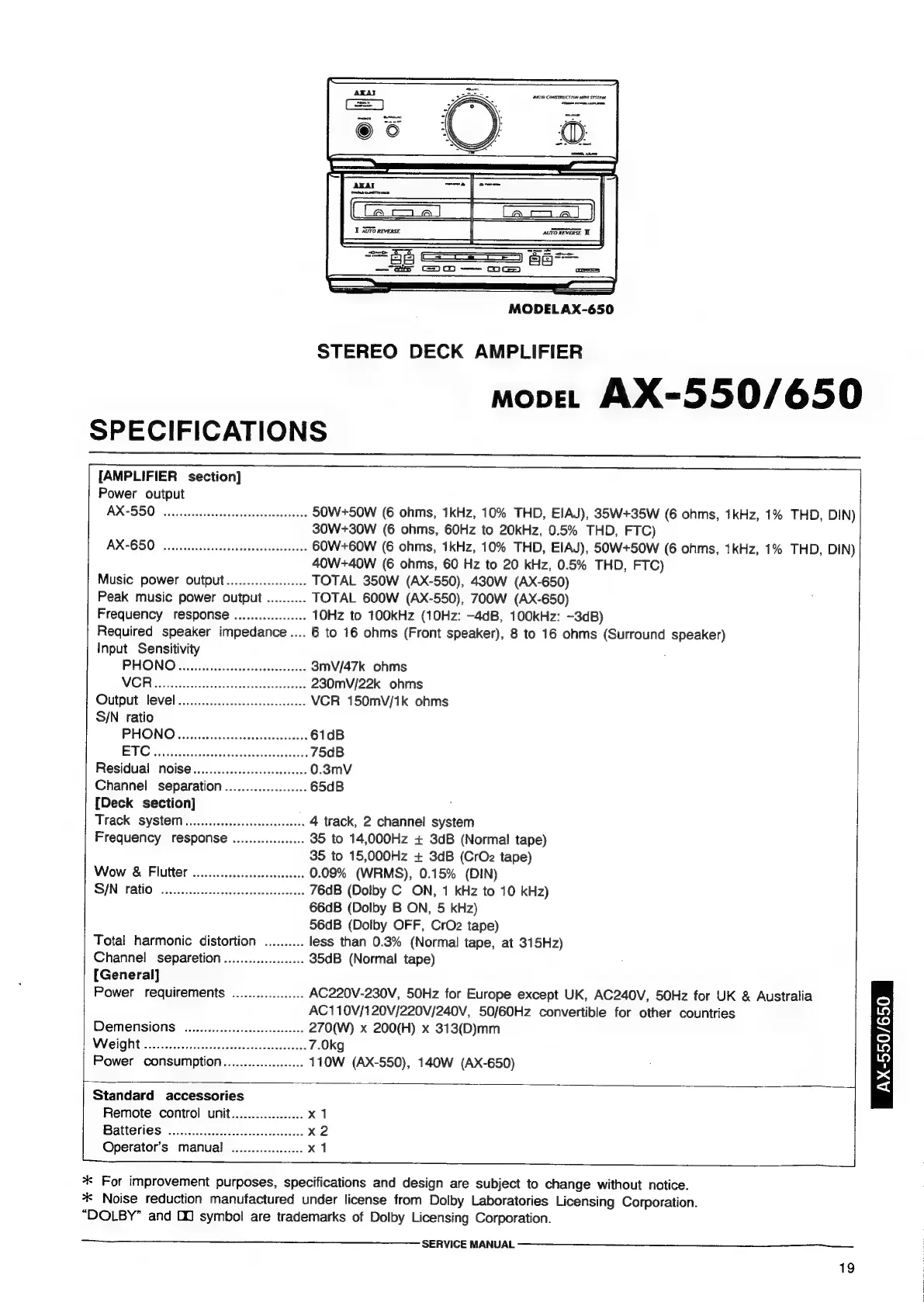

MODELAX-650
STEREO
DECK
AMPLIFIER
move.
AX=-550/650
SPECIFICATIONS
[AMPLIFIER
section]
Power
output
AXE55
0»
vraveisesitiveseduetevsad
deteagvnee
50W+50W
(6
ohms,
1kHz,
10%
THD,
EIAJ),
35W+35W
(6
ohms,
1kHz,
1%
THD,
DIN)
30W+30W
(6
ohms,
60Hz
to
20kHz,
0.5%
THD,
FTC)
AX-650
si
ciseateiitataes
avtechseceeere
6O0W+60W
(6
ohms,
1kHz,
10%
THD,
EIAJ),
50W+50W
(6
ohms,
1kHz,
1%
THD,
DIN)
40W+40W
(6
ohms,
60
Hz
to
20
kHz,
0.5%
THD,
FTC)
Music
power
output...........0.......
TOTAL
350W
(AX-550),
430W
(AX-650)
Peak
music
power
output
..........
TOTAL
600W
(AX-550),
700W
(AX-650)
Frequency
response
..................
10Hz
to
100kKHz
(10Hz:
-4dB,
100kHz:
~3dB)
Required
speaker
impedance
....
6
to
16
ohms
(Front
speaker),
8
to
16
ohms
(Surround
speaker)
Input
Sensitivity
PHONO
sis
cericissercettbn
each
3mV/47k
ohms
VGR
vedic
tess
ketene
230mV/22k
ohms
Output
level
.........
eee
VCR
150mV/1k
ohms
S/N
ratio
PHONO
fccsssccteeesctoctaesieent
61dB
nd
5
Oana
enrerre
rr
rer
tereeece
err
rer
75dB
Residual
noise...............:::ccsseee
0.3mV
Channel
separation
................0
65dB
[Deck
section]
Track
SYSIOM
.......cceceeseeeeseeeeeees
4
track,
2
channel
system
Frequency
response
..................
35
to
14,000Hz
+
3dB
(Normal
tape)
35
to
15,000Hz
+
3dB
(CrOz
tape)
Wow
&
Flutter
........
cc
ceeeeeeees
0.09%
(WRMS),
0.15%
(DIN)
SIN
Patio
ives.
ssscpianistisees
ek
osleeccess
76dB
(Dolby
C
ON,
1
kHz
to
10
kHz)
66dB
(Dolby
B
ON,
5
kHz)
56dB
(Dolby
OFF,
CrOz
tape)
Total
harmonic
distortion
..........
less
than
0.3%
(Normal
tape,
at
315Hz)
Channel
separetion
..................
35dB
(Normal
tape)
[General]
Power
requirements
...............
AC220V-230V,
50Hz
for
Europe
except
UK,
AC240V,
50Hz
for
UK
&
Australia
AC110V/120V/220V/240V,
50/60Hz
convertible
for
other
countries
Demensions
.00........ececceeseeeees
270(W)
x
200(H)
x
313(D)mm
WE
IG
Mee
ccdee
oc
tessseceesateckowstiveteeaels
7.0kg
Power
consumption...............0
110W
(AX-550),
140W
(AX-650)
|
Standard
accessories
Remote
control
unit..................
x1
ee
**
For
improvement
purposes,
specifications
and
design
are
subject
to
change
without
notice.
*
Noise
reduction
manufactured
under
license
from
Dolby
Laboratories
Licensing
Corporation.
“DOLBY”
and
O0
symbol
are
trademarks
of
Dolby
Licensing
Corporation.
SERVICE
MANUAL
—_-
19
AX-550/650
