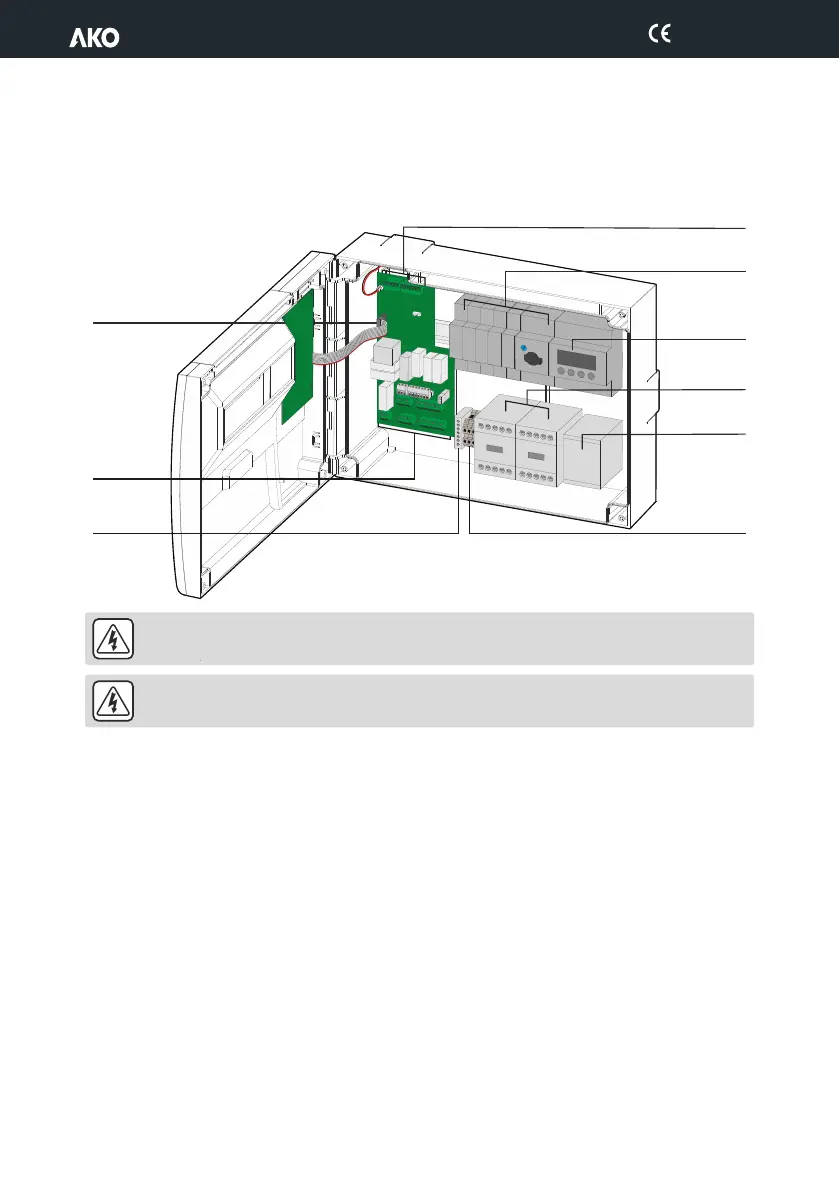

6.- Component location
ATTENTION: Make sure to turn of the equipment's power supply before handling it, as different areas
may be energised.
IMPORTANT: The availability of the elements described depends on the panel model.
Identification
F1: Defrost circuit breaker
FM: Operation circuit breaker
Q1: Compressor motor guard
Q3: Evaporator fan motor guard
K1M: Compressor contactor
K2M: Defrost contactor
K4M: Evaporator fan contactor
T2: EVC Transformer
EVC1: Controller for expansion valve
Probe and communications terminal
Protections
Expansion
valve
controller
(EVC)
Contactors
EVC
Transformer
Control cable connector
Control
terminal
Earth
terminal
Power supply
terminal and
expansion valve
control
