AKO PROPlus 3PH BASIC - 3 Installation

1569H042 Ed.03
4
3.- Installation
90º

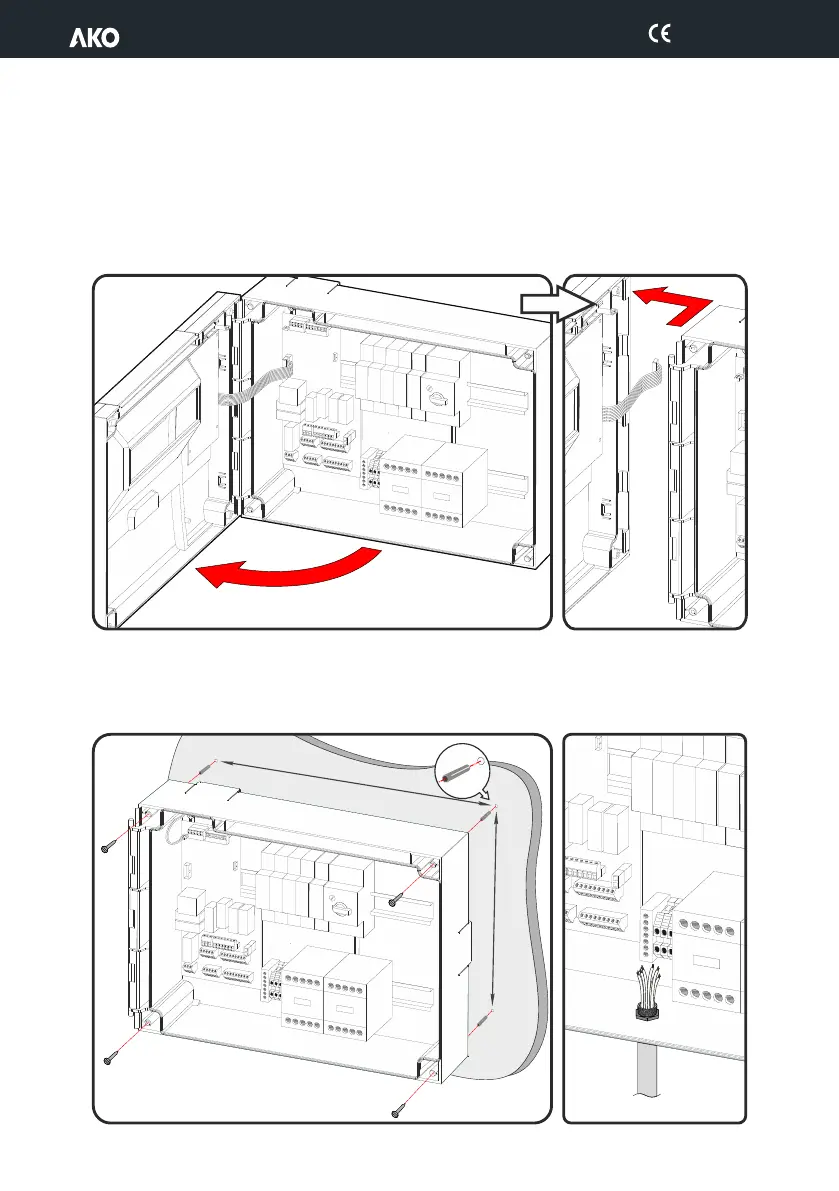

A.- Open and remove cover.
B.- Using the included template, make 4 holes in the wall and fasten the unit to the wall using the supplied screws.
Make a hole in the bottom of the box to pass the cables through, and a suitable gland should be used to main the
IP65 degree of protection.
355
255
