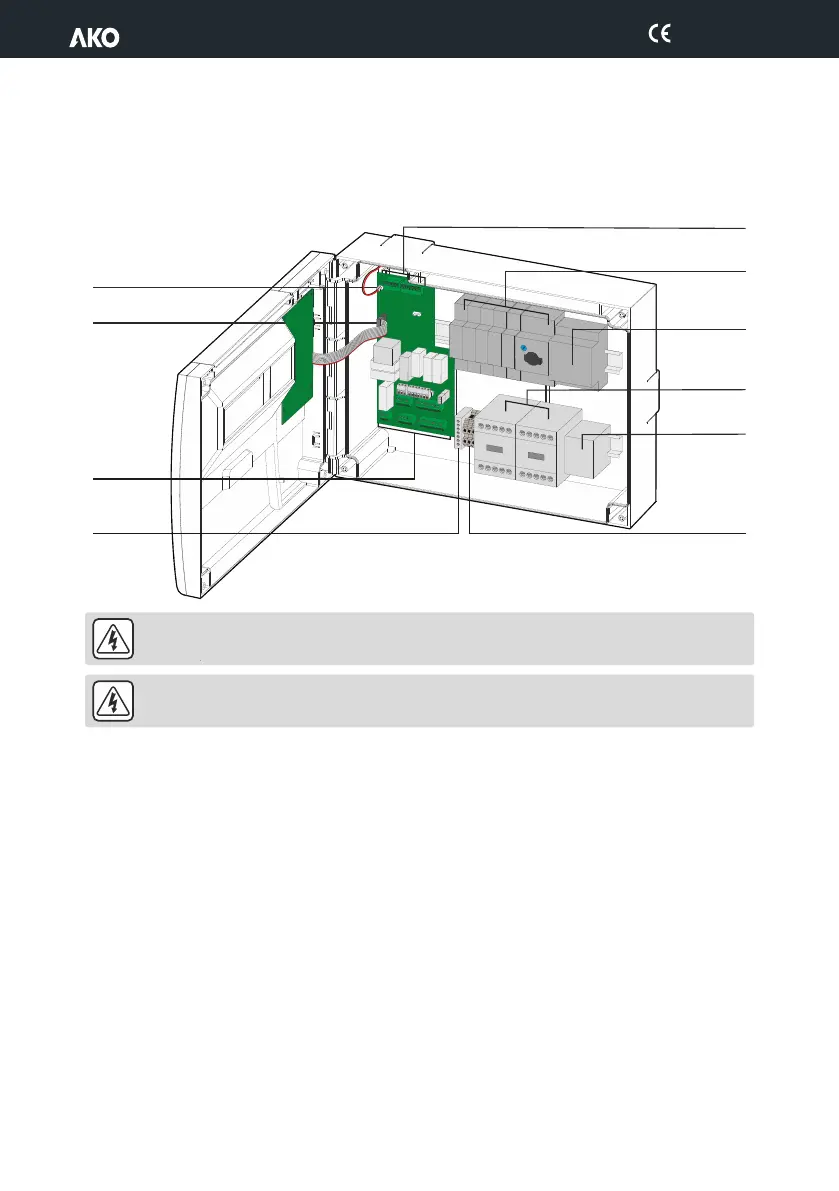

6.- Component location
ATTENTION: Make sure to turn of the equipment's power supply before handling it, as different areas
may be energised.
IMPORTANT: The availability of the elements described depends on the panel model.
Identification
F1: Defrost circuit breaker
FM: Operation circuit breaker
Q1: Compressor motor guard
Q2: Condenser fan motor guard
Q3: Evaporator fan motor guard
K1M: Compressor contactor
K2M: Defrost contactor
K3M: Condenser fan contactor
K4M: Evaporator fan contactor
T1: Insulation transformer
D1: Phase detector
Battery connector
Probe and communications terminal
Protections
Phase detector
Contactors
Insulation
transformer
Control cable connector
Control
terminal
Earth
terminal
Power supply
terminal
11
