AKO PROPlus 3PH - 12 Connectivity

1565H041 Ed.03
12.- Connectivity

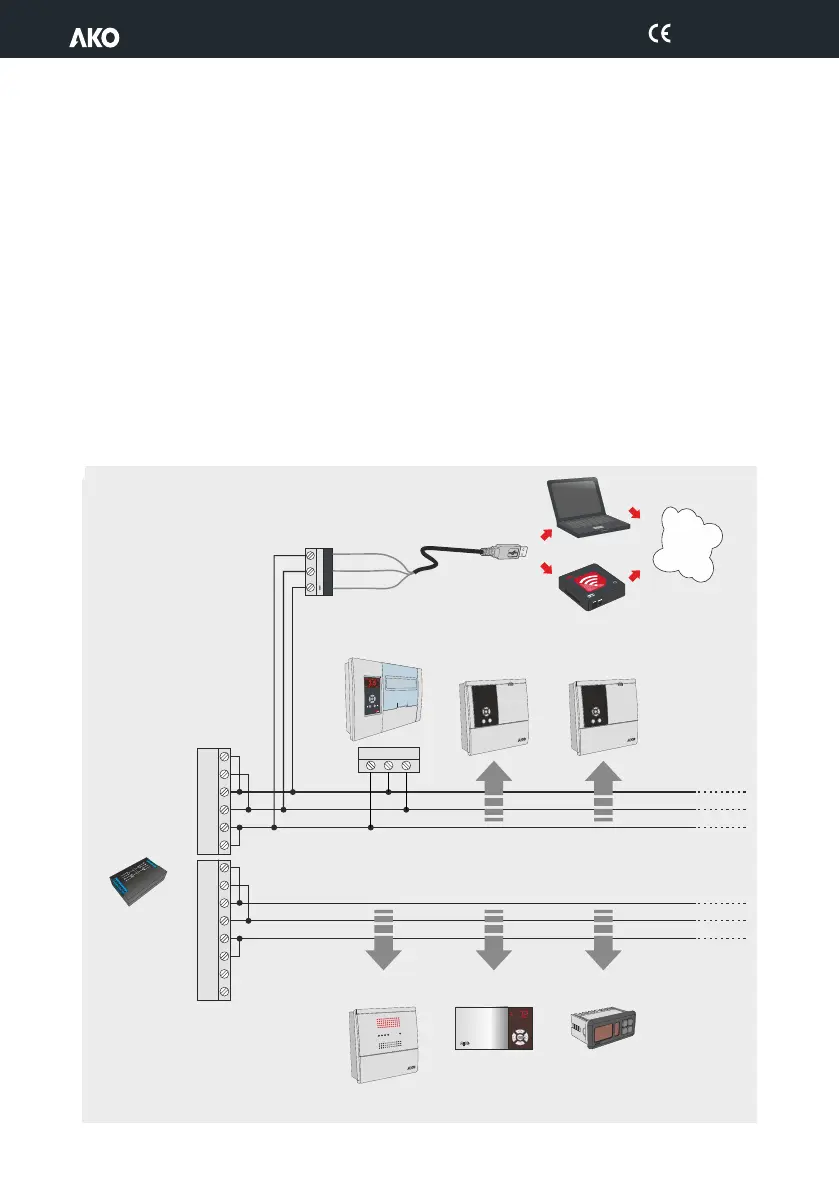

The unit has a port for RS485 date connection (MODBUS), which can be managed using a PC.
Up to 127 units can be connected to a PC with AKONet (AKO-5010), or to the AKO-5012 web server. Each of these
units should have a different MODBUS address, that is defined using the Communication address of the q menu.
Using the AKONet software it is possible to display and capture the data of any connected unit, and configure its
parameters.
AKONet: Management software for AKO units with RS485 (MODBUS) communication. If it is installed in a server the
software can be accessed from any PC in the network or even from Internet (it requires the server having connection to
Internet and fixed IP).
AKO-5012: Web server that includes the AKONet software. It can carry out the same functions as the PC, with the
advantage of having a server dedicated to communication with the units.
*If over 31 units are connected, use an AKO-80024 connector.
ESC
?
SET
ESC
?
SET
A-
A-
B+
B+
A-
A-
B+
B+
GND
GND
GND
GND
GND
+12V
CAMRegis
PROPlus 3PH
AKO-156xx
PROPlus/
PROPlus BASIC
AKO-80024*
repeater
AKO-80039
converter
Amarillo
Rojo
Negro
PC with
AKONet
(AKO-5010)
GND
Tr-
Tr-Tr-
B
Tr+
Tr+Tr+
AKO-5012
web server
or
LAN
A
Gnd
Gnd
+
R
S-485
GND
CAMAlarm/
COMBIAlarm
AKO-D146xx-C
ºC
ºF
AKO-DARWIN
controller with
built-in
communication
28
