1565H041 Ed.03
Delay at Start-up
They allow delaying the start up of the installation when it receives electricity. This parameter prevents continuous
stoppages and start-ups of the installation in exceptional situations, for example, after a power cut, in test periods
or during the commissioning of the installation.
This is established in minutes.
Decimal point
It defines is the degree's decimal points are displayed or not, and therefore the resolution of the unit.
v
Pressure controller config.
It chooses the correct option depending on the type of pressure switch and their connection (See page 12):
Ÿ Combined HP-LP: A HP-LP pressure switch is used.
Ÿ LP indep. AC input: The low pressure switch is separate and is connected to the AC input.
Ÿ LP indep digital input: The low pressure switch is separate and is connected to the digital input 2.
u
Date
If configures the current date (year, month, day).
Hour
If configures the current time (day of the week, day, minute).
A

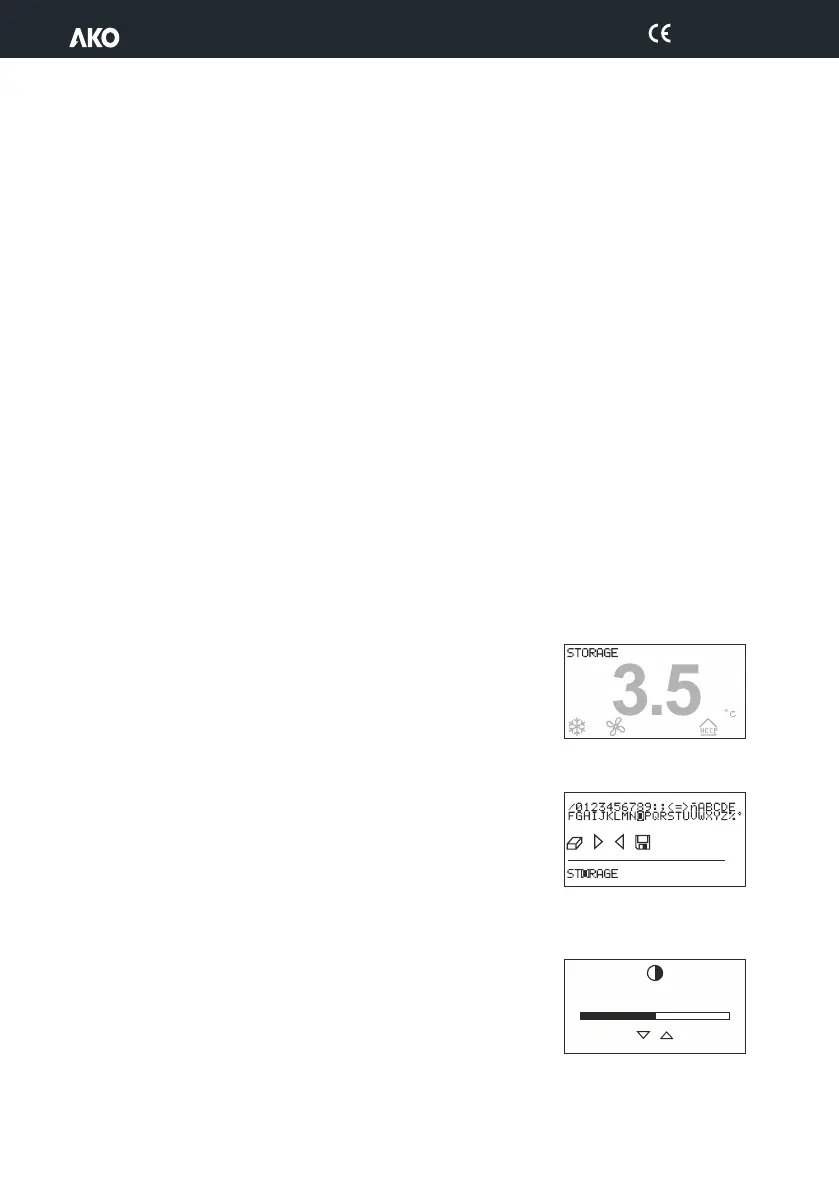

Equipment description
The unit's display can be customised including the description of the installation
with a maximum length of 25 characters.
The description will not be displayed if the Display mode parameter is configured
as “Probe 1 and clock”.
To edit the description, press the SET and O keys for 5 seconds.
Text editor operation
To change the description, press the SET + O keys at the same time.
The changes made during edition are displayed on the bottom of the screen.
Ÿ Use the P, O, N and Q keys to move around the different characters and
options available and the SET key to validate the selection.
Ÿ Select 9 to delete the character in grey.
Ÿ Select L or K to move around the text being edited.
Ÿ Select 8 to save the changes and exit the edition menu.
:
Contrast
To change the contrast of the screen, press the SET and O keys for 5 seconds.
Adjust the screen's contrast pressing the N and Q keys.
Press SET to validate.
50
15
