AKO PROPlus 3PH - Page 6

1565H041 Ed.03

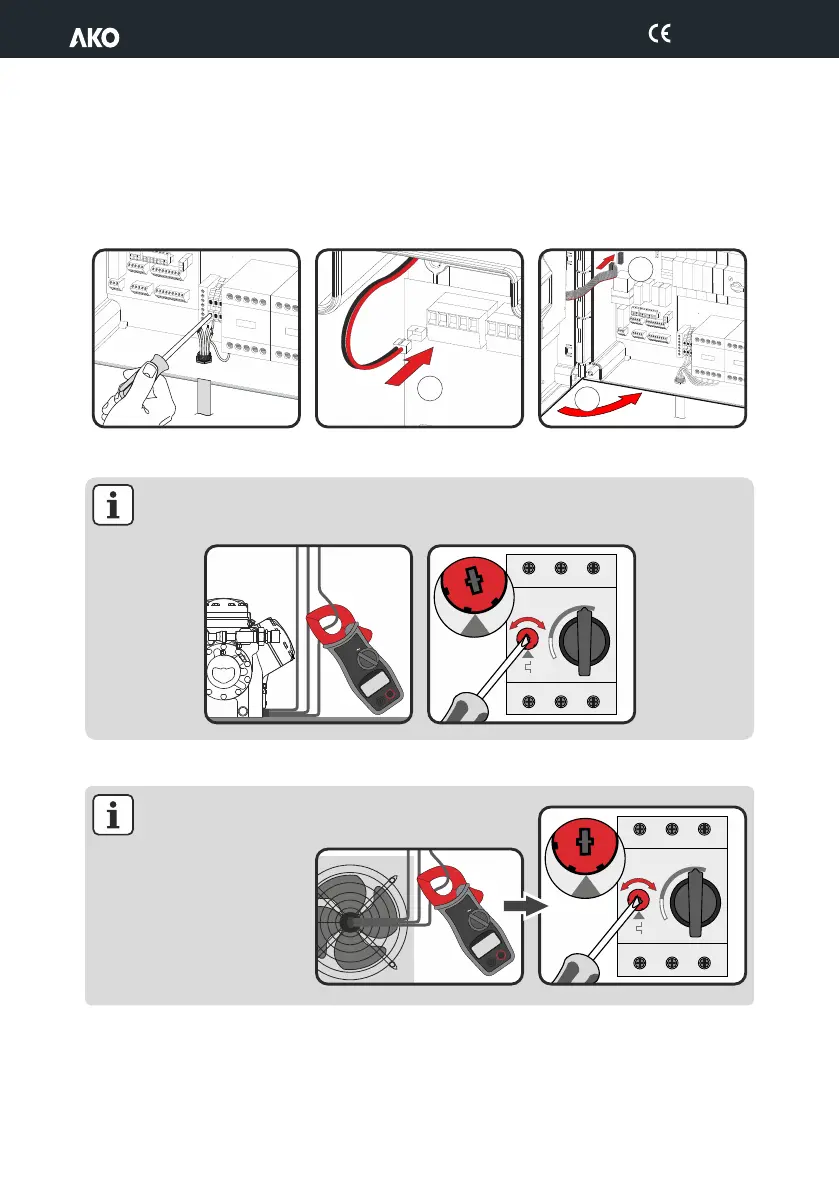

C.- Put the cover on, and make the wiring according to the diagrams enclosed.
Connect the battery (1), the control cable (2), adjust the motor guard (Q1/Q2/Q3) and close the cover (3).
Motor guard adjustment (Q1): Put an ammeter clamp into one of the compressor's conductors. Start
the compressor and check its consumption. Set the motor guard (Q1) according to the obtained value. The
set value should never be higher than the consumption indicated by the manufacturer.
1
11.5
A
A
2
3
I
O
10
16
10
16
Q1
AKO-1565x, AKO-1568x, AKO 1565x-1
AKO-15658, AKO-15659
Motor guard adjustment (Q3)
Q3: Put an ammeter clamp into one of the fan's conductors. Start the
fan and check its consumption.
Set the motor guard (Q3) according to
the obtained value.The set value
should never be higher than the
consumption indicated by the
manufacturer.
I
O
1
16
1
1.6
Q3
1.2
A
A
FAN
6
