Akuvox R20A User Manual


1
R20A
User Manual
1. Product Overview
1.1. Product Description
Akuvox R20A is a SIP-compliant, hands-free one button video
outdoor phone. It can be connected with Akuvox indoor monitors for
remote access controlling and monitoring. Users can communicate
with visitors via audio and video calls, and unlock the door if they
need. Users can also use RFID cards to unlock the door. It is
applicable in villas, offices and so on.

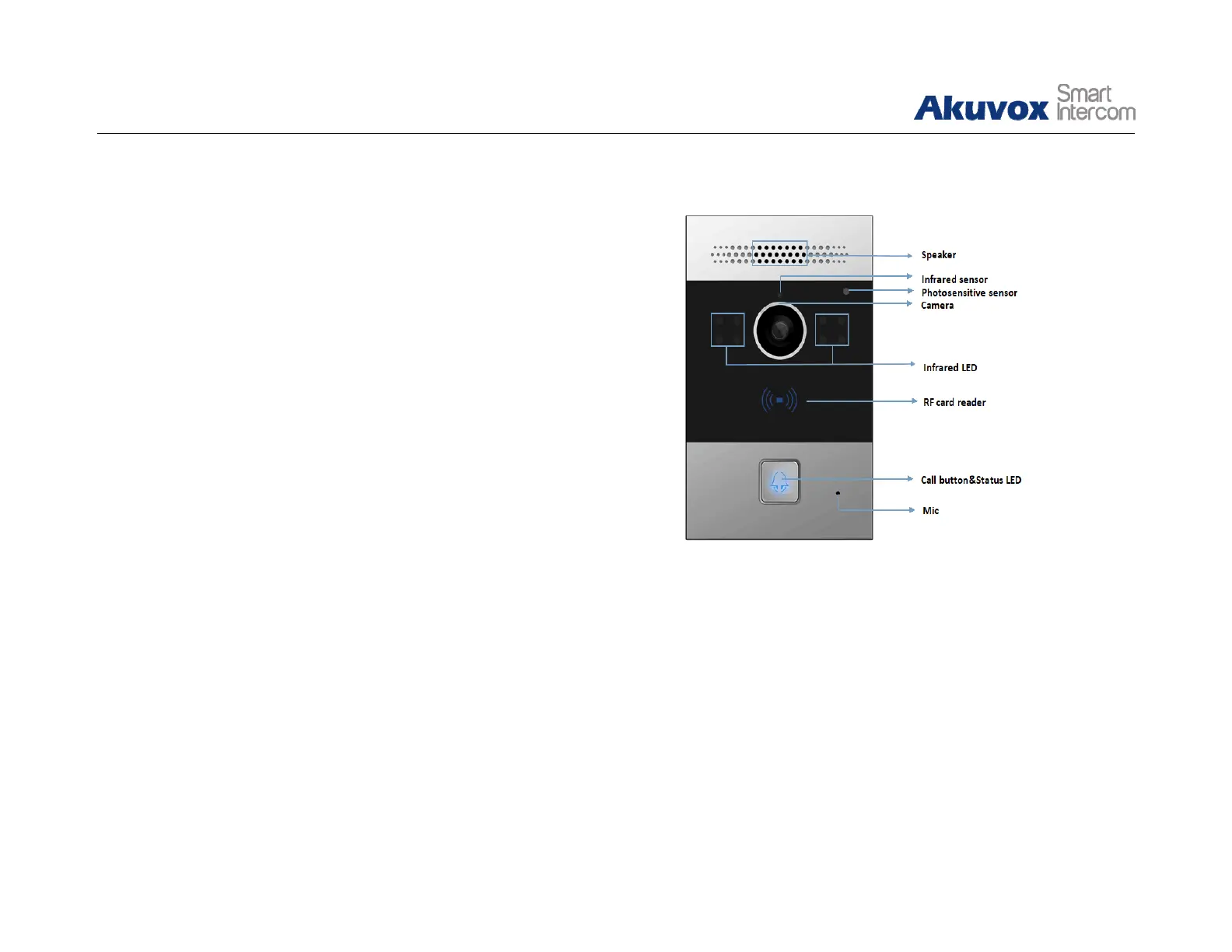

Figure 1.1 Product Description

Akuvox R20A Specifications

General

Audio	Built-in Microphone and Speaker
Installation	Wall-mounted
Ingress Protection	IP65
Card Reader	13.56MHz, Mifare
RS485	Yes
Camera	2MP
Network	10/100Mbps Ethernet
Protocols	SIP
Power	PoE or 12V DC
PoE	IEEE 802.3af
Relays	1
Input	2
