AL-KO ATC Operating Instructions

en

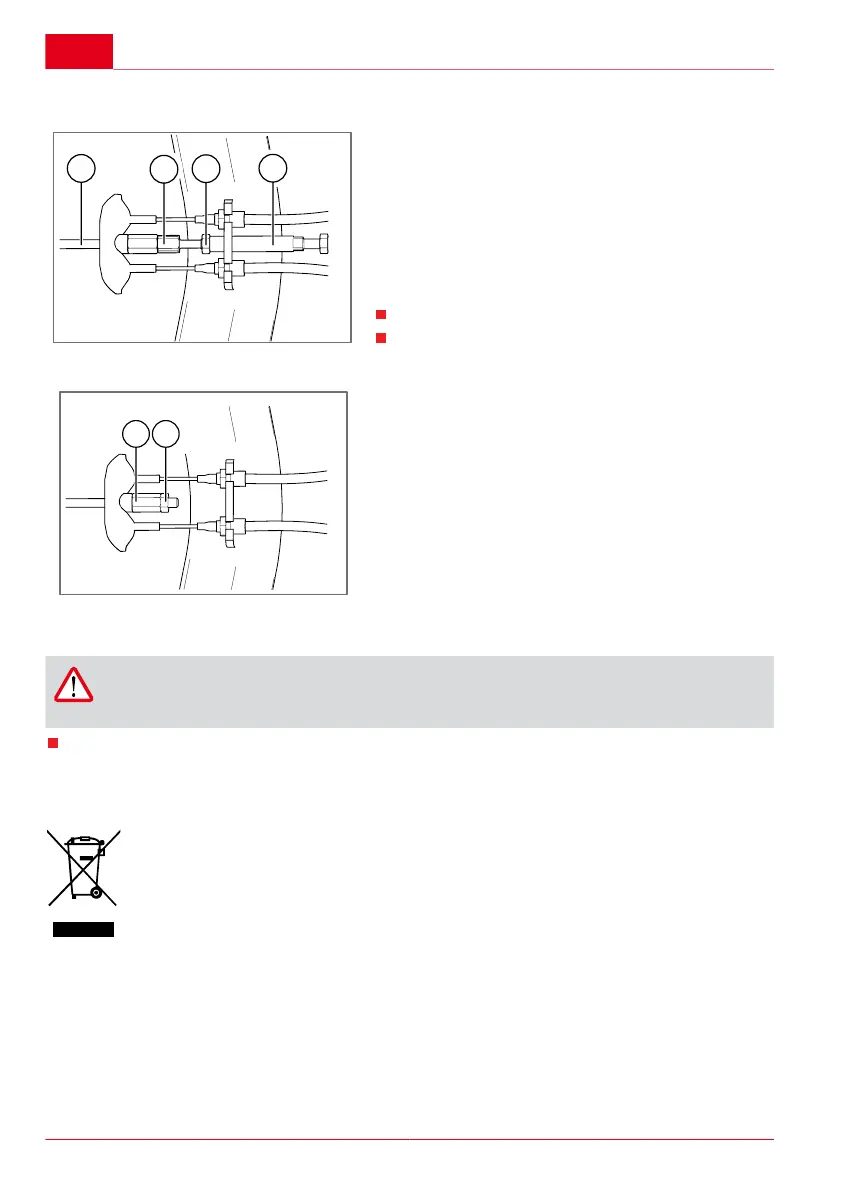

PERFORM EMERGENCY UNLOCKING
1 2
5
3
4
5
1. Pull out and forward the traction pipe in the direction
of travel.
2. Pull the handbrake strongly.
3. Slacken the guide pins M10 / M12 (2) off the brake
rod (1) and slide backwards.
4. If required, pull downwards the brake rod and extract
the guide pins from the plunger rod extension.
5. Counter the ball nut (4) with hexagon nut M10 (5).
torque:
M10: 46 Nm
M12: 75 Nm
REPAIR WORK
CAUTION!
Repair work may only be carried out by competent specialist workshops or our AL-KO Service
Centres.
If repairs are necessary, an extensive network of AL-KO Service Centres is available for our custo-
mers across Europe. www.alko-tech.com
DISPOSAL
Do not dispose of worn-out machines or spent batteries (including rechargeable
batteries) in domestic waste!
The packaging, machine and accessories are made from recyclable materials and must
be disposed of accordingly.
14 1655620_d
