GAS MULTIBLOCK MBC 700VEF MBC 1200 VEF SETTINGS
40
PRESSURE ADJUSTMENT
Pressure controller is provosionally set at the factory.
The setting value must be locally adapted to the
machine conditions.
1. Open protective slide.
2. Adjustment of setting values N and V is only
possible during operation. (Figure 3)
3. Check ignition reliability of burner.
4. At min. Performance: Set zero point adjustment N.
5. At max performance: Set ratio V.
6. If necessary, repeat settings 4 and 5. Check
intermediate values.
7. Seal setting screws with lead.
Warning : Ensure optimum combustion and
ignition reliability..
Screwing back:
After setting the required pressure point:
1. Close protective slide.
2. Secure protective slide closed position with a screw (Figure 4).

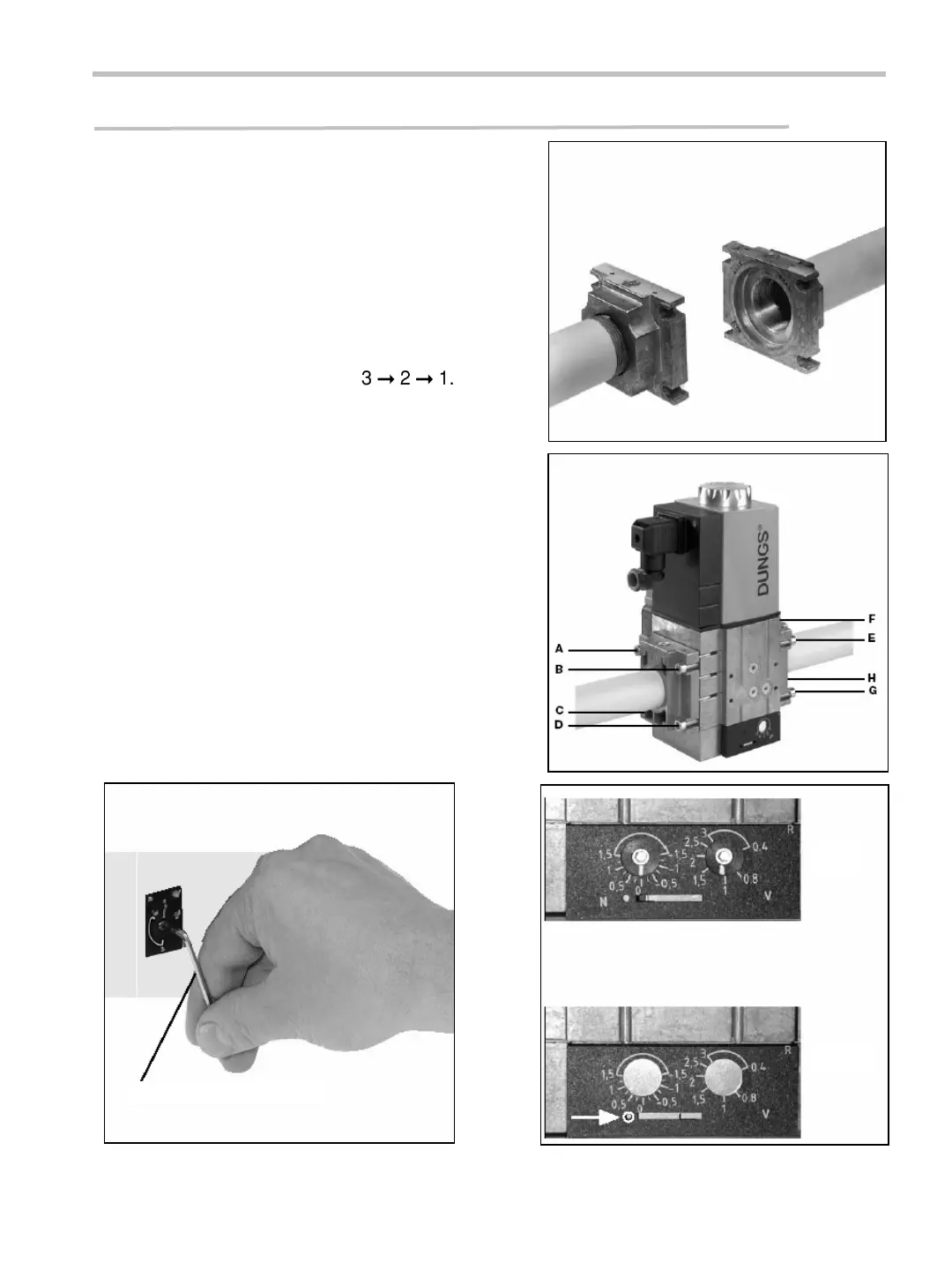

Figure 1
Figure 2
THREADED FLANGE VERSION MBC…VEF
ASSEMBLY & DISASSEMBLY
1. Mount flange on to tube line. Use appropriate sealing
agent (Figure 1).
2. Insert MBC...VEF. Note position of O-rigns.
(Figure 2)
3. Tighten screws A – H.
4. Perform leakage and functionality tests after
installation.
5. Deassembly in reverse order.
Figure 4
open
closed
Figure 3
Allen key No: 2.5
To Next Page
