Alcatel-Lucent Enterprise OS2360-P24 User Manual

OmniSwitch 2x60 Chassis Details Chassis and Power Supplies
page 3-8 OmniSwitch 2x60 Hardware Users Guide July 2021

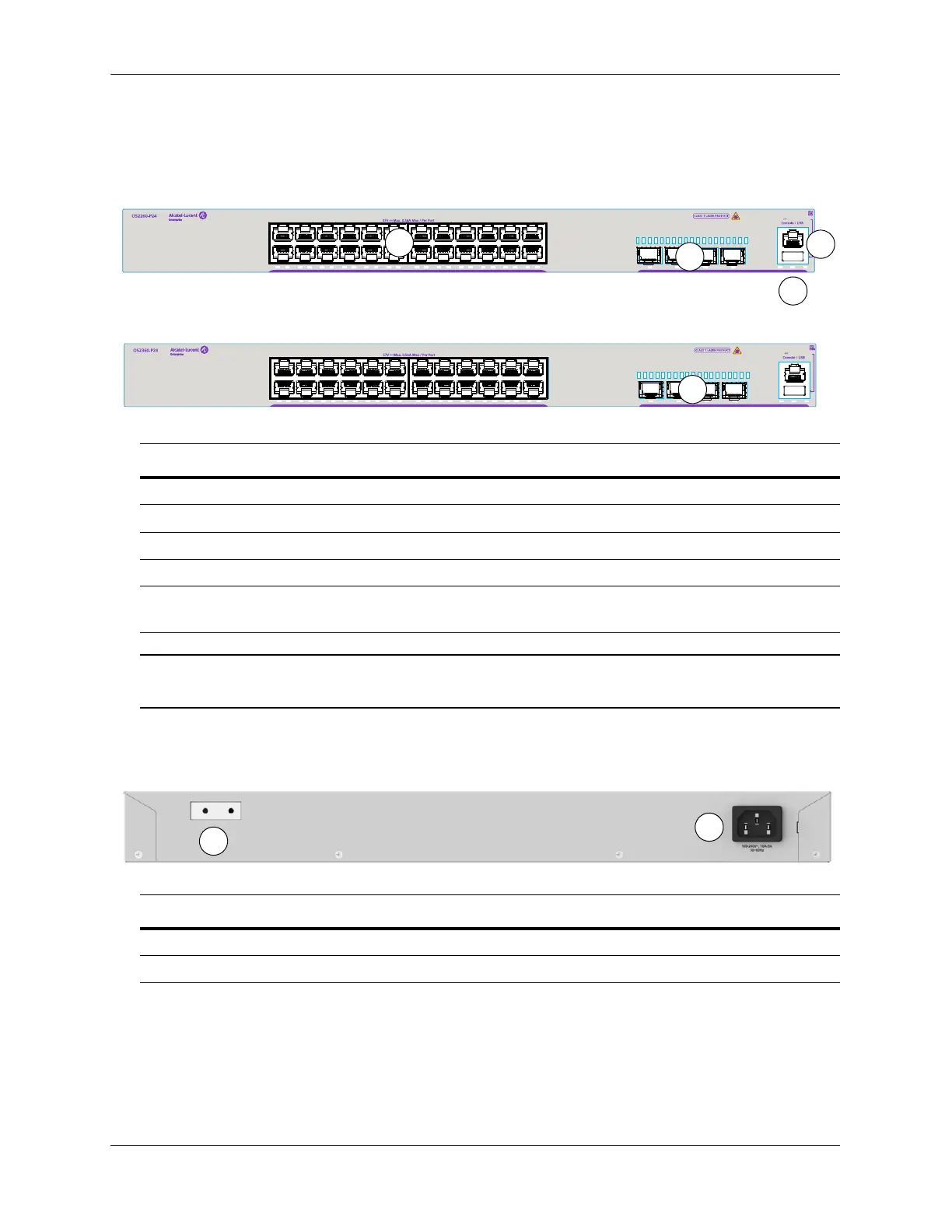

OS2x60-P24
OS2x60-P24 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS2x60-P24 Rear Panel
Item Description
A
Status LEDs
B
Console and USB port
C
(1-24) 10/100/1000 Base-T PoE (802.3at) ports
D (2260)
(25-28) SFP (1G) ports
D (2360)
(25-26) SFP (1G) ports
(27-28) SFP (1G) Uplink or SFP+ (10G) VFL ports
Item Description
A
Chassis Grounding Lug
B
Power Supply Connector (260W Internal AC Power Supply)
1 2 3 4 5 6 7 8 9 10 1112 1314 1516 1718 1920 2122 2324 25 26 27 28 OK VC
PWR
5.25V Max, 0.5A Max
Console / USB
D
A
B
C
5.25V Max, 0.5A Max
Console / USB
1 2 3 4 5 6 7 8 9 10 1112 1314 1516 1718 1920 2122 2324 25 26 27 28 OK VC
PWR
D
A
B
