Chassis and Power Supplies Rack-Mounting
OmniSwitch 2x60 Hardware Users Guide July 2021 page 3-21
Rack-Mounting
Refer to the following important guidelines before installing the chassis in a rack:
• Two people are required to rack mount the switch: One person to lift the chassis into position and one
person to secure the chassis to the rack using the rack mount screws.
• The chassis has rack-mount flanges that support standard 19-inch rack mount installations.
• Alcatel-Lucent Enterprise does not provide rack-mount screws. Use the screws supplied by the
rack vendor.
• To prevent a rack from becoming top heavy, it is recommended that you install the switch at the
bottom of the rack whenever possible.
Note. If you are installing the switch in a relay rack, be sure to install and secure the rack per rack manu-
facturer’s specifications.
Installing Rack Mount Flanges

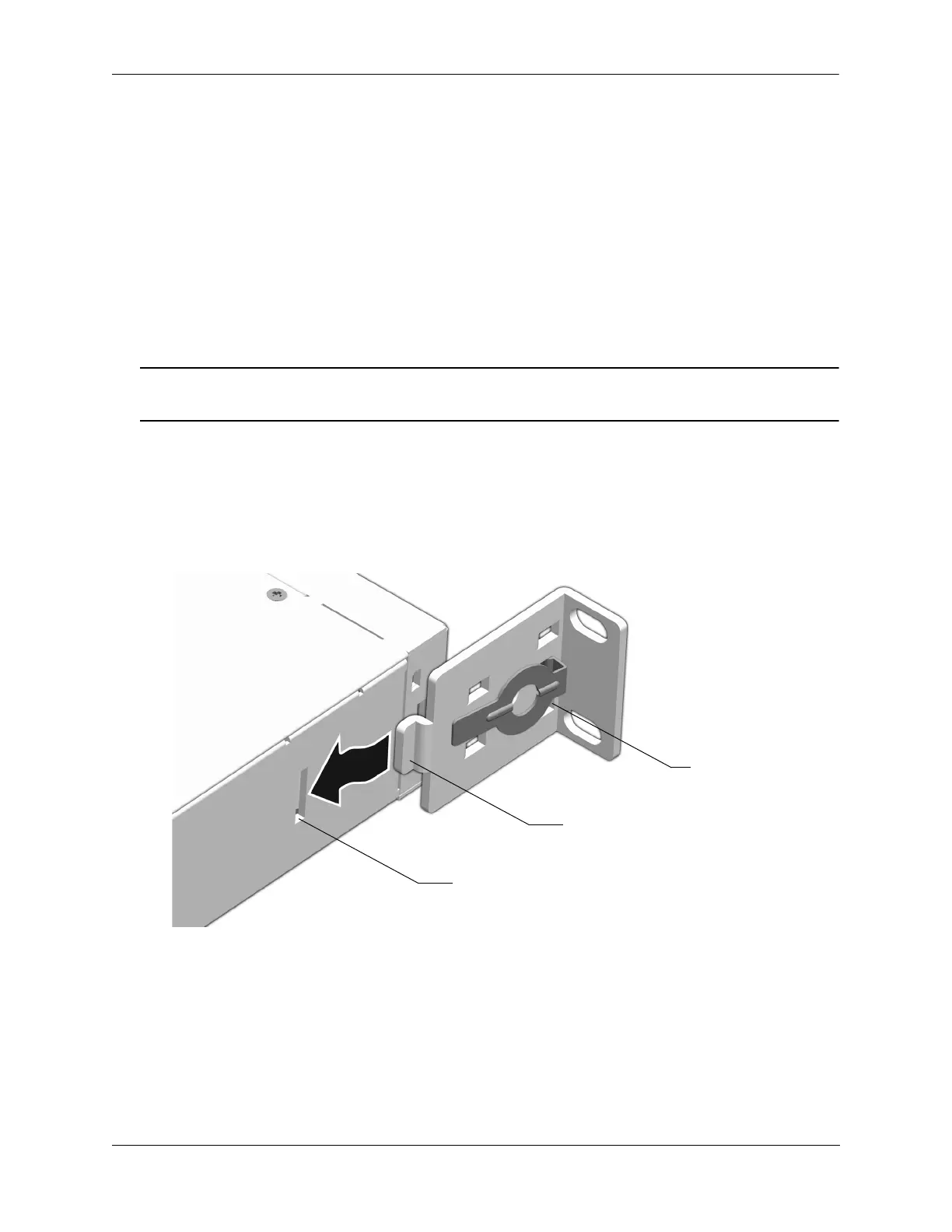

1 To install rack mount flanges, start by making sure the spring clip is in the out (disengaged) position.
2 Insert the tab into the chassis slot as shown.
Slot
Tab
Clip in “Out”
(disengaged)
position
