Connecting to the OmniAccess 5740 USG Console Port
Except on the first page, right running head:
Heading1 or Heading1NewPage text (automatic)
5
Alcatel-Lucent
Beta Beta
OmniAccess 5740 Unified Services Gateway Getting Started Guide
CONNECTING TO THE OMNIACCESS 5740 USG CONSOLE PORT
The OmniAccess 5740 USG has a RJ-45 console port connector. A RJ-45 - RJ-45
“roll-over” cable along with RJ-45 to DB-9 (female) adapter is provided with the
system to access the console port via a DTE (computer/terminal). For additional
connector details, refer to “Pin Connector Details for OmniAccess 5740 USG”
section in the “OmniAccess 5740 Unified Services Gateway Hardware Users
Guide”.

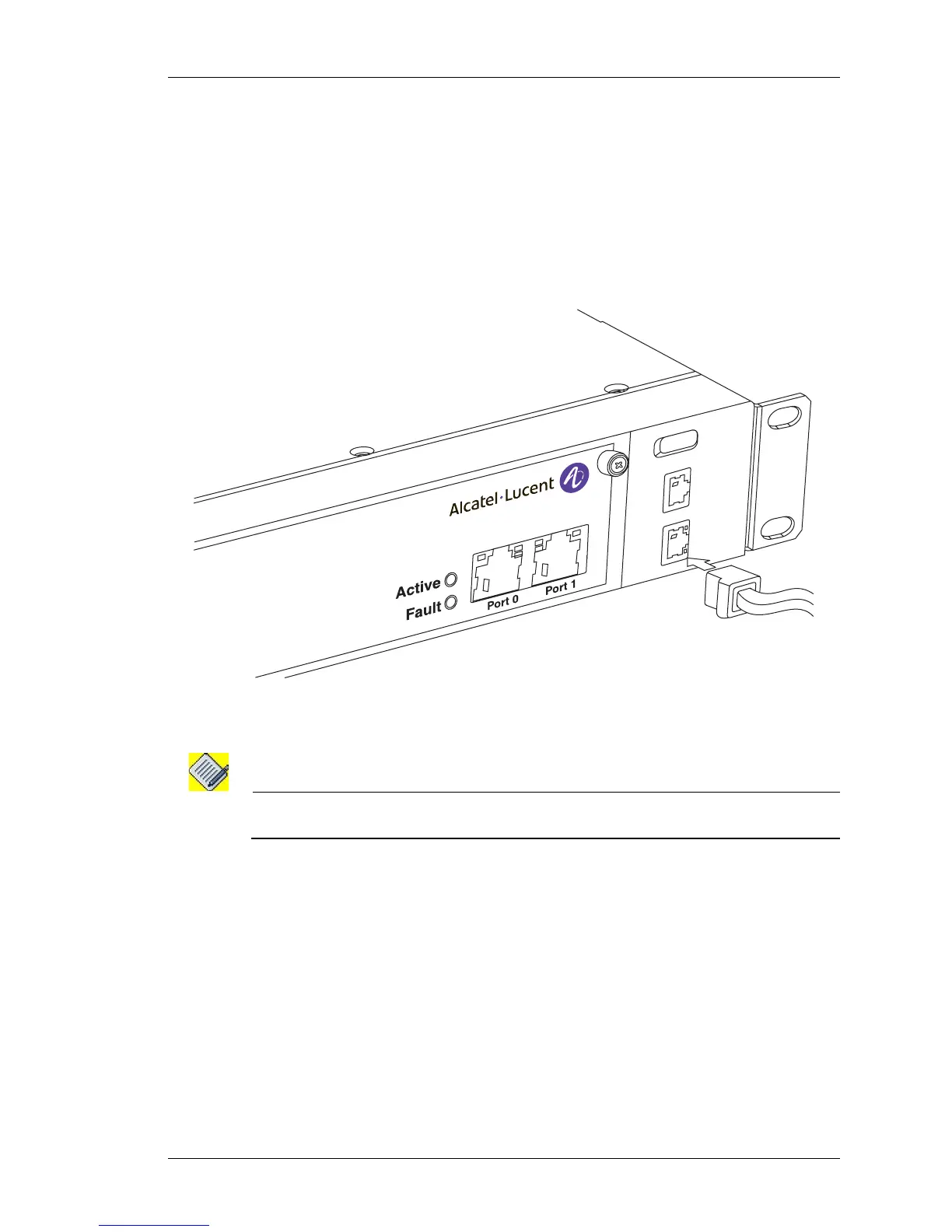

Figure 2: Connecting to the OmniAccess 5740 USG System Console
Note: Ensure that the OmniAccess 5740 USG is powered off before connecting the console
cable to the system.
OmniAccess
740
USB
Modem
Console
