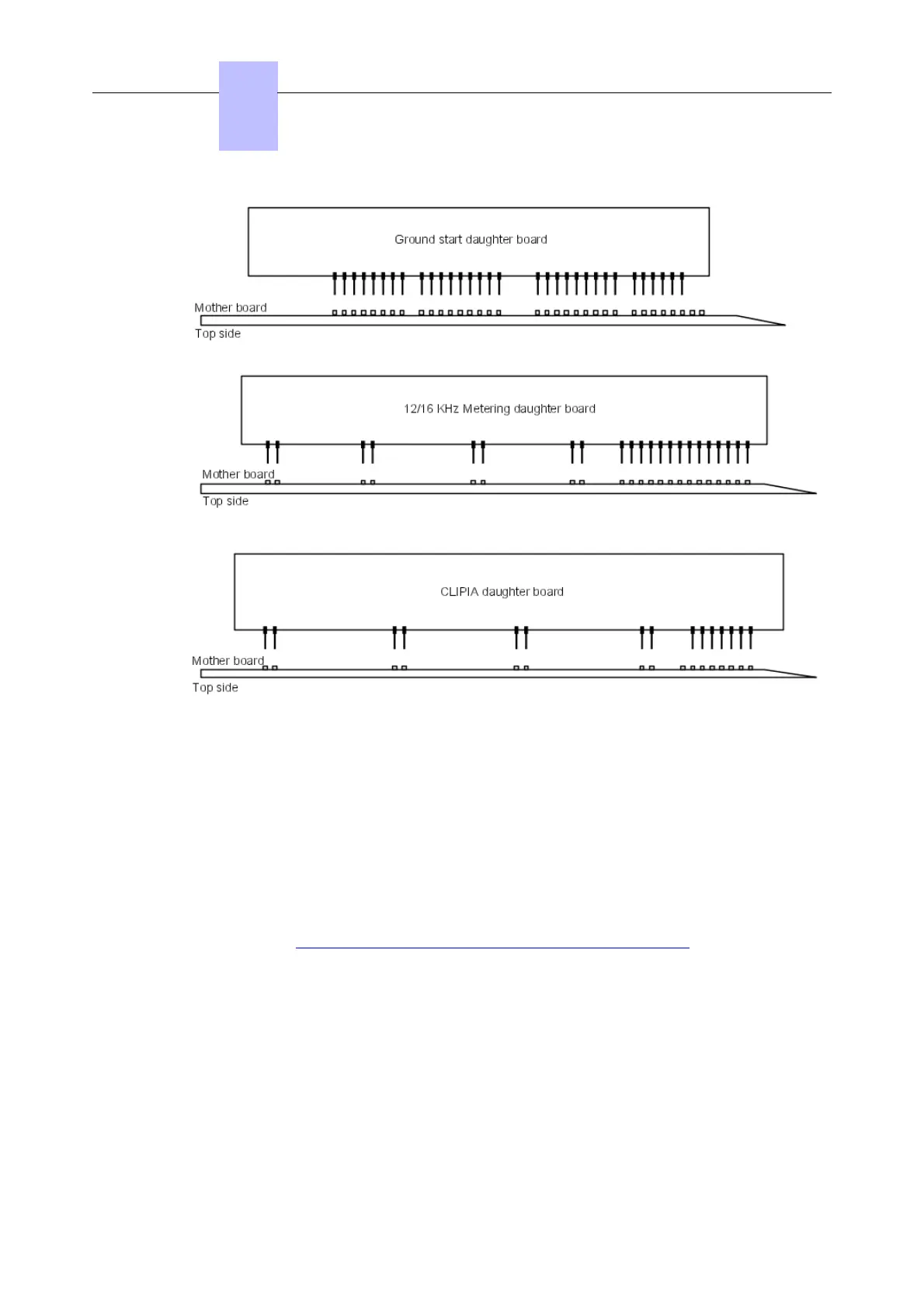

Figure 3.2: Details on the different daughter boards assembly
If the connection is:
- by cable, the distribution frame is carried out with a Type 1 cable with a distribution module
(see TY1 64PTSDIN cable - Cable with Module ) or without a distribution module (see TY1
64PTSDIN cable - Cable without Module ).
- by patch panel (VH cabinet only), the connection is carried out directly using the patch
panel: 2-wire 32-port module (see Patch Panel - 32 ports module - 32 ports module ).
The CLIPIA daughter board possesses different assemblies. For more information on these
assemblies, see NDDI2-2(LS/GS) - CLIPIA Daughterboard - Configuration .
3.2 Output pins on NDDI2–2 board
The following table gives the positioning of the output pins on the back panel rear side of the
NDDI2-2 board.
table 3.1: Output pins on NDDI2–2 board
