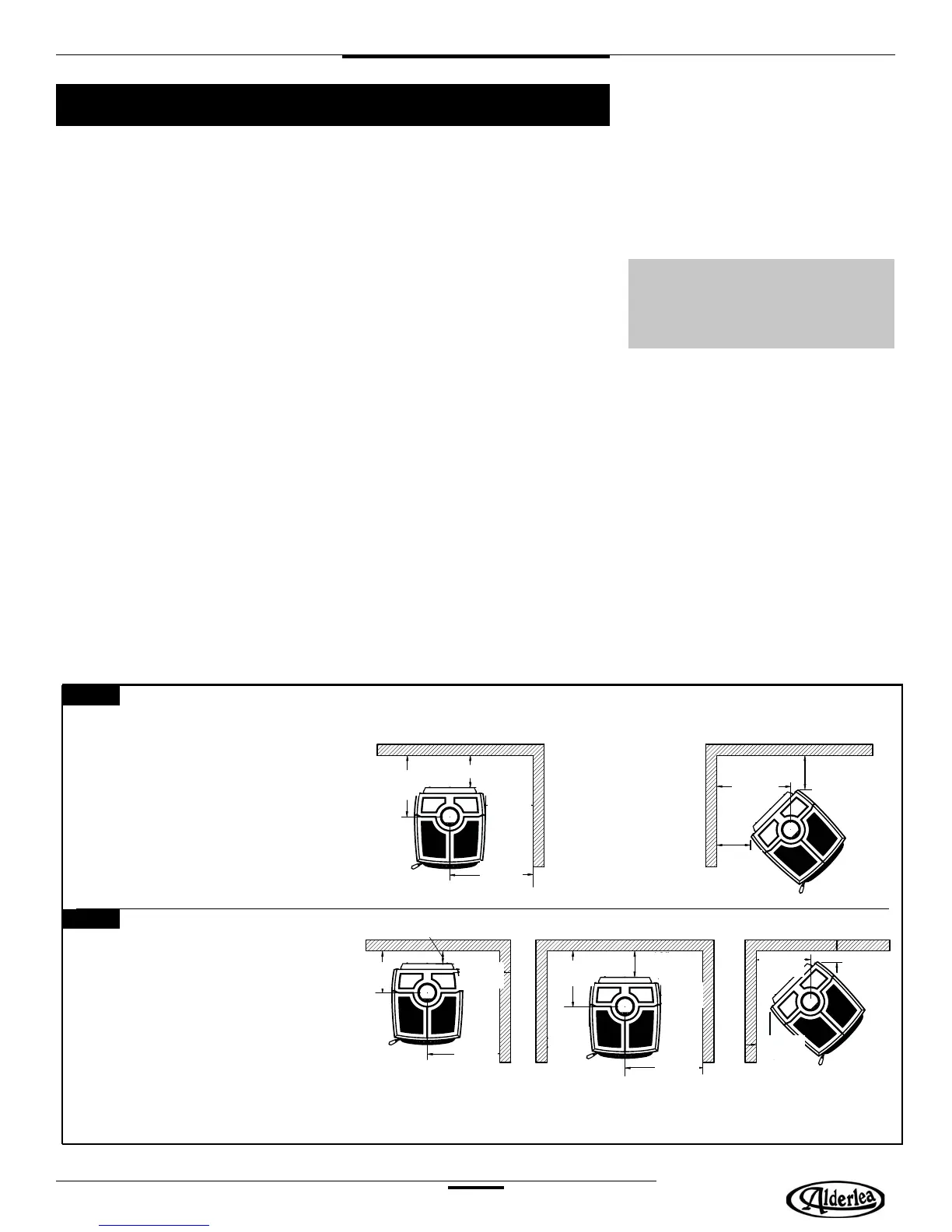

Alderlea T4 - Residential Installation Clearances; Clearances with Single Wall Connector; Clearances with Double Wall Connector

©PACIFIC ENERGY FIREPLACE
PRODUCTS LTD.
22"
559mm
12"
305mm
18"
457mm
30"
762mm
25"
635mm
11"
279mm
11"
279mm
18"
457mm
4"
102mm
4"
102mm
16"
406mm
16"
406mm
10"
254mm
20"
508mm
15"
381mm
28"
711mm
26"
660mm
14"
356mm
5"
127mm
Fig #2
SINGLE WALL
CONNECTOR
DOUBLE WALL
CONNECTOR
Fig #2a
15”
381mm
14”
356mm
20.75”
527mm
26”
660mm
7”
178mm
12”
12.75”
324mm
24”
610mm
10”
254mm
22.625”
575mm
3”
76mm
15.625”
397mm
11”
279mm
12”
305mm
16.75”
426mm
Minimum Clearances to Combustibles – Residential
ALCOVE: Min. Height 7 1/2 feet (2.29m)
Max. Depth 4 feet (1.22m)
10”
254mm
12.75”
324mm
24”
610mm
12”
305mm
3”
76mm
Do not connect this unit
to a chimney  ue serving
another appliance.
7
080515-24 ALT4
Clearances – Residential
1. This heater may be installed using a single-wall connector (smoke pipe) or listed double-
wall connector (see Mobile Home installation).
2. Clearances to combustible surfaces and materials using single-wall connector are shown
in Figure #2.
Clearances may be reduced with various heat insulating materials. Consult local  re
codes and authorities for approval.
3. Alternately, for close clearances, use a listed double-wall connector.
See Figure #2a.
Installation – Residential
Warning:
Under no circumstances is this heater to be installed in a makeshift or "temporary" manner.
It may be  red only after the stove is installed properly.
• DO NOT ATTEMPT TO CONNECT THIS HEATER TO ANY AIR DISTRIBUTION
DUCT.
• We recommend that our woodburning hearth products be installed and serviced by
professionals who are certi ed in the U.S. by the National Fireplace Institute
®
(NFI) as
NFI woodburning Specialists or who are certi ed in Canada by Wood Energy
Technical Training (WETT).
• Outside combustion air or fresh air into the room may be required in your area, consult
local building codes (see Combustion Air section).
BOTH CHIMNEY SYSTEM AND CONNECTOR MUST BE LISTED TO:
IN CANADA
IN CANADA
- ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY, IN USA
- ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY, IN USA
- UL-103 HT LISTED CONNECTOR AND CHIMNEY
- UL-103 HT LISTED CONNECTOR AND CHIMNEY
