CAUTION:
The structural integrity of the mobile
home  oor, wall, and ceiling/roof
must be maintained.
17 3/4"
451mm
12"
305mm
24"
610mm
8"
203mm
8"
203mm
20 5/8"
524mm
12"
305mm
Fig #3
DOUBLE WALL CONNECTOR

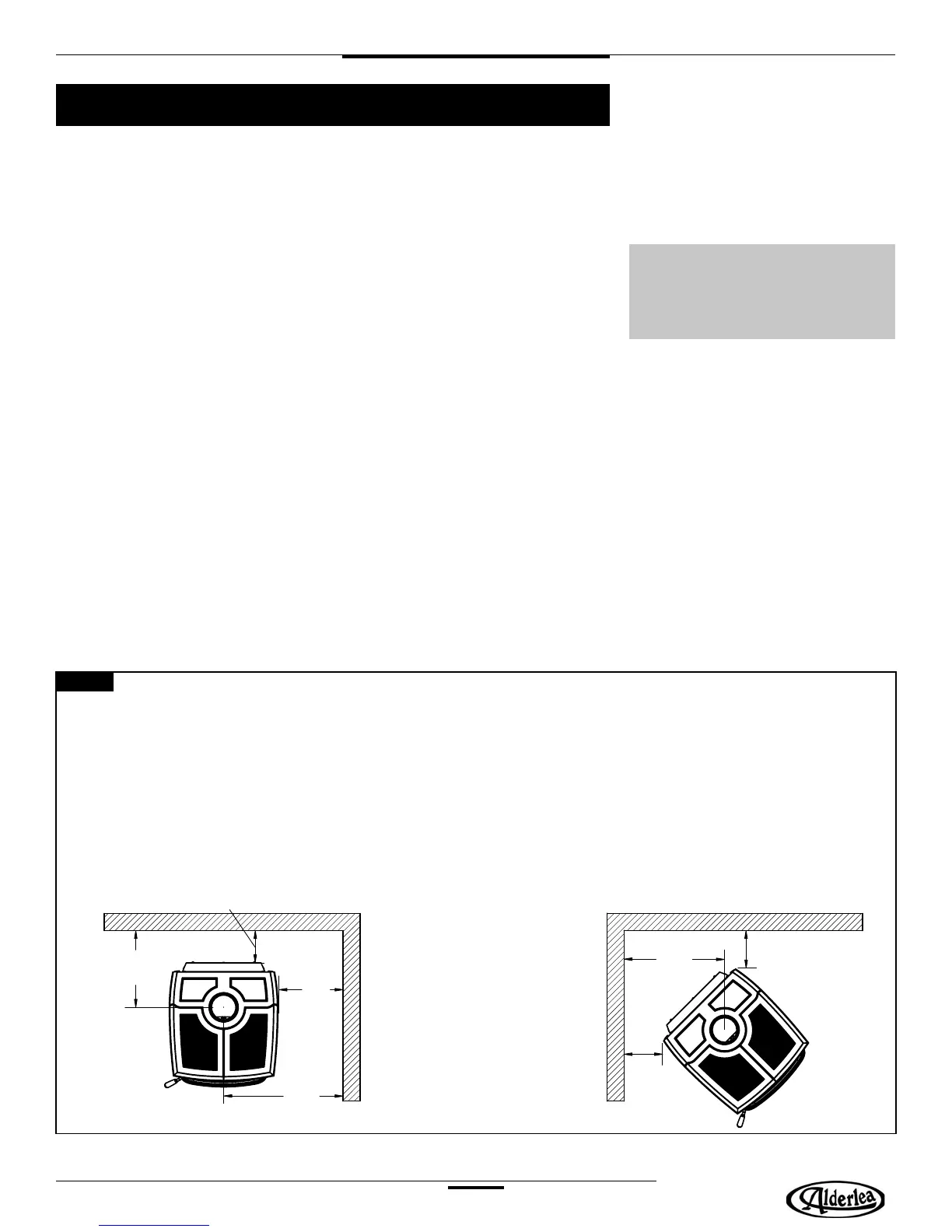

Minimum Clearances to Combustibles – Mobile Home
Warning:
Under no circumstances is this heater to be installed in a makeshift or "temporary" manner.
It may be  red only after the following conditions have been met.
• DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER
APPLIANCE.
• DO NOT INSTALL IN A SLEEPING ROOM.
Outside air supply must be used for Mobile Home installations (see Figure #4, Page 10.)
We recommend that our woodburning hearth products be installed and serviced by
professionals who are certi ed in the U.S. by the National Fireplace Institute
®
(NFI) as
NFI woodburning Specialists or who are certi ed in Canada by Wood Energy Technical
Training (WETT).
BOTH CHIMNEY SYSTEM AND CONNECTOR MUST BE LISTED TO:
IN CANADA
IN CANADA
- ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY, IN USA
- ULC S-641 LISTED CONNECTOR AND ULC-S-629 LISTED CHIMNEY, IN USA
- UL-103 HT LISTED CONNECTOR AND CHIMNEY
- UL-103 HT LISTED CONNECTOR AND CHIMNEY
Clearances – Mobile Home
Clearances to combustible surfaces and materials are shown below in Figure #3.
Clearances may be reduced with various heat insulating materials. Consult local  re
codes and authorities for approval.
NOTE: Longer chimney lengths and different pitch  ashings may be used. All other parts
listed must be installed (see Figure #4, Page 10). Install all components to the connector
or chimney manufacturer's installation requirements. Consult your chimney supplier for
installation advice.
