aldes H95 - Page 25

Residential HRV/ERV
25

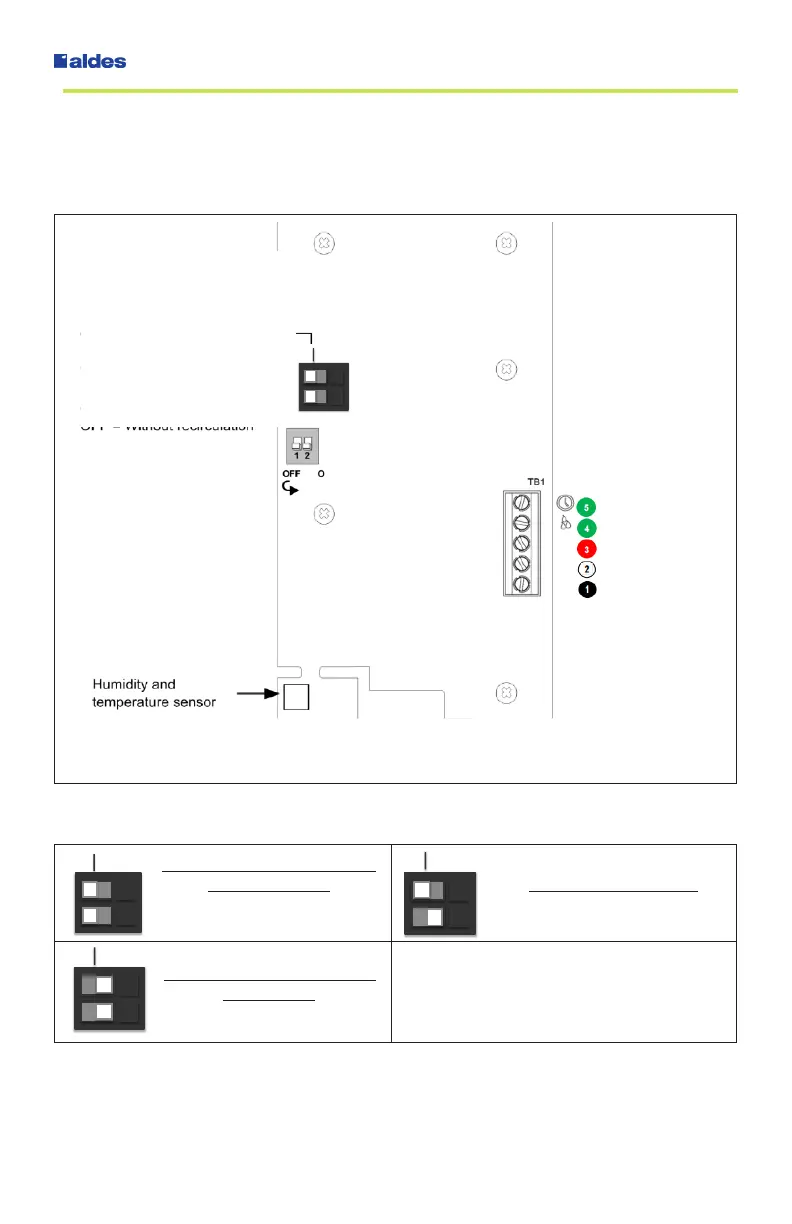

To connect the Digital Multifunction Control to the HRV/ERV, please refer to the following
diagram:
Back of face plate – simplied
Set the ON/OFF switches to correspond to your HRV/ERV model, as listed in the following
table:
With recirculation and with-
out free cooling
Models: H/E95, H/E120
H/E150, H/E190, H/E280
Without Recirculation
Models: H/E110
With recirculation and with
free cooling
Models: None
Connect each wire to the terminal board on the back of the controller face plate according
to the connection chart shown on the mounting plate. Then connect the 4-conductor
wire to the terminal board on the HRV/ERV according to the respective colors. The control
operates at 24V.
NOT USED
Air exchange system, green
Air exchange system, red
Air exchange system, COM
Air exchange system, 24 VAC
2
ON OFF
1
2
ON OFF
1
2
ON OFF
1
2
ON OFF
1
Dip switches
