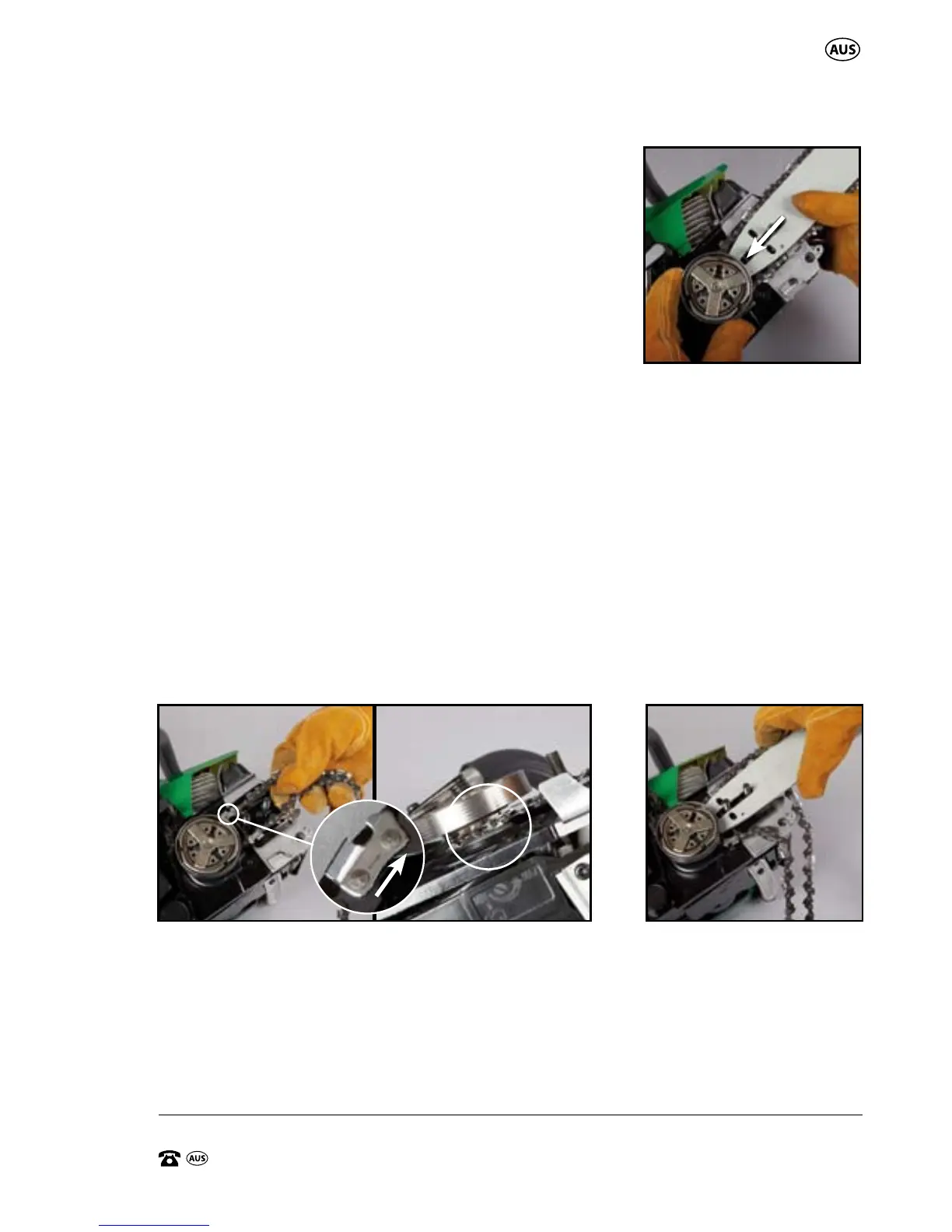

4. Push the guide bar (18) down towards the drive
sprocket (28), which will result in the chain (19)
loosening around the guide bar (18). (Fig D)
5. Remove the chain (19) from the guide bar
(18). Once the chain (19) is removed from the
guide bar (18), the guide bar (18) can be easily
removed by continuing to lift it up and over the
2 threaded studs holding it in position.
First Time Assembly, start here:
6. Place the chain (19) around the drive sprocket (28) loosely with the chain
links in the direction shown on the guide bar (18). (Fig E)
7. Insert the guide bar (18) into position over the 2 threaded studs, and on
a slight angle upwards, and push the guide bar (18) towards the drive
sprocket (28) to easily place the chain (19) around the guide bar (18).
(Fig F)
NOTE: AT this point, the chain tensioning pin (29) is NOT engaged on the
guide bar (18).
D.
E. F.
Assembly
To Next Page
