Saddle assembling/dismantling
WARNING!
Damage and injury risks!
If the saddle is removed from the saddle holder, the load will not
lift equally and stably, which can lead to personal injury and
material damage�
− Never use the car jack if the saddle and/or saddle sleeve are
not attached�
− Before and after each use ensure that the saddle is appropriately
placed in the saddle holder� If necessary, tighten the nut and the
bolt�
For assembling and dismantling the saddle a 19 mm socket
wrench and a 19 mm eye key is needed�

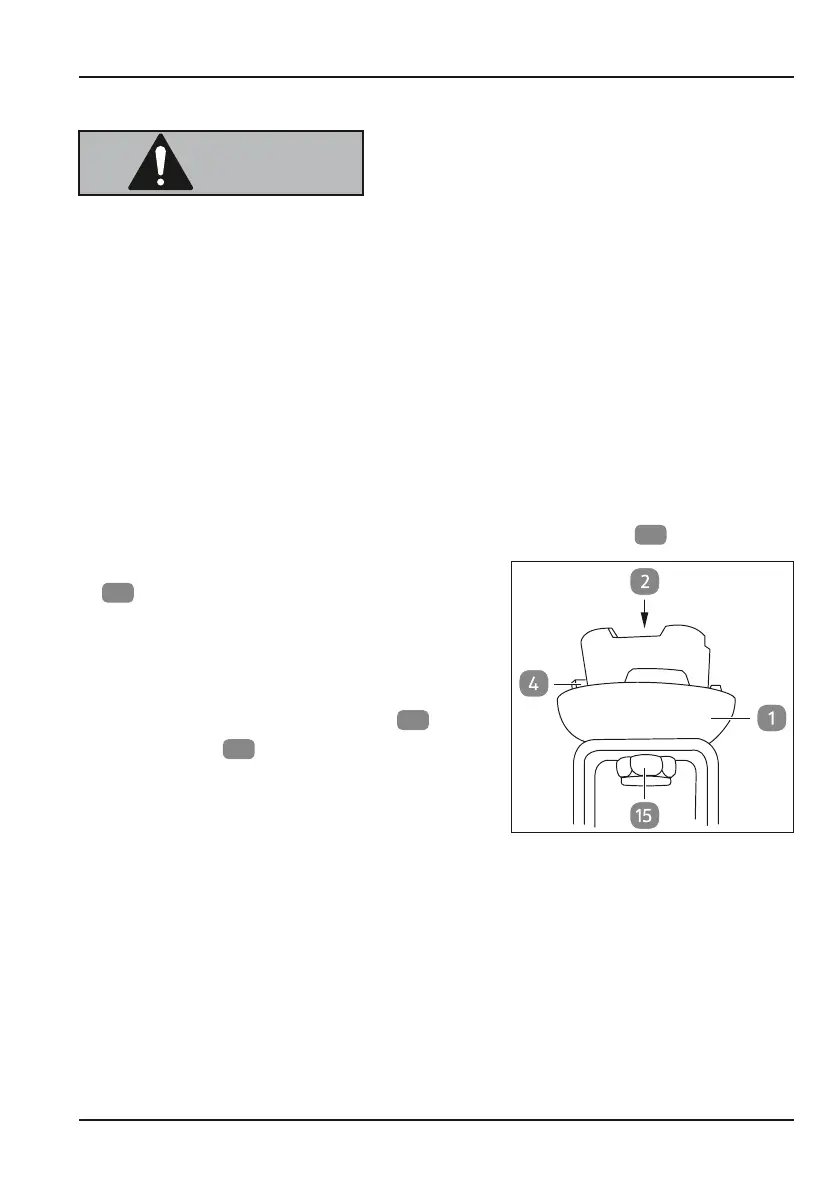

1� With the eye key hold the wing nut of the saddle
15
, whilst
unscrewing the bolt of the saddle
2
with the socket wrench�
2� Remove the wing nut of the saddle
and the bolt of the saddle from the
saddle structure�
3� Remove the saddle holder
1
from
the saddle
4
�
For assembling the saddle follow the
above-mentioned instructions in
reverse order�
