AFTER SALES SUPPORT
(toll free)
224cc 4 Stroke Petrol Lawn Mower
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL No.: SLM531 • 10/2020 • 10093
23
E1
Assembly
Assembly of the Side Discharge Chute
WARNING: Ensure the engine is NOT operating when tting the
side discharge chute (30).
Do not operate or have the engine running when
the side ejector cover (16) is opened and the
discharge chute (30) is not tted.
NOTE: The side discharge chute (30) is used to
distribute grass clippings from the side of the
mower while the mower is in use. To use this
function, the hard catcher (23) is NOT required to
be assembled on the lawn mower.

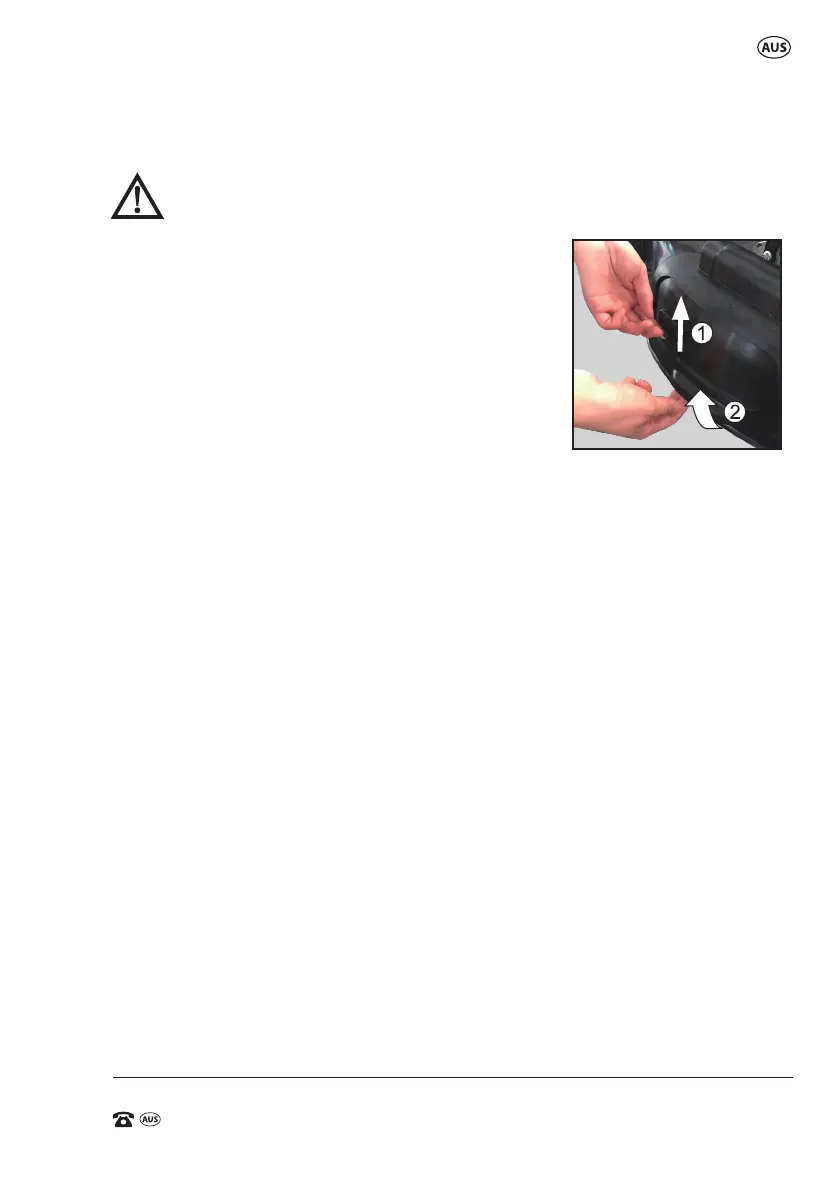

1. This side ejector has a lock to ensure it is secured
when not in use. Push the lock tab in an upwards direction to disengage
the lock, then using your other hand, lift up the side ejector cover (16)
to be able to position the side discharge chute (30) onto the side of the
deck of the lawn mower. (Fig. E1)
2. Place the side discharge chute (30) into position on the side of the deck,
by aligning the 2 top tabs on the side discharge chute (30) with the bars
on each side at the top of the side ejector cover (16), and then place the
2 top tabs underneath the bars to secure. (Fig. E2 & E3) Release the side
ejector cover (16). (Fig. E4)
3. To remove the side discharge chute (30), raise the side ejector cover
(16), and remove the side discharge chute (30). Lower / release the side
ejector cover (16).
NOTE: Ensure the locking tab on the side ejector cover (16) has engaged
on the deck to ensure there is no chance of it opening during operation.
This should not occur anyway as the cover (16) is spring loaded, however, it
is recommended to ensure the lock tab is engaged also.
NOTE: For the best performance in “side discharge chute” mode, insert the
mulching block (34).
